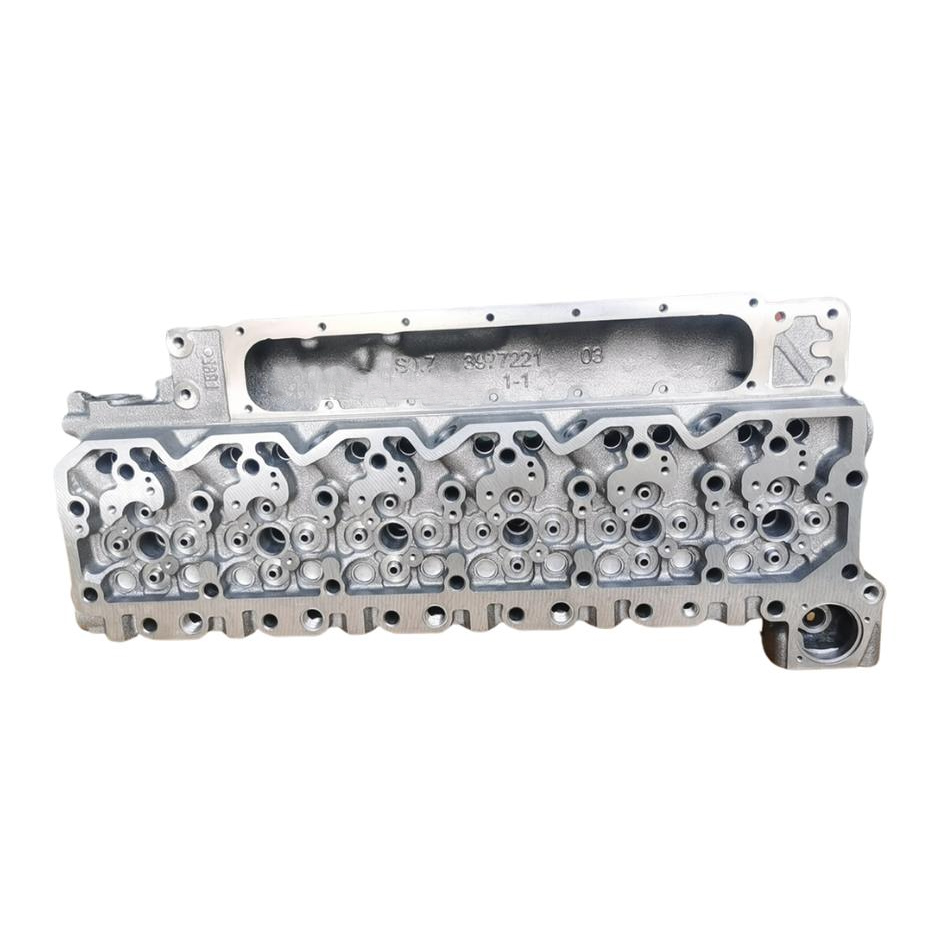

High-Precision Cummins 6BT Cylinder Head

The Cummins 6BT engine is a classic power source for construction machinery, commercial trucks, and generator sets. With its large 5.9L displacement, high torque, and durability, it is widely used in various heavy-duty operations, including earthmoving machinery, heavy-duty transportation, and engineering generator sets.

Hebei Keluo Construction Machinery's 6BT cylinder heads are compatible with the entire Cummins 6BT 5.9 series engine lineup, covering various engine types in construction machinery, diesel generator sets, heavy-duty trucks, and agricultural machinery. They are highly versatile heavy-duty engine parts available on the market.

The following problems with the equipment are all caused by aging and damage to the 6BT cylinder head, and can be repaired by directly replacing the cylinder head with this model:

1. High engine coolant temperature, water leakage in the cooling channels, and water leakage from the cylinder head surface.

2. Cylinder head surface deformation and poor sealing, leading to repeated burns of the cylinder head gasket.

3. Severe wear of the intake and exhaust passages, resulting in insufficient engine power and weak acceleration.

4. Loose or sunken valve seats, causing abnormal engine noise and idling vibration.

5. Sand holes and porosity in the cylinder head body, causing oil and coolant leakage.

Product Advantages:

1. Robust and Durable Material: Constructed from high-density cast iron in one piece, and subjected to high-temperature aging treatment to eliminate internal stress in the casting, effectively preventing deformation and cracking under long-term high-temperature vibration, suitable for harsh working conditions such as mining, infrastructure construction, and heavy-duty transportation.

2. Precision Machining and Strong Sealing: All surfaces are precision-milled by CNC, with minimal flatness error. Water and oil passages are finely polished, and hole positions are precisely aligned, eliminating leakage problems, improving engine combustion efficiency, and reducing overall fuel consumption. 3. Universal compatibility, no modification required. Strictly manufactured according to original factory specifications, compatible with all 6BT series base engines, turbochargers, and generator sets. Standard mounting holes allow for direct installation and zero-error adaptation.

4. Rigorous quality control, stable quality. Each product undergoes pressure sealing testing, flatness inspection, hole alignment verification, and visual flaw detection before leaving the factory, eliminating defective products with pinholes, looseness, or deformation. The failure rate is significantly lower than ordinary parts on the market.

V. Installation and Usage Precautions

1. Before installation, be sure to clean the cylinder block surface, water passages, and oil passages of debris to ensure a clean and flat contact surface.

2. It is recommended to replace easily worn parts such as cylinder head gaskets, valve stem seals, and sealing rings with new ones to avoid secondary leaks.

3. Cylinder head bolts should be tightened in stages according to standard torque and diagonal sequence; do not tighten them all at once.

4. After installation, perform idle break-in, checking for leaks of water, oil, air, abnormal noises, etc.

5. Avoid prolonged high-load operation during the break-in period to effectively extend the service life of the cylinder head and engine.
