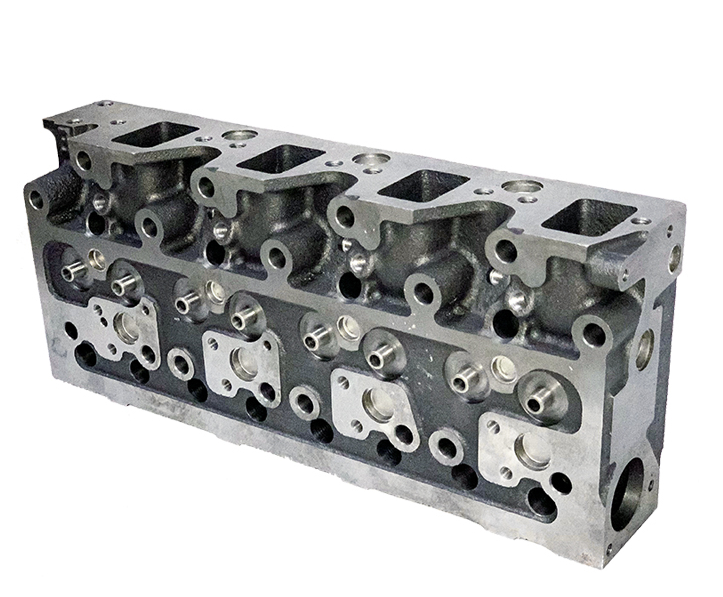

S4D95 Cylinder Head – Specialized Part for Komatsu Engines

The S4D95 cylinder head is a core component of the Komatsu S4D95 series direct-injection diesel engine. Renowned for its proven structural design and reliable performance across various operating conditions, this cylinder head is widely used in small-to-medium-sized construction machinery and industrial power equipment; it serves as a mainstream, essential part for the maintenance, assembly, and modification of the 95-series four-cylinder diesel engine.

This cylinder head is compatible with the entire S4D95 model family (including S4D95, 4D95L, and 4D95LE variants), designed for engines with a displacement of 3.26L, a 95mm bore, and a 115mm stroke. The engine features an inline four-cylinder, water-cooled, overhead-valve (OHV) configuration with two valves (one intake, one exhaust) per cylinder. Its structure is mature and reliable with a low failure rate, making it a perfect fit for excavators such as the Komatsu PC60-7 and PC120-5, as well as forklifts, compact loaders, diesel generator sets, and other industrial power equipment.

Cast as a single unit from high-strength cast iron, the S4D95 cylinder head offers exceptional resistance to high temperatures, high pressures, and deformation. It withstands the harsh operating conditions of high loads, extreme heat, and high combustion pressures over the long term without succumbing to structural damage such as cracking or warping. The cylinder head features standardized structural specifications, with an intake valve diameter of 29mm and an exhaust valve diameter of 27mm, ensuring balanced and stable gas exchange efficiency. Routine maintenance and adjustments adhere to OEM standards: intake valve clearance is 0.35 ± 0.08mm, and exhaust valve clearance is 0.50 ± 0.08mm.

As a core engine assembly, the S4D95 cylinder head performs multiple critical functions, including sealing the combustion chamber, managing gas exchange, facilitating heat dissipation and lubrication, and accommodating fuel system requirements. It seals the top of the cylinder and—in conjunction with the cylinder block and head gasket—forms a sealed combustion chamber capable of stably withstanding peak combustion pressures. Integrated intake and exhaust ports work with the valvetrain (including valves and rocker arms) to precisely control the engine's intake and exhaust cycles, ensuring smooth gas flow. Additionally, internal cooling water jackets and lubricating oil passages allow for rapid heat dissipation and continuous lubrication of moving valvetrain components, preventing failures caused by overheating or dry friction wear. During long-term operation, the most common issues affecting the cylinder head include cracking, planar warping/deformation, and valve seat wear.

Proper routine maintenance is crucial for extending the cylinder head's service life and ensuring stable overall engine performance. During assembly and servicing, cylinder head bolts must be installed in strict accordance with OEM torque specifications and tightening sequences to avoid improper practices such as uneven tightening. Regular inspection and adjustment of valve clearances help minimize abnormal wear in the valvetrain. Strict control of coolant temperature during operation prevents prolonged exposure to high heat, thereby addressing the root causes of thermal deformation and cracking. Additionally, regularly checking the cooling and lubrication systems—ensuring that water jackets and oil passages remain unobstructed—significantly reduces the likelihood of failure.

Overall, the S4D95 cylinder head features a mature design, broad compatibility, and low maintenance costs. Its reliability has been proven through long-term market use, and it is widely utilized in construction machinery and industrial power equipment. As one of the most essential, versatile, and cost-effective OEM components for the Komatsu 95 series engine, it offers exceptional practical value and compatibility.

The S4D95 cylinder head supplied by Hebei Keluo Construction Machinery Co., Ltd. has become a preferred choice for construction equipment maintenance, volume supply, and equipment modification. Adhering to a business philosophy of rigorous quality selection, precision engineering, and integrity-based service, the company has established a strong presence in the construction machinery parts sector. Leveraging a mature supply chain, it provides domestic and international customers with cost-effective, OEM-quality parts solutions, serving as a reliable partner for construction firms, repair shops, and equipment manufacturers alike.
