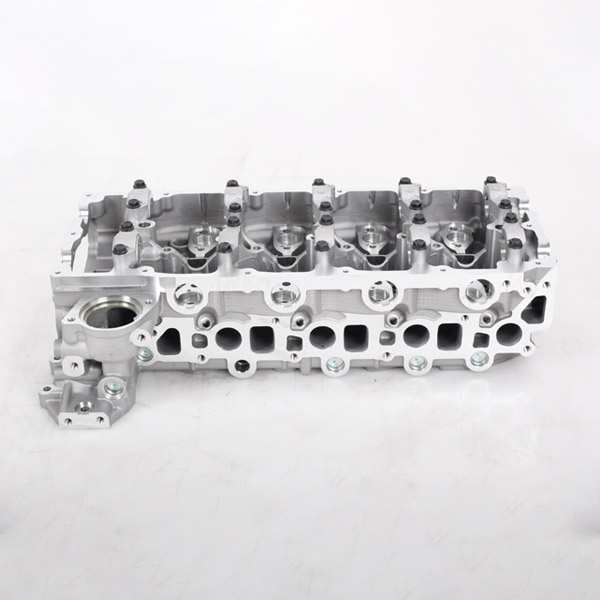

Universal 4JJ1 Cylinder Head for Excavators

In the 13-ton engineering excavator market, many mainstream models from Hitachi, Sumitomo, Case, and Sany share the classic Isuzu 4JJ1 powertrain. This engine, with its advantages of high torque at low RPMs, stable fuel consumption, and low failure rate, has become a benchmark power source for municipal earthmoving, infrastructure excavation, and demolition operations. However, the industry has long faced a thorny problem in maintenance: the mixed use of the same powertrain across multiple brands, the complex iteration of original factory cylinder head part numbers, the incompatibility of aftermarket parts, and the high return rate under heavy-duty conditions, resulting in a series of chain problems such as bloated maintenance inventory, high rework costs, and significant equipment downtime losses.

Unlike small-tonnage intermittent operation equipment, 13-ton excavators equipped with the 4JJ1 engine are the main revenue-generating machines on construction sites. Their daily operating hours, load intensity, and operational complexity far exceed those of conventional equipment, resulting in long-term high-intensity operation and unique wear characteristics:

Firstly, the high-pressure common rail power system has a high thermal load. The 4JJ1 engine features a high-pressure common rail fuel system, delivering strong power output while also resulting in higher combustion chamber heat density. Under continuous heavy loads, the cylinder head endures prolonged high temperatures and pressure. Ordinary aftermarket cylinder heads lack sufficient thermal fatigue resistance, making them highly susceptible to surface micro-deformation and cylinder head gasket failure.

Secondly, adapting to the diverse cooling structures of different engine bays presents challenges. The engine bay layouts, airflow paths, and cooling gaps of the four engine models—Hitachi ZX120-3/130-5, Case CX130B, Sumitomo SH130-5, and Sany 135-8—are all different. Commercially available cylinder heads have not been optimized for full compatibility, and a single component cannot meet the cooling needs of multiple models, easily leading to problems such as localized heat accumulation, high-temperature alarms, and water leakage.

Keluo Construction Machinery has specifically upgraded the 4JJ1 high-pressure common rail engine, rejecting vague industry terms about materials and processes. All upgrades and optimizations to this 4JJ1 cylinder head are precisely matched to the core characteristics of high-pressure common rail engines: high heat load, multi-condition impact, and multi-model compatibility. Performance upgrades are implementable, and fault improvements are directly verifiable:

1. High-density heat-resistant alloy base material, suitable for the high heat load of high-pressure common rail: Customized alloy cast iron ratio enhances the material's high-temperature resistance, deformation resistance, and thermal fatigue resistance. One-piece casting without seams, and complete stress-relief treatment at the factory eliminates casting internal stress, effectively resisting the continuous high-temperature operation impact of the 4JJ1 engine, fundamentally preventing core faults such as cylinder head warping, water channel cracking, and permanent deformation.

2. Multi-model compatible water and air intake design: Optimizing the internal water circulation path and air intake flow, balancing the differences in engine compartment heat dissipation among four major brands, solving the problems of localized heat accumulation and uneven heat dissipation, and significantly reducing the probability of high-temperature alarms; refined polishing of the intake and exhaust ports improves the intake efficiency and combustion completeness of the high-pressure common rail engine, reduces carbon buildup, stabilizes power output, and optimizes fuel consumption.

A core breakthrough in construction machinery maintenance is solving the fragmented compatibility problem with standardized parts. Facing the industry pain points of inconsistent compatibility, high-temperature susceptibility, and high repair rates of 4JJ1 engines in 13-ton multi-brand excavators, Hebei Keluo has moved beyond traditional parts replication thinking. With multi-model full-domain compatibility, high-pressure common rail operating condition-specific processes, and a rigorous quality control system, they have created a universal, highly durable, and low-cost cylinder head replacement solution.
