V1505-T
Kubota

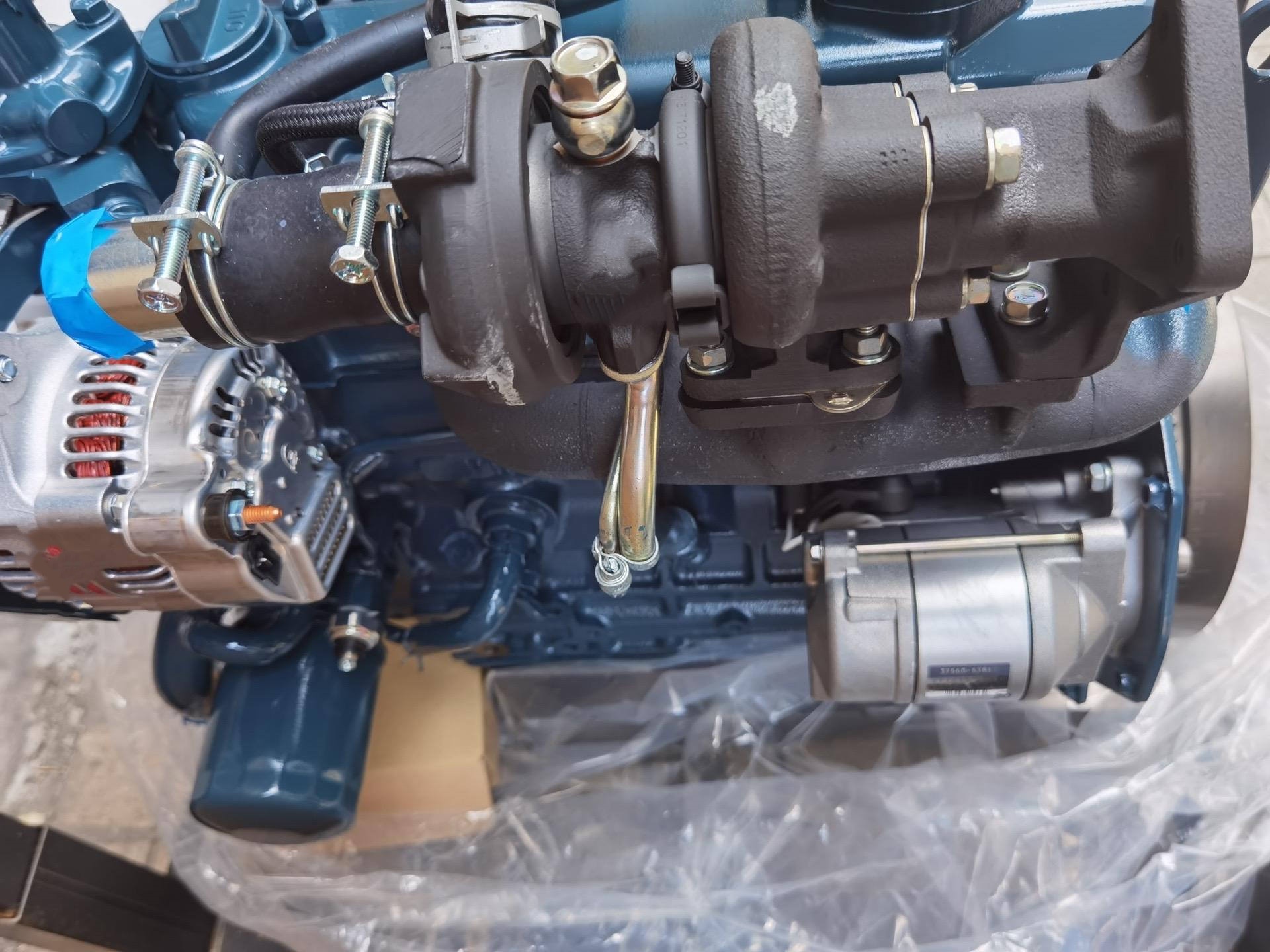

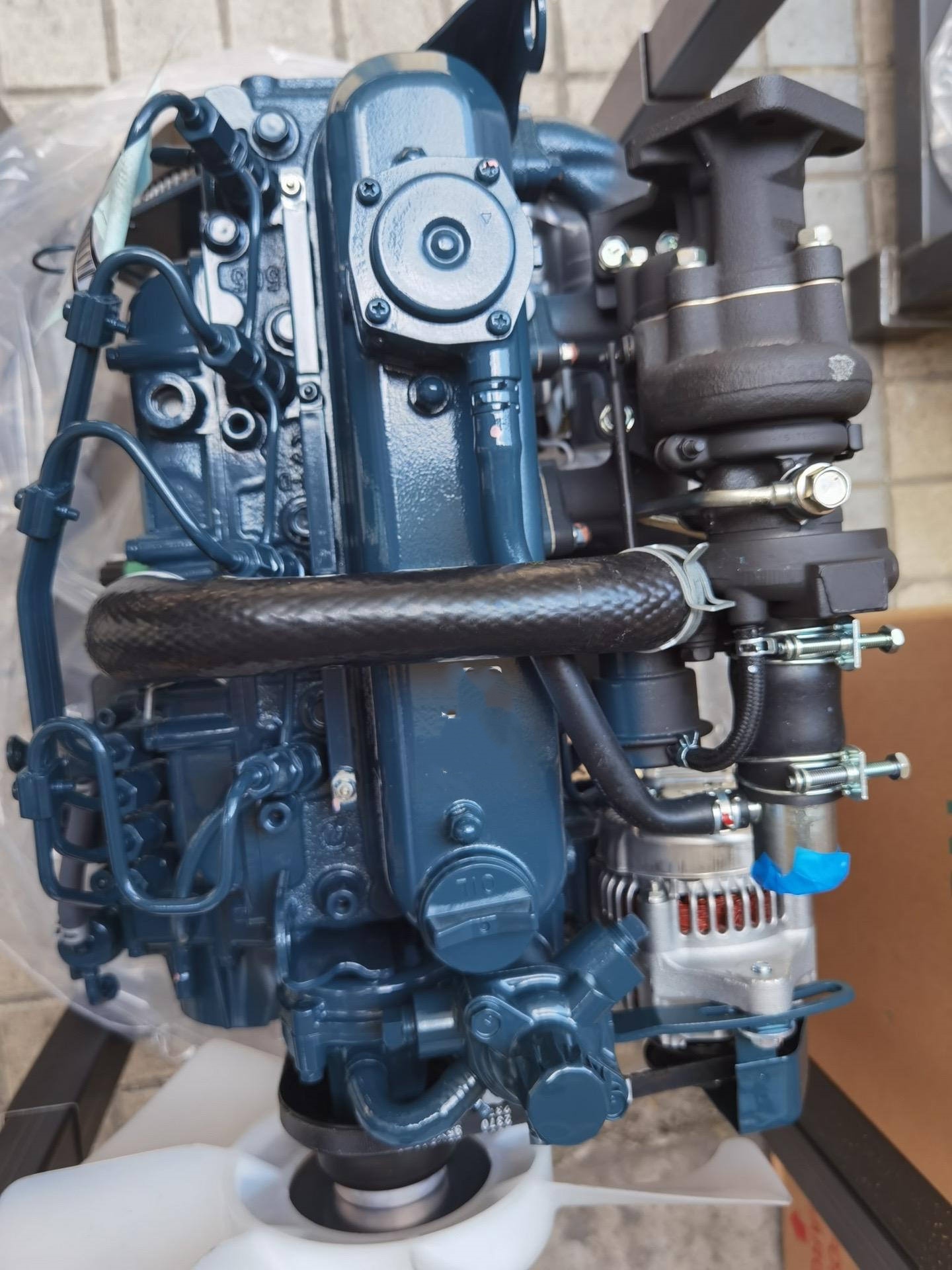

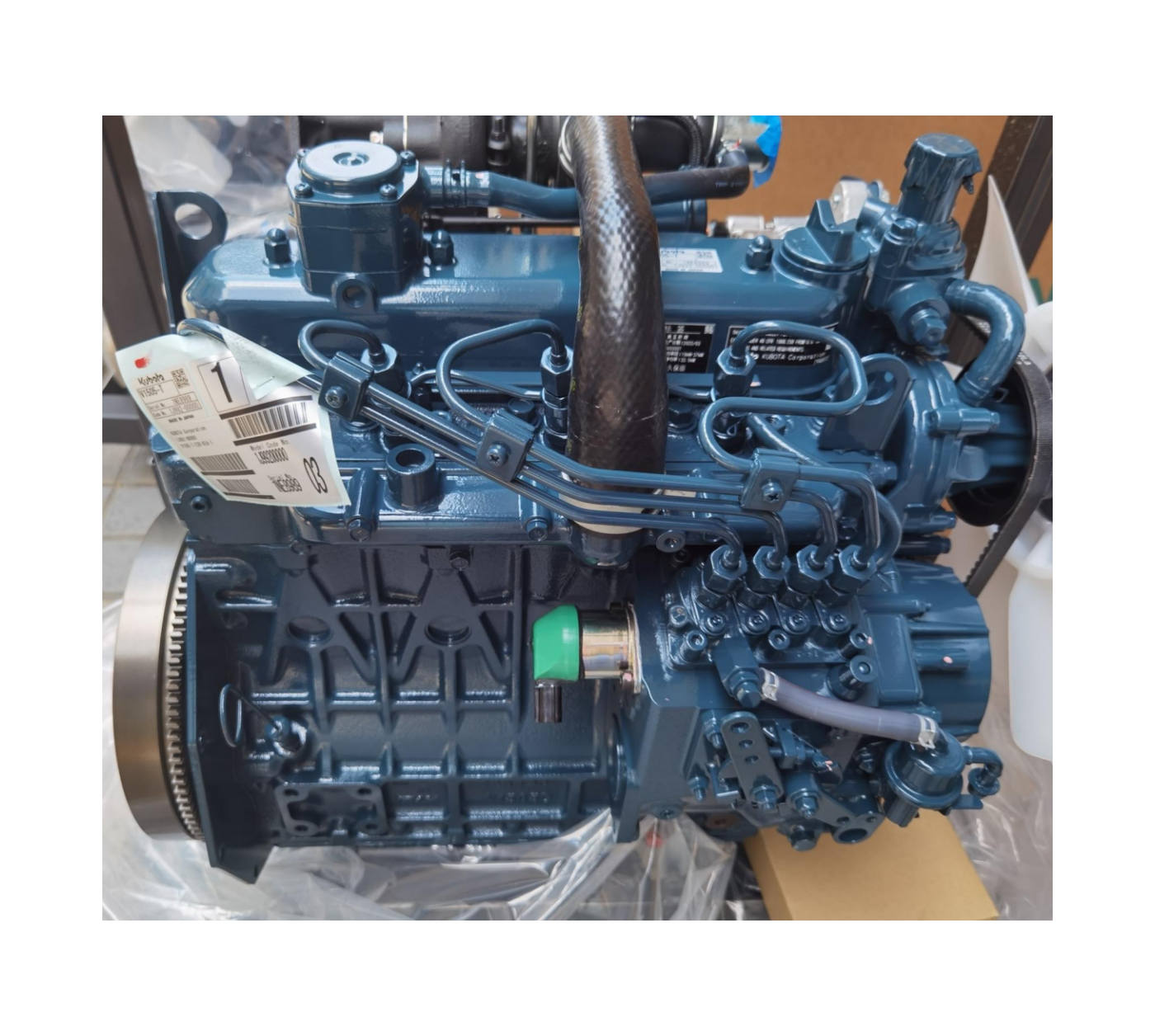

Product Overview: Kubota V1505-T Industrial Diesel Engine
The Kubota V1505-T is a compact, turbocharged, 4-cylinder diesel engine engineered to deliver an outstanding balance of power, fuel efficiency, and low emissions in a minimal footprint. As part of Kubota's renowned 05-M Series, this liquid-cooled industrial engine provides robust and reliable performance for a wide spectrum of demanding mobile and stationary applications, meeting the latest global emission standards without compromising on durability or operational ease.
| Feature | Specification |
|---|---|
| Model | Kubota V1505-T (e.g., V1505-M-T-E4) |
| Configuration | Vertical, In-line 4 Cylinder, 4-Stroke Diesel |
| Displacement | 1.498 L |
| Aspiration | Turbocharged |
| Rated Power (Gross) | 28.4 kW (38.1 hp) @ 2700 rpm |
| Net Power (with fan, alternator) | 34.1 kW (45.7 hp) @ 2700 rpm |
| Maximum Torque | 130.4 Nm (96.2 lb-ft) @ 1800 rpm |
| Emissions Compliance | EPA Tier 4 Final, EU Stage V |
The V1505-T is designed to be a versatile power source for compact machinery across multiple industries:
Construction Machinery: Powers mini and compact excavators, skid-steer loaders, and compact track loaders.
Agricultural Equipment: Used in compact tractors, specialty harvesters, and hay balers.
Power Generation: Serves as a reliable prime mover for diesel generator sets in the 30-40 kVA range for prime, standby, or mobile power.
Industrial Applications: Commonly found in air compressors, welders, pumps, and material handling equipment.
Advanced Emissions Control System: The engine seamlessly integrates a Diesel Oxidation Catalyst (DOC) and Diesel Particulate Filter (DPF) within a single, compact module. This system efficiently reduces particulate matter and hydrocarbons, ensuring compliance with stringent EPA Tier 4 Final and EU Stage V regulations with minimal maintenance.
High-Efficiency Combustion: Utilizing Kubota's refined combustion technology, it achieves excellent fuel economy and a broad torque curve. The optimized combustion, combined with precise electronic control, ensures responsive power delivery and lower overall operating costs.
Compact & Durable Design: Engineered for high power density, the V1505-T delivers substantial output from a small package. Its robust construction, including a gear-driven camshaft and a reinforced cylinder block, ensures exceptional durability and reliability in continuous, demanding work cycles.
Operator-Friendly Performance: The engine is designed for low noise and vibration, contributing to a better operating environment. Its layout facilitates easy access for routine maintenance checks, supporting higher machine uptime and productivity.
