A2F032
Rexroth

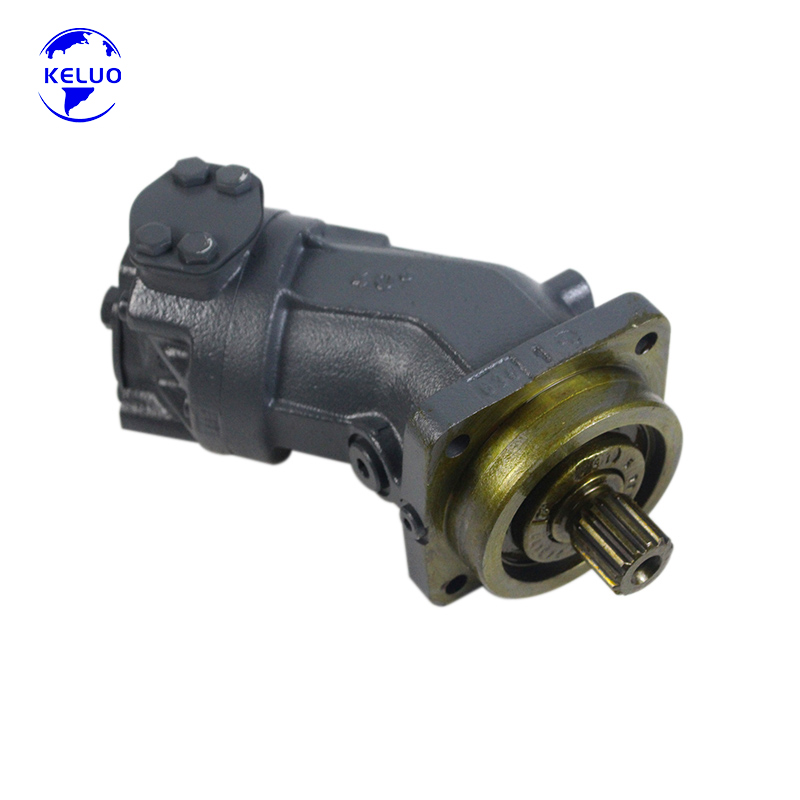

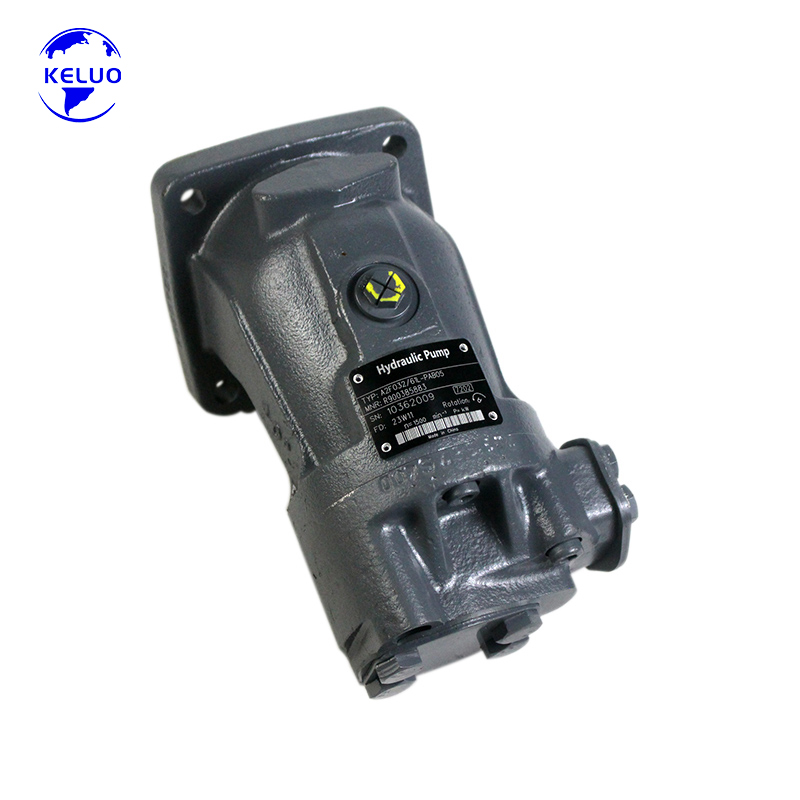

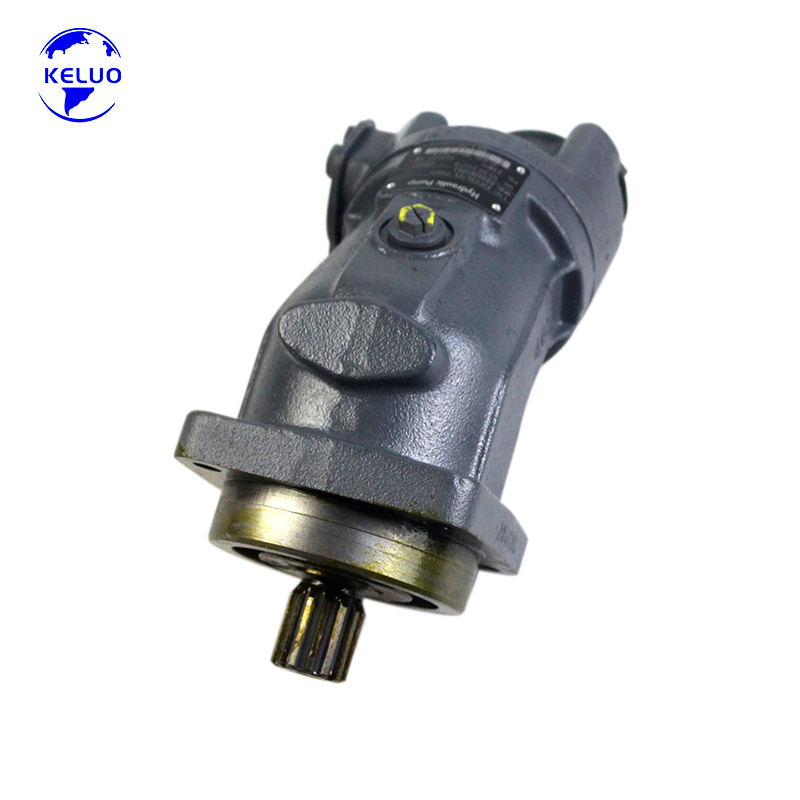

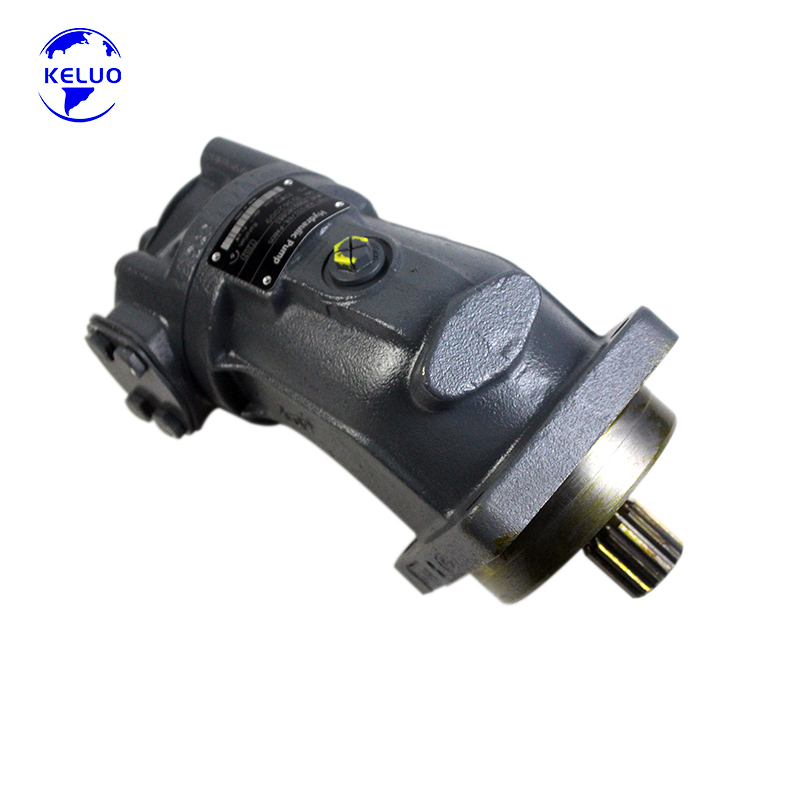

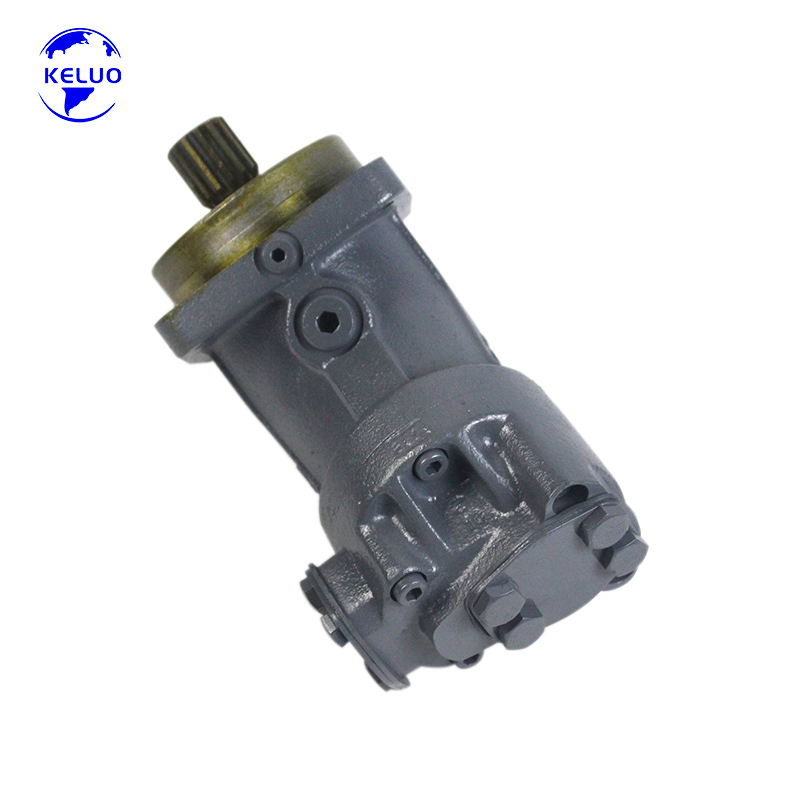

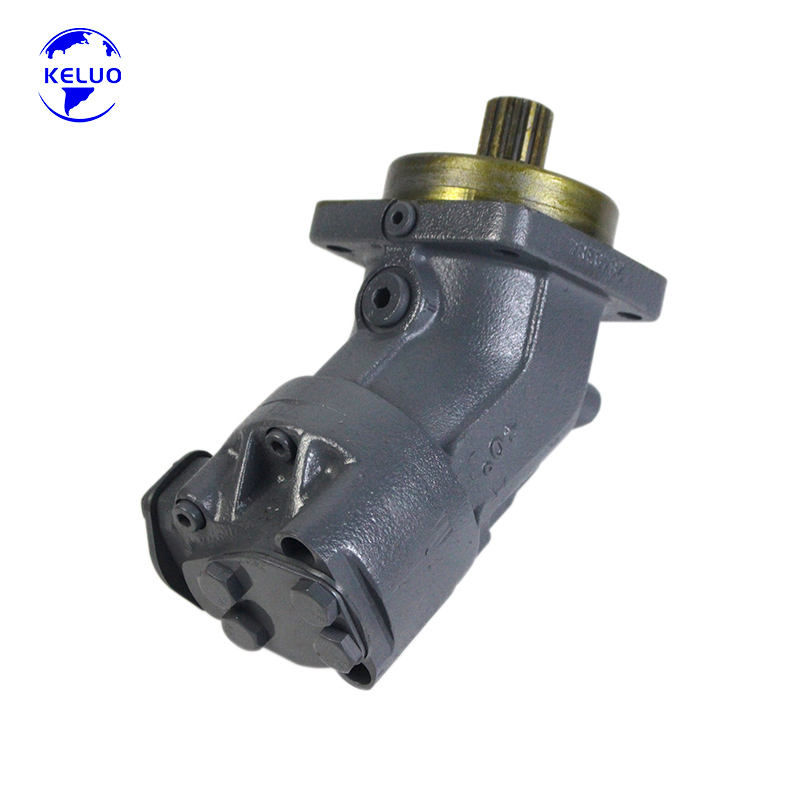

The Rexroth A2F032 is a premium, swashplate-type axial piston motor/pump designed for outstanding efficiency, reliability, and smooth operation in demanding hydraulic systems. As part of the renowned A2F series, this compact unit is engineered for continuous operation in closed-circuit applications, delivering precise control and durable performance for a wide range of mobile and industrial machinery.
| Feature | Specification / Description |
|---|---|
| Model Series | Rexroth A2F032 (Fixed Displacement, as a Motor/Pump) |
| Type | Swashplate Design, Axial Piston Unit |
| Nominal Displacement | 32 cm³/rev (Approx.) |
| Maximum Operating Pressure | Up to 450 bar (Continuous) / 500 bar (Peak) |
| Speed Range | High-speed capability, typical for series design |
| Port Configuration | SAE or metric flange ports (model dependent) |
| Key Application | Closed-loop hydrostatic drives, secondary control systems |
The A2F032 is a versatile hydraulic power unit ideal for systems requiring compact size and high power density:
Mobile Machinery: Commonly used in the travel drives of compact excavators, wheel loaders, agricultural tractors, and forestry equipment.
Industrial Applications: Serves as a reliable drive component in winches, conveyor drives, mixer drums, and industrial fan drives.
Specialized Systems: Suitable for test rigs and applications utilizing secondary control for energy recovery.
1. Optimized Swashplate Design for Smooth Operation
The pump utilizes a proven swashplate design with hydrostatically balanced pistons and a slipper pad design. This minimizes internal friction and wear, resulting in exceptionally quiet operation, high volumetric efficiency, and long service life even under continuous high-pressure duty cycles.
2. High Power Density and Compact Construction
Engineered for maximum performance in a minimal space, the A2F032 offers an outstanding power-to-weight and power-to-size ratio. Its compact design allows for flexible installation in space-constrained machine frames.
3. Robust Bearing Concept and Durability
A heavy-duty bearing design supports the rotating group, enabling the unit to handle high radial and axial loads from directly coupled gears or pulleys. This robust construction ensures reliable operation and high resilience against shock loads common in mobile equipment.
