3406
Caterpillar

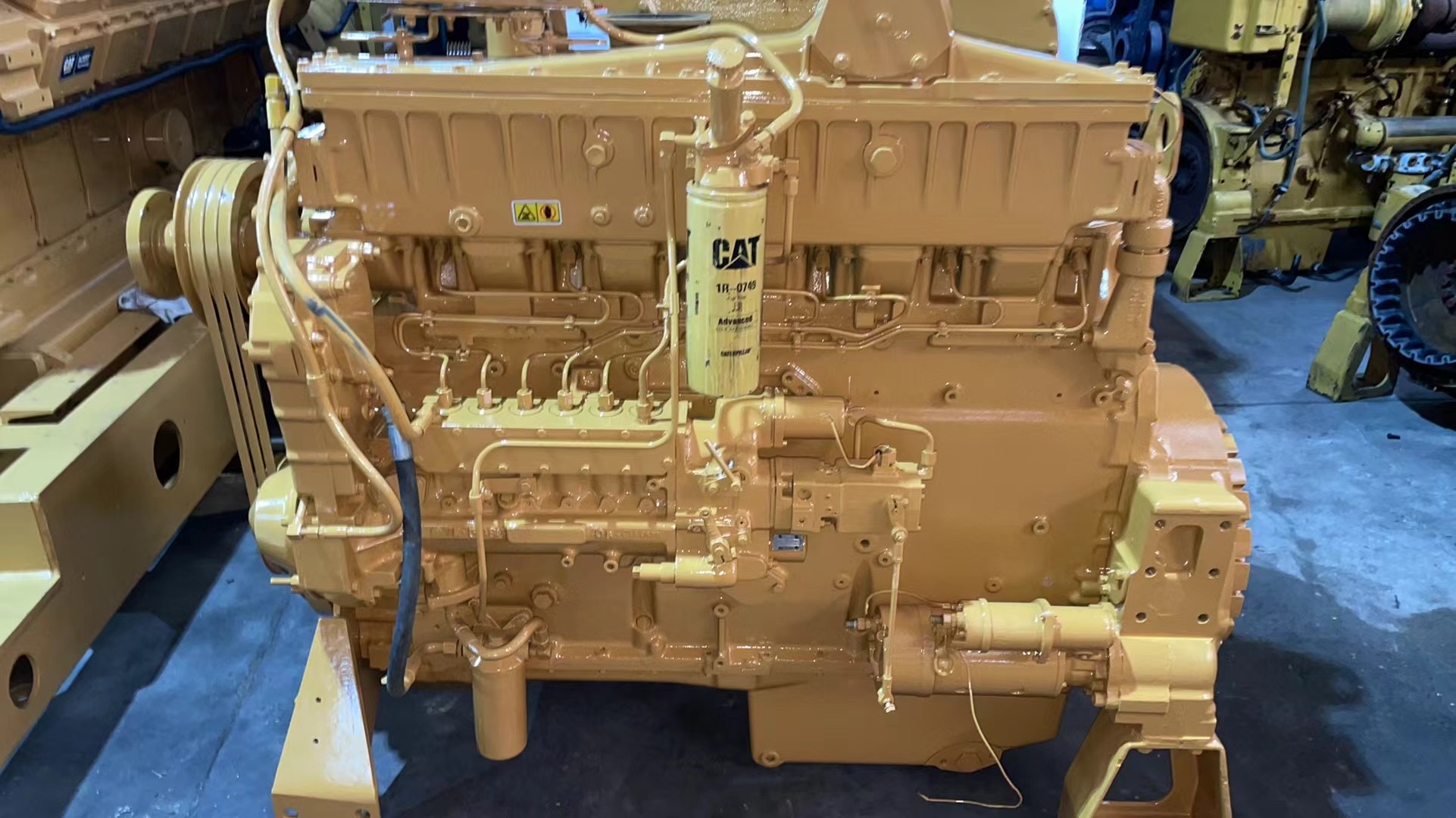

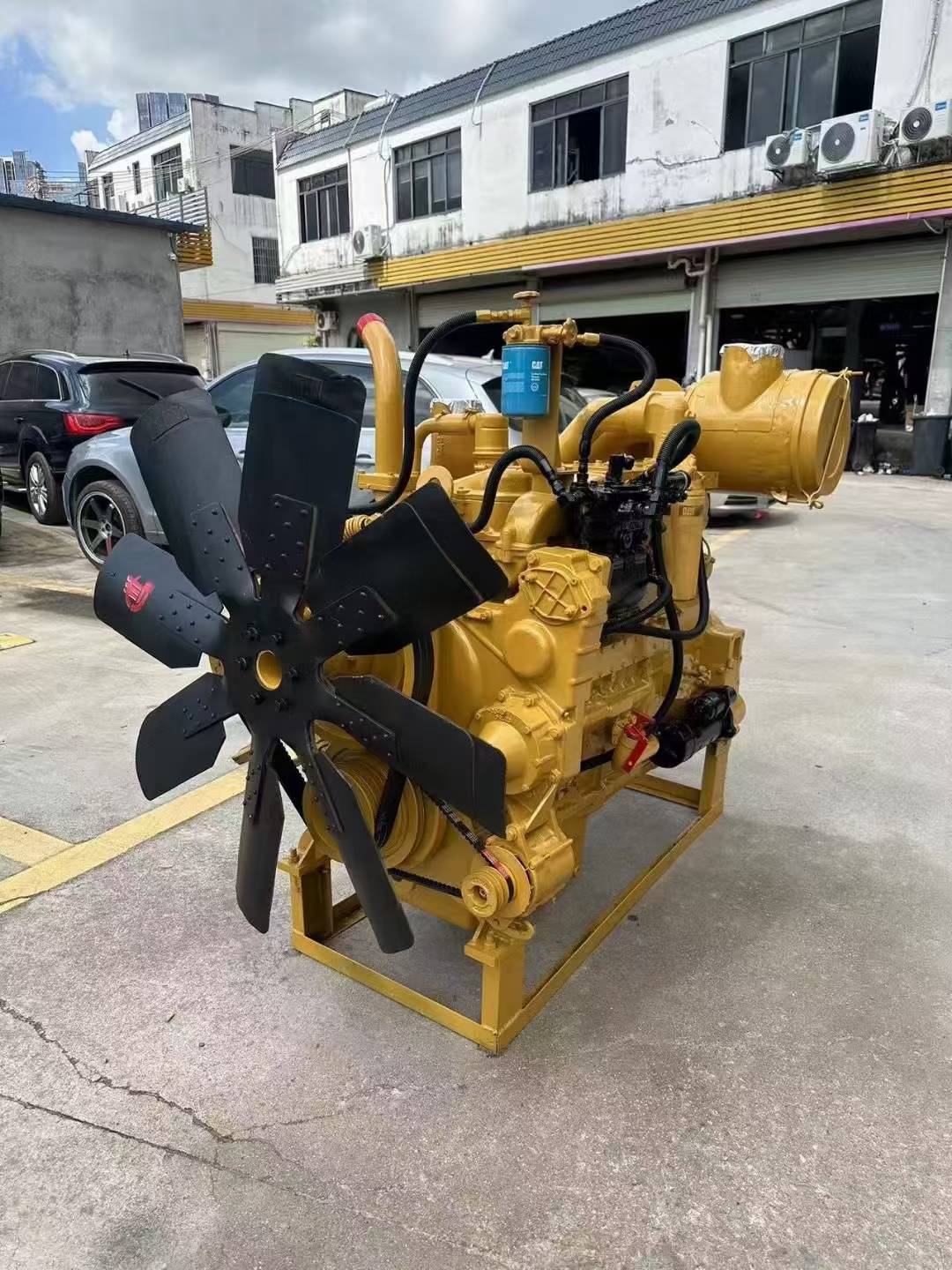

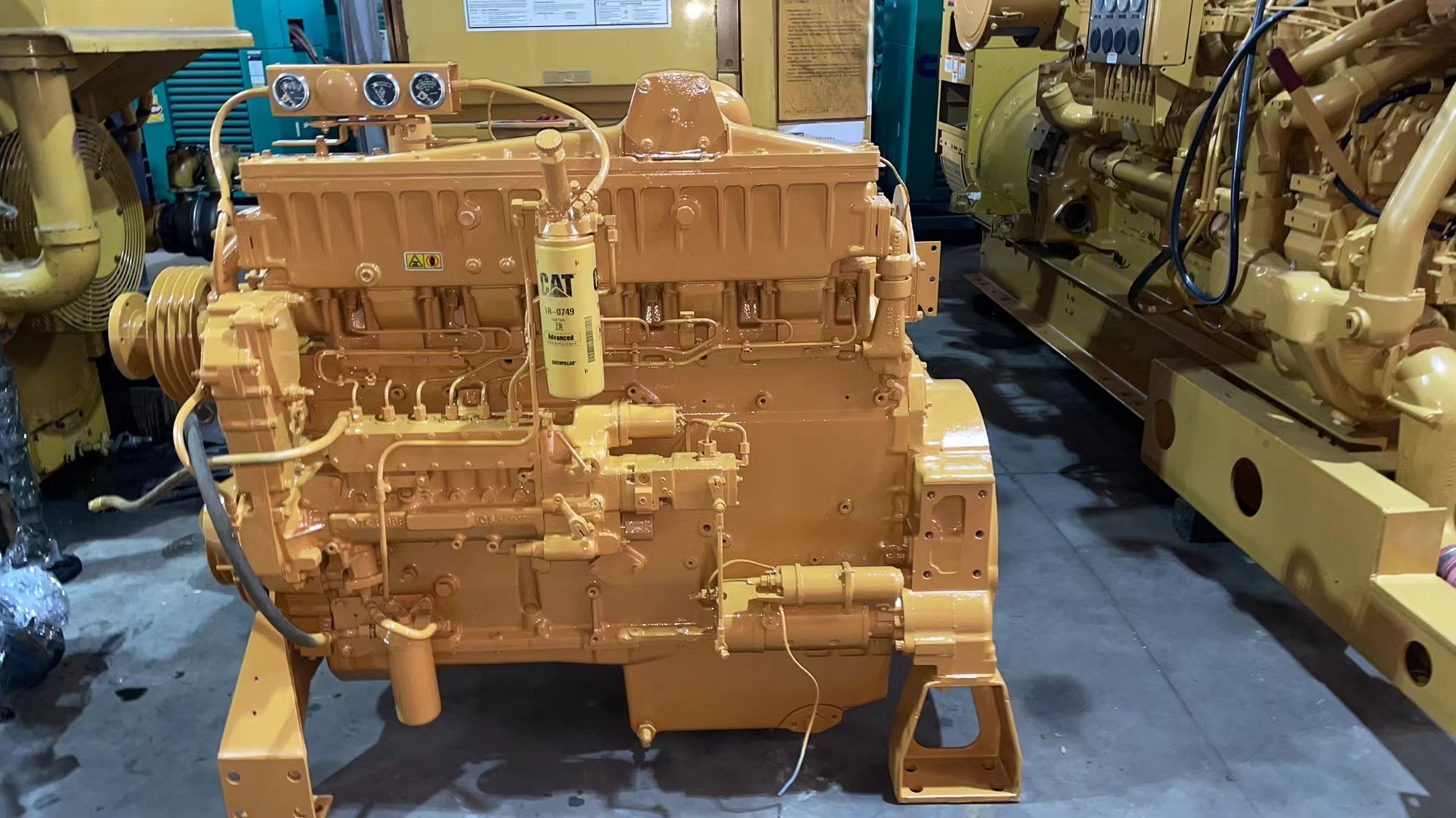

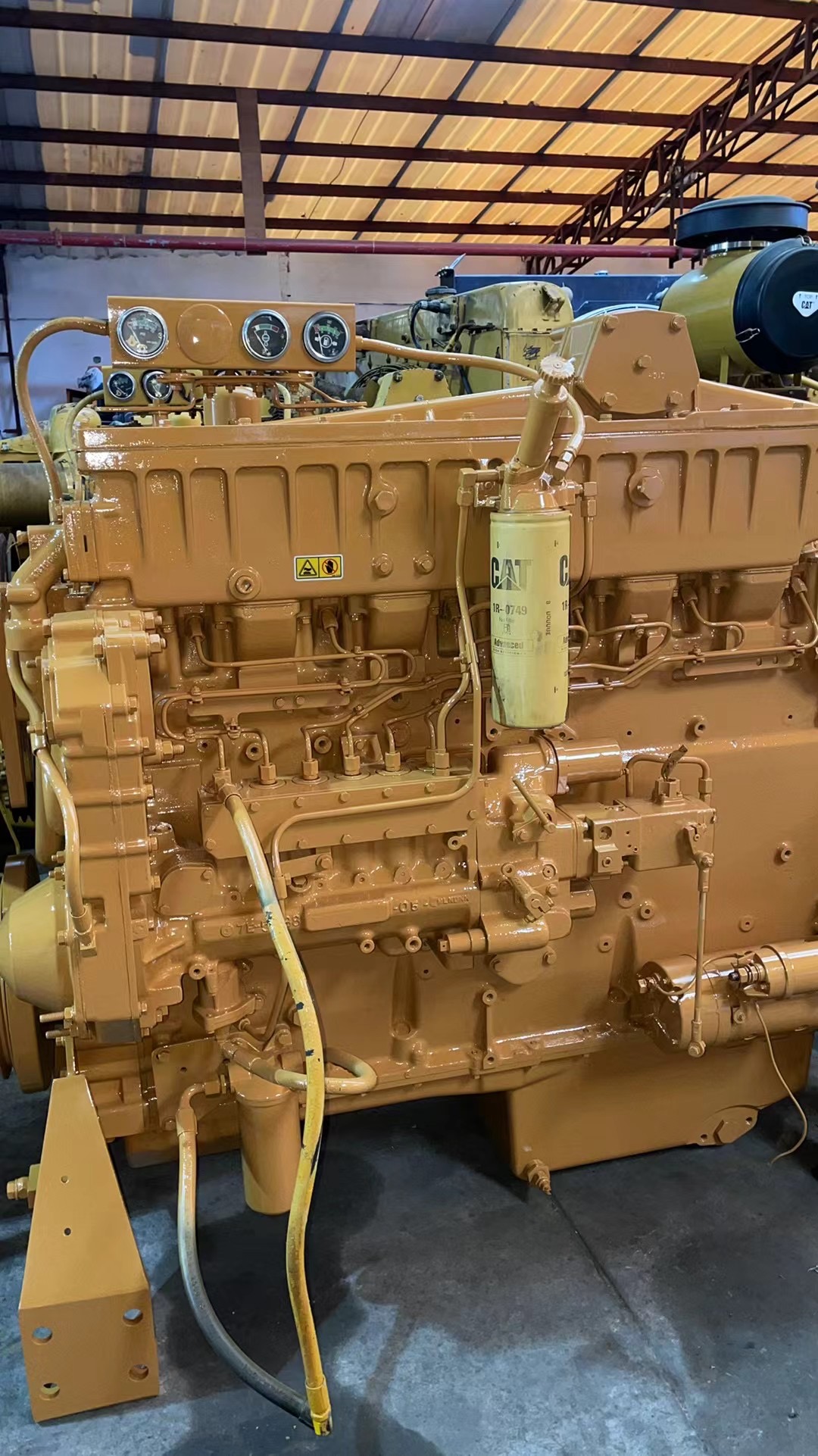

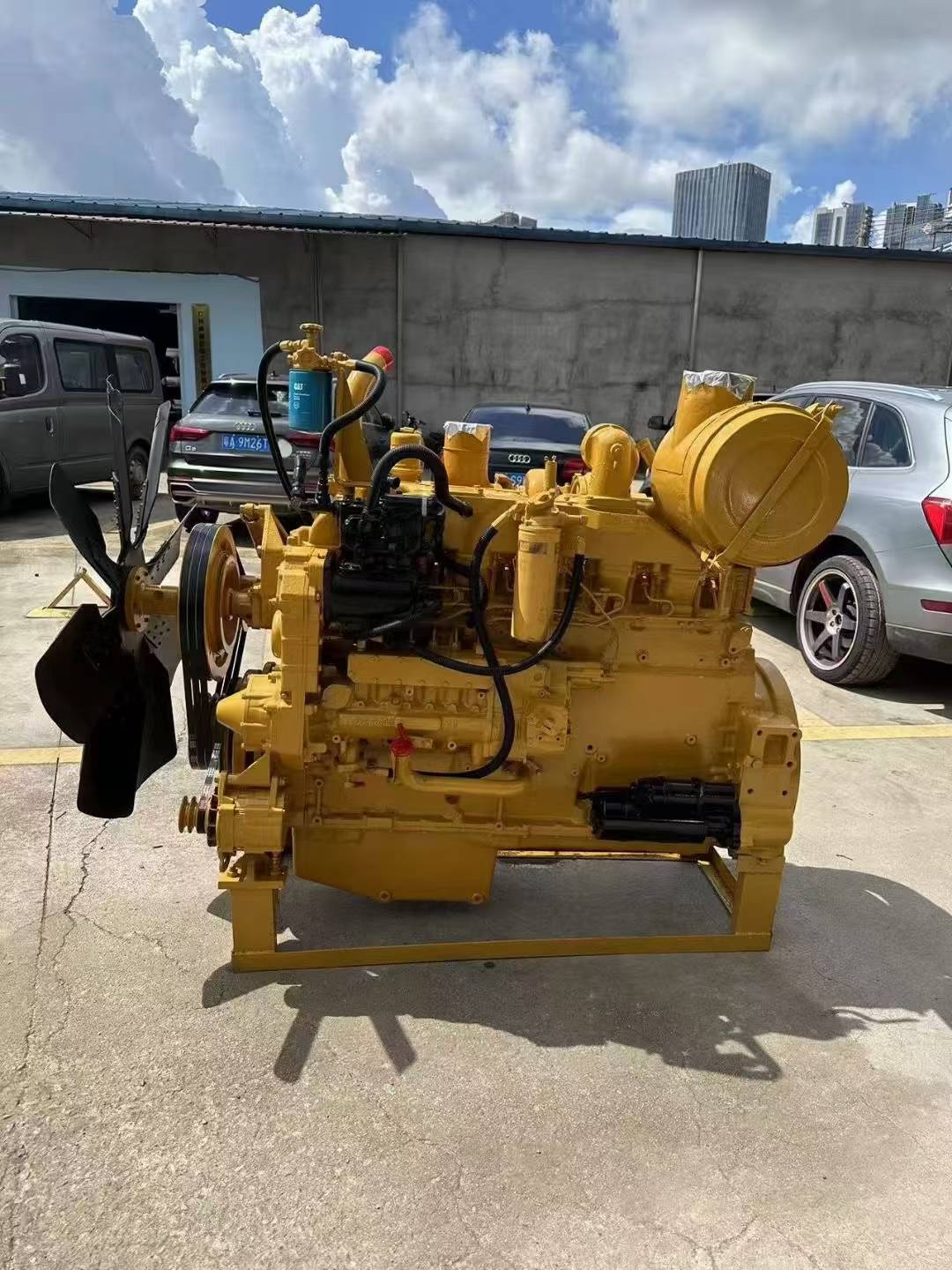

The Cat 3406 is a legendary heavy-duty, inline-six diesel engine celebrated as one of the most reliable and influential powerplants in industrial history. For over three decades, it has been the backbone of demanding applications worldwide, from long-haul trucks to mining sites and power generation facilities. Its reputation for exceptional durability, robust power output, and straightforward serviceability has cemented its status as a benchmark for heavy-duty performance.
The 3406 series evolved significantly, marking Caterpillar's transition from mechanical to advanced electronic engine management. The table below outlines the key developmental stages:
Shared Platform Specifications:
The Cat 3406 engine is engineered for continuous, heavy-duty cycles across multiple industries:
Power Generation: A prime mover for dependable diesel generator sets, with typical generator ratings ranging from 220 kW to 400 kW (275-500 kVA) for prime or standby power. These units are designed to accept 100% load in one step.
On-Highway Trucks: The powerhouse behind numerous Class 8 trucks, providing the reliable torque and durability required for long-distance transportation.
Heavy Construction & Mining: Provides essential power for equipment such as large excavators, bulldozers, wheel loaders, and off-highway mining trucks, where high torque output is critical.
Marine & Industrial: Used for marine propulsion and auxiliary power on workboats, as well as in various industrial pump and compressor applications.
Advanced Fuel System Technology: Later models, especially the 3406E, utilize an Electronic Unit Injection (EUI) system. This technology allows for extremely high injection pressure (up to 1600 bar in some advanced designs) and precise electronic control over timing and fuel volume, leading to superior combustion efficiency, power, and lower emissions.
Optimized Air Management with HT3B Turbo: The engine employs advanced turbocharging technology. The HT3B series variable geometry turbocharger dynamically adjusts to maintain optimal boost pressure across a wide RPM range, effectively reducing turbo lag and delivering consistent power for heavy loads.
Legendary Durable Construction: Built for a long service life, the 3406 features a high-strength compacted graphite iron (CGI) cylinder block and a forged steel crankshaft. This robust architecture is designed to withstand high cylinder pressures and stresses, contributing to its reputation for outstanding longevity and reliability.
Intelligent Electronic Control Systems: The 3406E is equipped with sophisticated electronic control modules (like the ADEM III system) that act as the engine's "nerve center". They provide comprehensive engine management, real-time monitoring, and enhanced diagnostic capabilities for easier troubleshooting and optimized performance.
