| Quantity: | |
|---|---|

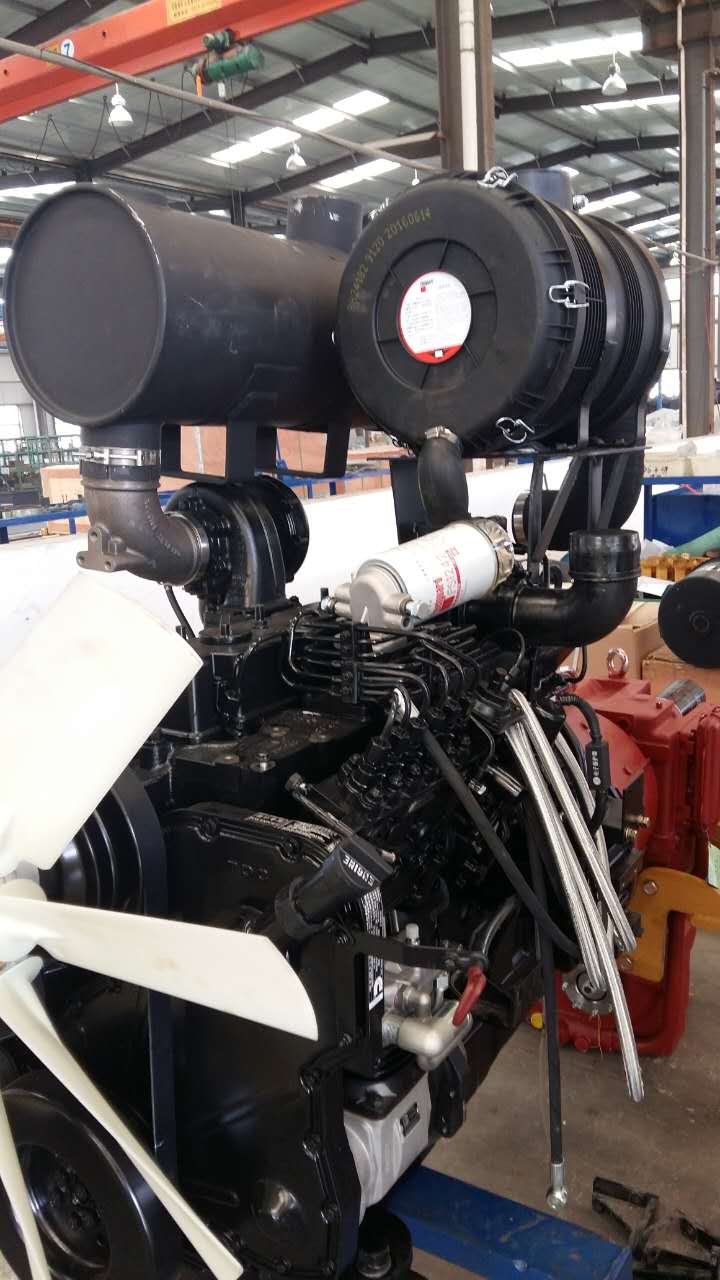

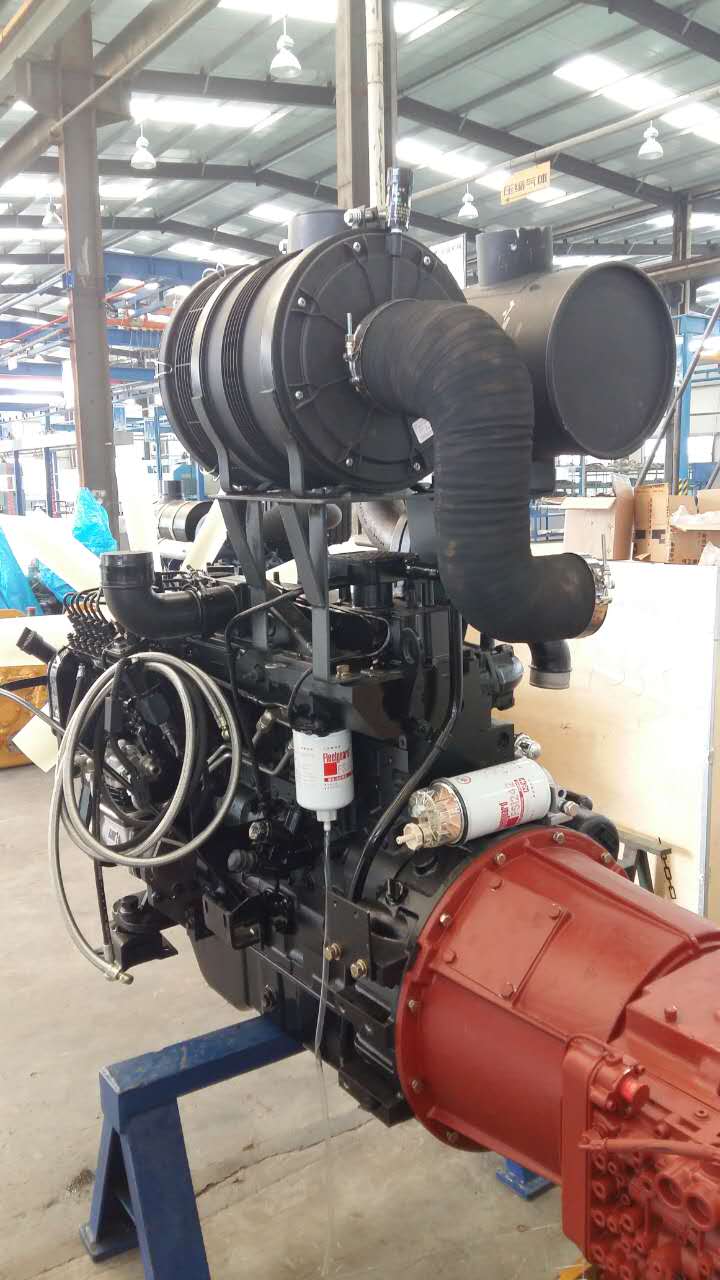

6LTAA9.3
Cummins
| Specification | Details |
|---|---|
| Engine Type | In-line 6 cylinder, 4-stroke diesel |
| Displacement | 9.3 L (579 cu in) |
| Bore x Stroke | 116 mm x 148 mm (4.58 in x 5.82 in) |
| Aspiration | Turbocharged and Air-to-Air Intercooled (TCAC) |
| Gross Power Output | Up to 162 kW (220 hp) @ 2,200 rpm (Industrial) |
| Peak Torque | 890 - 980 N•m |
| Fuel System | Bosch direct injection (mechanical fuel pump) |
| Weight (Wet) | Approx. 750 kg (1,653 lbs) |
Integrated Design: The cylinder block and cylinder head feature an integrated design, which reduces the potential for water or oil leakage and improves overall reliability.
Mechanical Fuel System: It utilizes a robust mechanical fuel system with Bosch direct injection, making it suitable for severe working conditions and ensuring durability and ease of maintenance.
High Efficiency: A 24-valve cylinder head (four valves per cylinder) design increases power, provides faster response, and contributes to improved fuel economy.
Durability: Key internal components, such as the forged steel camshaft and crankshaft, are engineered for high-strength, heavy-duty operation.
Construction Machinery: Widely used in equipment such as wheel loaders (e.g., Liugong CLG856H), excavators, cranes, and bulldozers.
Power Generation: A variation, the 6LTAA9.5-G series, is a common power source for diesel generator sets, providing prime and standby power in industrial and commercial settings.
Agricultural Equipment: The engine platform is also utilized in some large-scale agricultural machinery.
