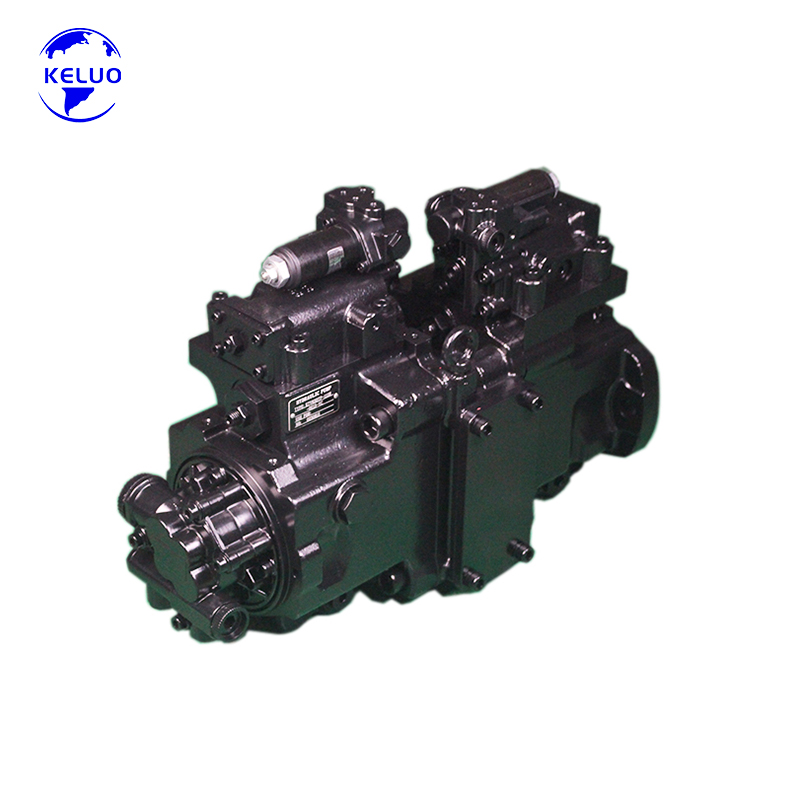

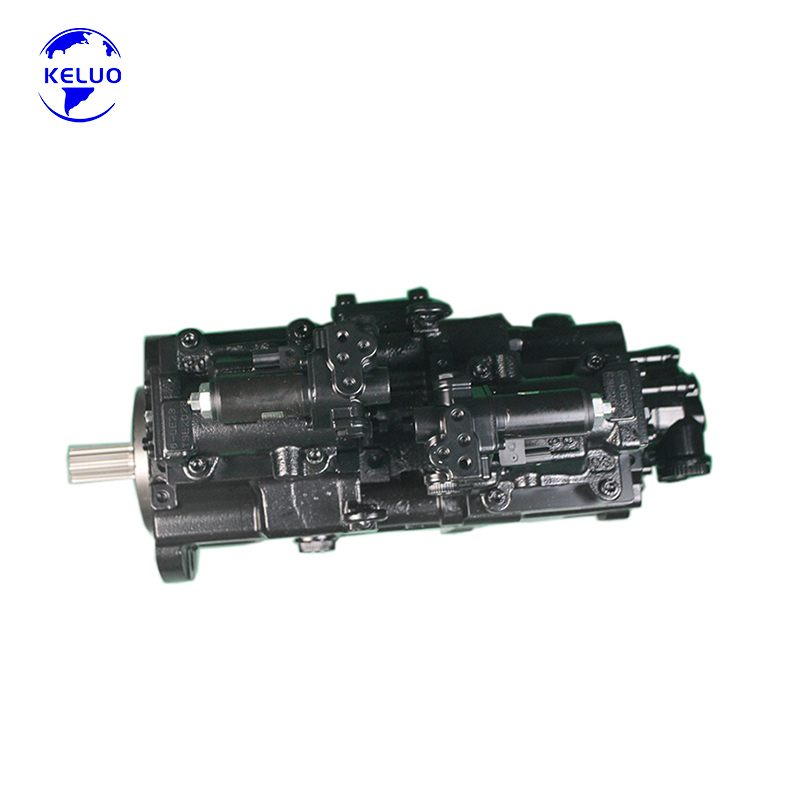

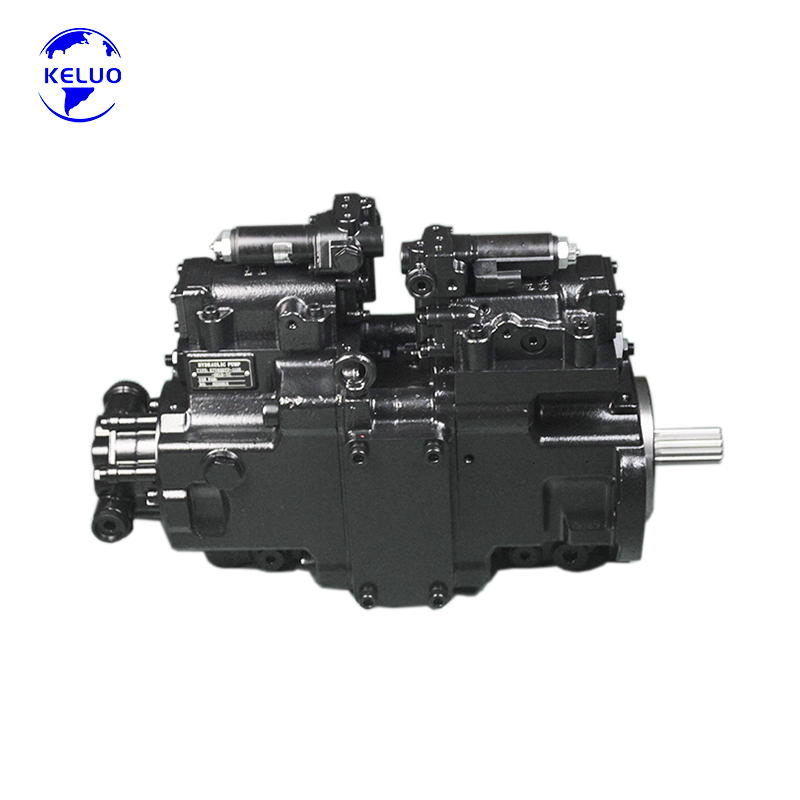

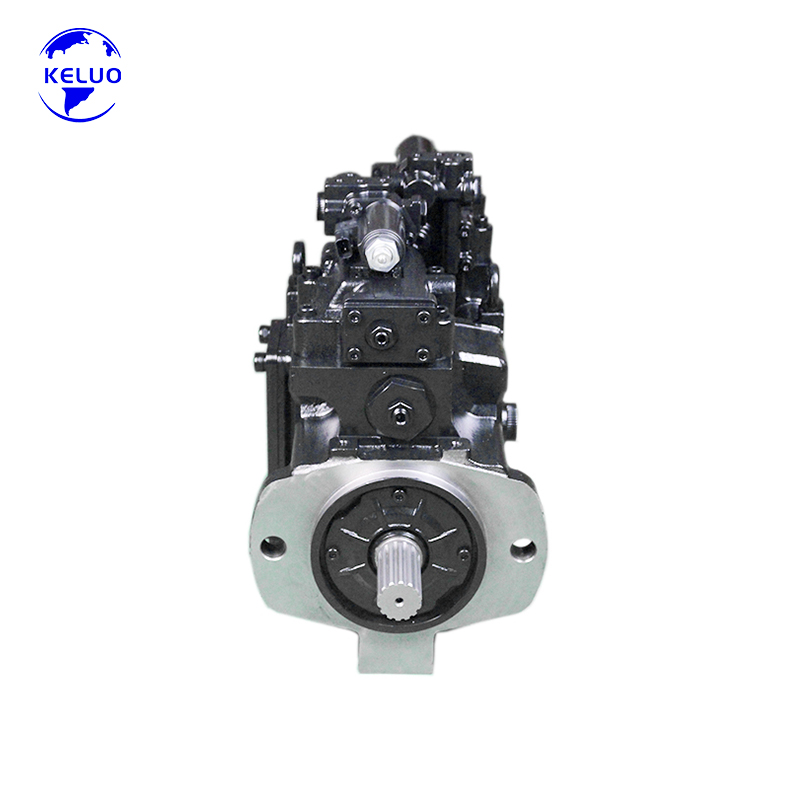

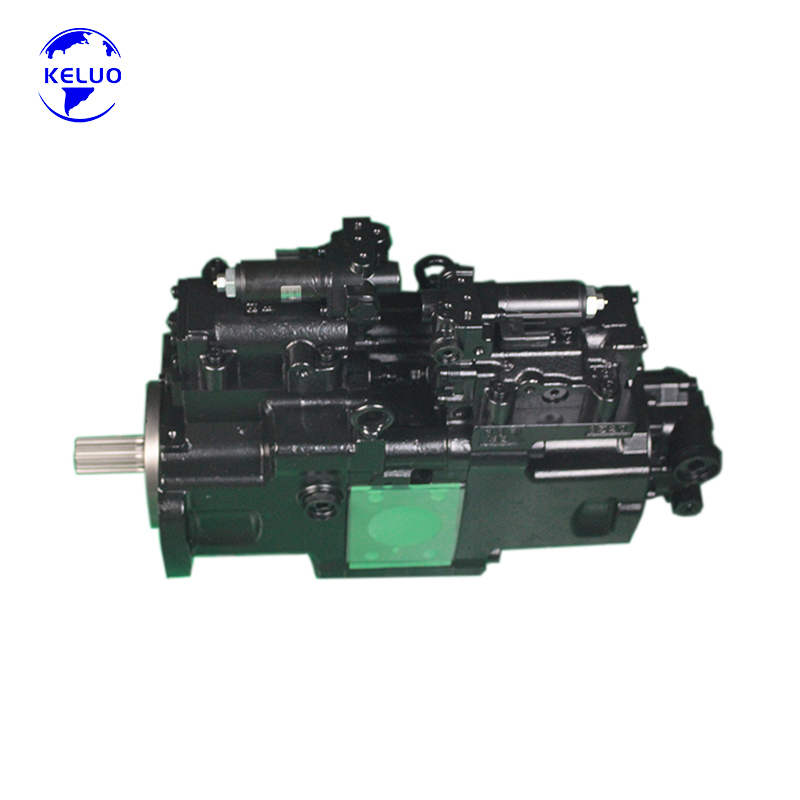

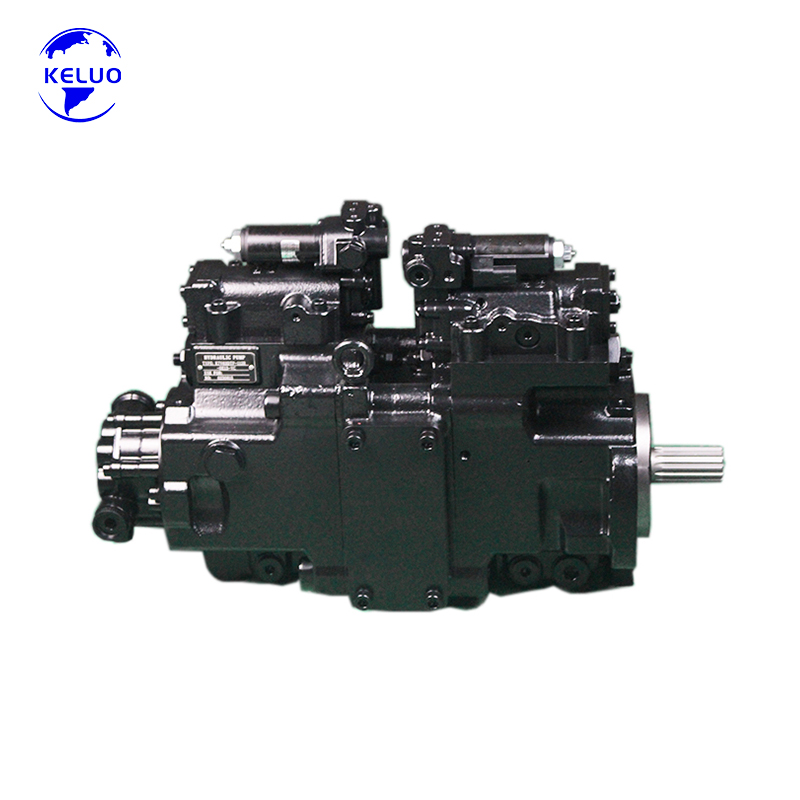

K7V63DT Excavator Hydraulic Piston Pump K7V63DTP-112R for Compact Construction Machinery

Product Overview:
The K7V63DTP-112R is a high-performance swashplate design axial piston tandem (dual) pump with PTO from the advanced Kawasaki K7V series. This next-generation variable displacement pump represents the latest evolution in hydraulic technology, delivering world-class pump efficiency and ultra-low noise operation that contribute to energy savings and a comfortable working environment . Specifically engineered for open circuit hydraulic systems, this compact tandem pump provides stepless flow adjustment for demanding mobile applications while achieving 1.5 times higher power density than previous series .

Model Code Breakdown:

Technical Specifications:

• Model: K7V63DTP-112R

• Series: K7V (Next-generation high-efficiency series)

• Type: Swashplate design, variable axial piston pump (tandem / dual configuration with PTO)

• Displacement: 65 cm³/rev (per pump)

• Rated Pressure: 35 MPa (approximately 350 bar / 5,076 psi)

• Peak Pressure: 40 MPa (approximately 400 bar / 5,800 psi)

• Maximum Self-Priming Speed: 2,650 min⁻¹

• Maximum Speed: Up to 2,650-2,800 rpm depending on configuration

• Structure: Tandem pump with PTO (DTP)

• Design: For open circuit hydraulic systems

• Mounting Flange: SAE / ISO 3019-1 standard

• Shaft Type: Splined shaft for direct engine coupling

• Port Connection: Side ported with SAE flange ports

• Control Type: 112R (specific flow control configuration)

• Weight: Approximately 50-60 kg (depending on configuration)

• Material: High-strength cast iron housing with hardened alloy steel internal components

• Temperature Range: -20°C to +95°C

Core Features:

• Next-Generation K7V Series: The K7V series incorporates Kawasaki's latest technologies for improving efficiency and lowering noise, achieving the world's top-level pump efficiency which contributes to energy savings on applications and a comfortable working environment .

• Ultra-Low Noise Operation: By optimizing internal clearances and stabilizing the cylinder block rotation, the K7V series achieves significantly reduced noise levels compared to conventional pumps, making it ideal for noise-sensitive urban job sites .

• High Power Density: With 1.5 times higher power density than the K3V series, the K7V delivers exceptional power output in a more compact package, enabling machine downsizing without compromising performance .

• Tandem / Dual Pump Configuration: Two high-performance pumps in a space-saving tandem arrangement, providing independent hydraulic power for multiple machine functions (e.g., boom, arm, bucket, swing) from a single drive source .

• PTO (Power Take-Off) Capability: The "P" in DTP indicates this model features a through-shaft PTO, allowing for the connection of additional hydraulic components such as pilot gear pumps, providing flexible system configuration options .

• Optimized Axial Length: The axial dimensions have been optimized, achieving a 10% shorter overall length compared to the K3V series, saving valuable installation space in compact machinery .

• Extended Service Life: By adopting large capacity bearings and increasing the drive shaft size, the edge load on bearing rollers is reduced, achieving even longer service life .

• High-Pressure Capability: Delivers 35 MPa rated and 40 MPa peak pressure, meeting the most demanding excavator and construction application requirements .

• Excellent Suction Characteristics: Superior self-priming performance (2,650 min⁻¹) ensures reliable operation even in cold start conditions and challenging intake situations .

Main Applications (Suitable Equipment):
The K7V63DTP-112R is the specialized power unit for compact to medium-sized construction machinery requiring high efficiency and low noise operation:

1. Compact & Medium Excavators (6-10 Ton Class):

• Kubota, Yanmar, Takeuchi excavators - main hydraulic pump

• Bobcat, JCB, Caterpillar mini excavators

• Komatsu PC50-PC70 series

• Hitachi ZX50-ZX70 series

• SANY SY60-SY80 series

2. Compact Construction Machinery:

• Skid steer loaders and compact track loaders

• Compact wheel loaders (1-2 cubic yard capacity)

• Backhoe loaders and compact excavator-loaders

• Mini crawler dozers and compact graders

3. Drilling & Foundation Equipment:

• Small crawler drills and foundation rigs

• Pile drivers and soil compaction equipment

• Mini piling rigs and anchor drilling machines

4. Agricultural Machinery:

• Compact tractors (40-80 HP)

• Self-propelled sprayers and harvesters

• Agricultural implements with hydraulic drives

5. Crane & Lifting Equipment:

• Small crawler cranes (10-20 ton class)

• Aerial work platforms and scissor lifts

• Telehandlers and rough-terrain forklifts

6. Specialty Applications:

• Municipal vehicles and sweepers

• Concrete pump trucks - auxiliary functions

• Forestry equipment and harvesters

• Marine deck machinery for small vessels
