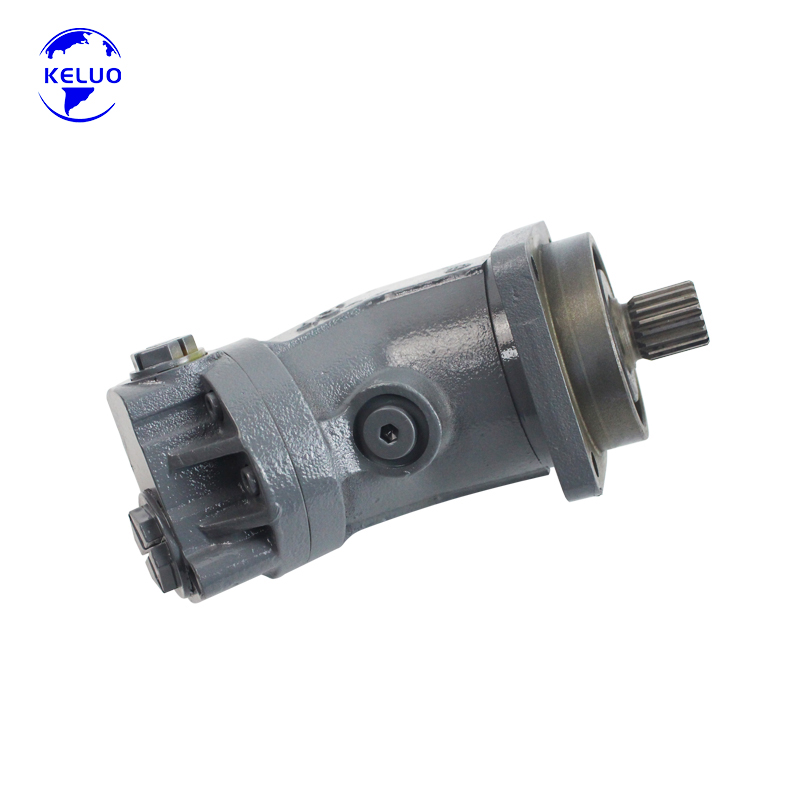

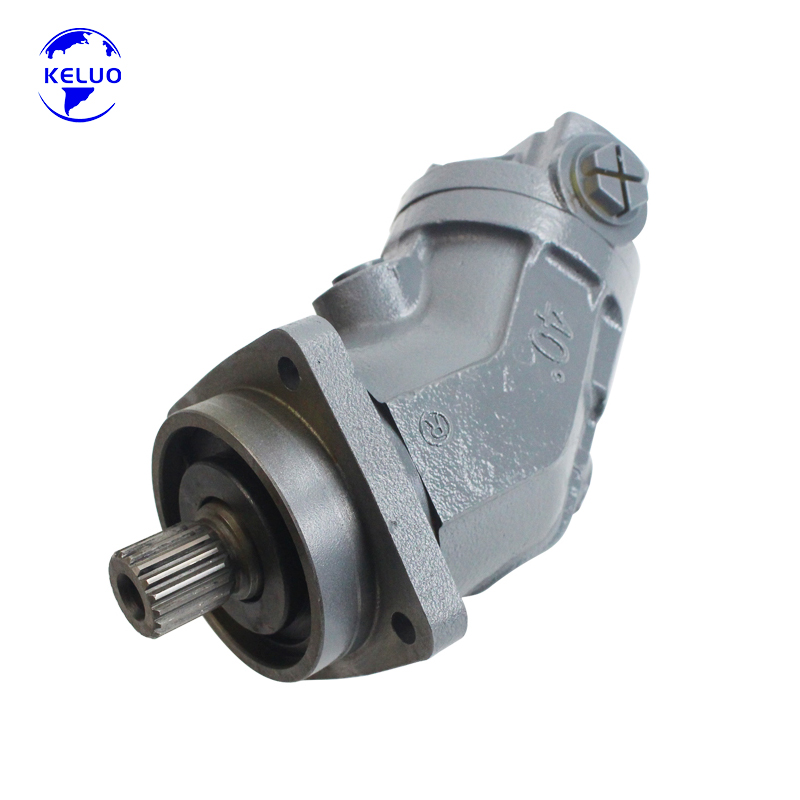

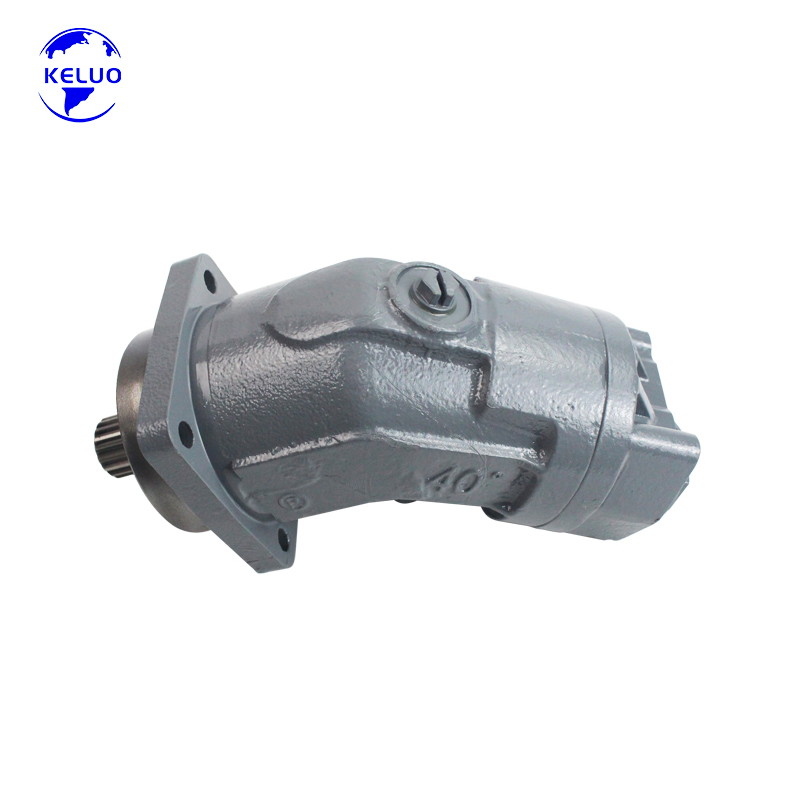

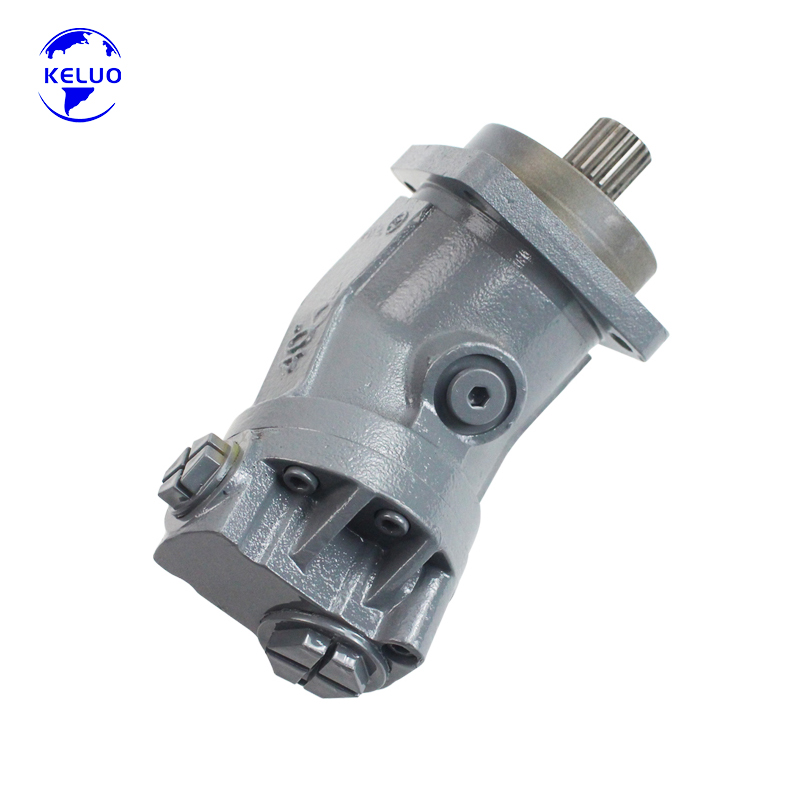

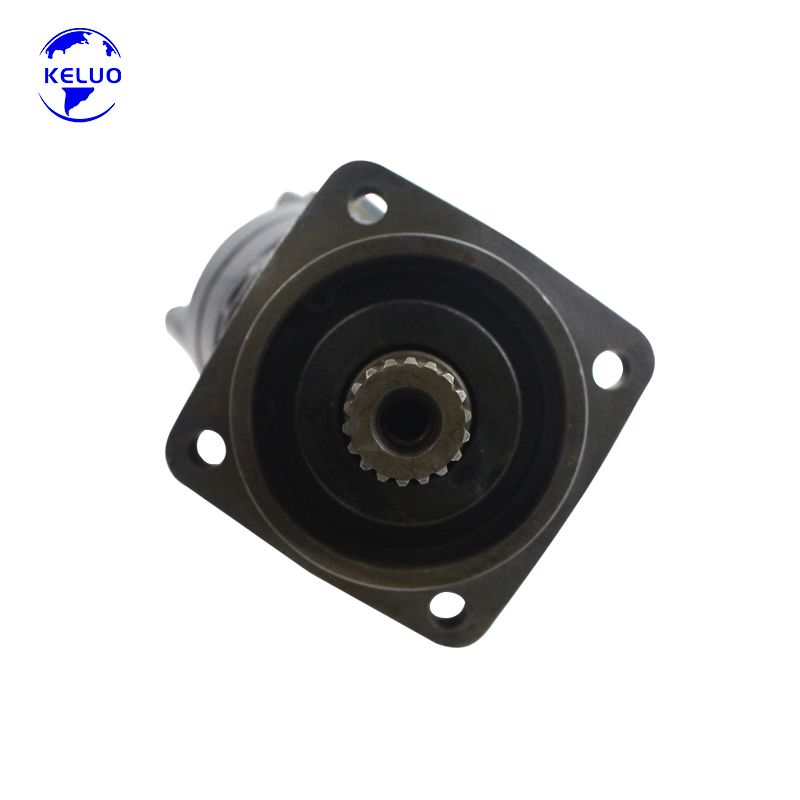

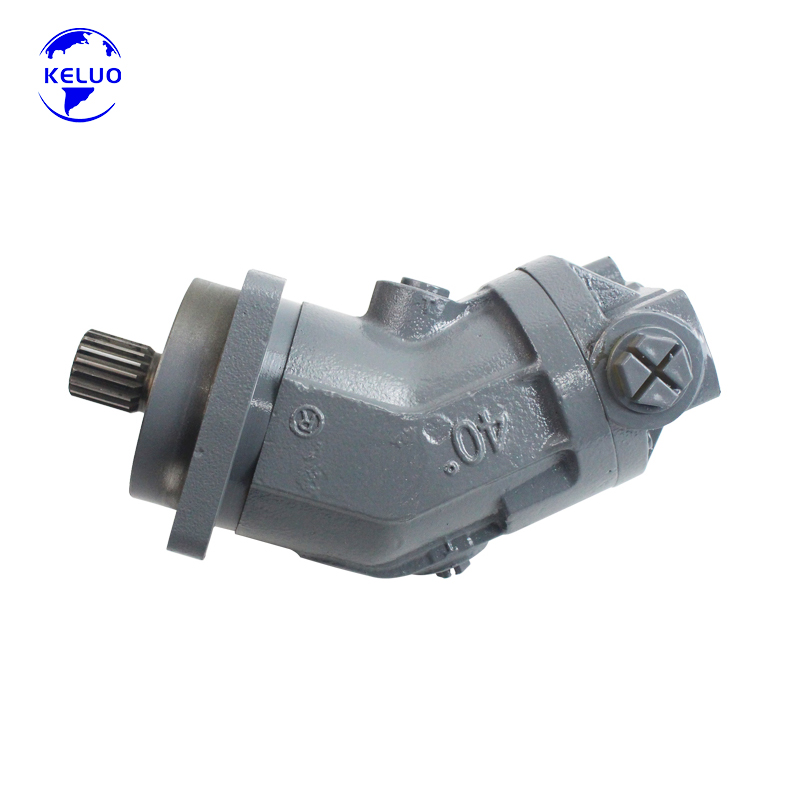

A2FO16
Rexroth
Product Description
High-Efficiency Hydraulic Power Solution
Bent-Axis Design: Features a specialized 40° bent-axis piston rotary group, providing a higher power-to-weight ratio and superior volumetric efficiency compared to swashplate designs.
High-Pressure Capability: Capable of handling nominal pressures up to 400 bar and peak pressures up to 450 bar, making it ideal for heavy-duty cycling.
Tapered Piston Technology: Utilizes high-quality tapered pistons with compression rings for optimized sealing and minimal friction loss.
Self-Suction Characteristics: The unit is designed for excellent suction performance, reducing the risk of cavitation even at high speeds.
Robust Bearing System: Equipped with heavy-duty bearings to ensure a long service life under continuous high-load operations.
Construction Machinery: Hydraulic excavators, concrete pumps, mobile cranes, and road rollers.
Agricultural Equipment: Combine harvesters, large tractors, and forestry machinery.
Industrial Applications: Hydraulic presses, plastic injection molding machines, and metal forming equipment.
Commercial Vehicles: Truck-mounted cranes, refuse trucks, and hydraulic power take-off (PTO) units.
Series: 6x
Displacement: 16 cm³/rev
Nominal Pressure: 400 bar (5800 psi)
Maximum Pressure: 450 bar (6525 psi)
Max Speed: Up to 4750 rpm
Weight: Approximately 6.0 kg
