Weichai Engine Wd10g178e25 for Shantui SD16 SD16L SD16F Bulldozer

5 0 Reviews
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • WD10G178E25

  • weichai

发动机海报

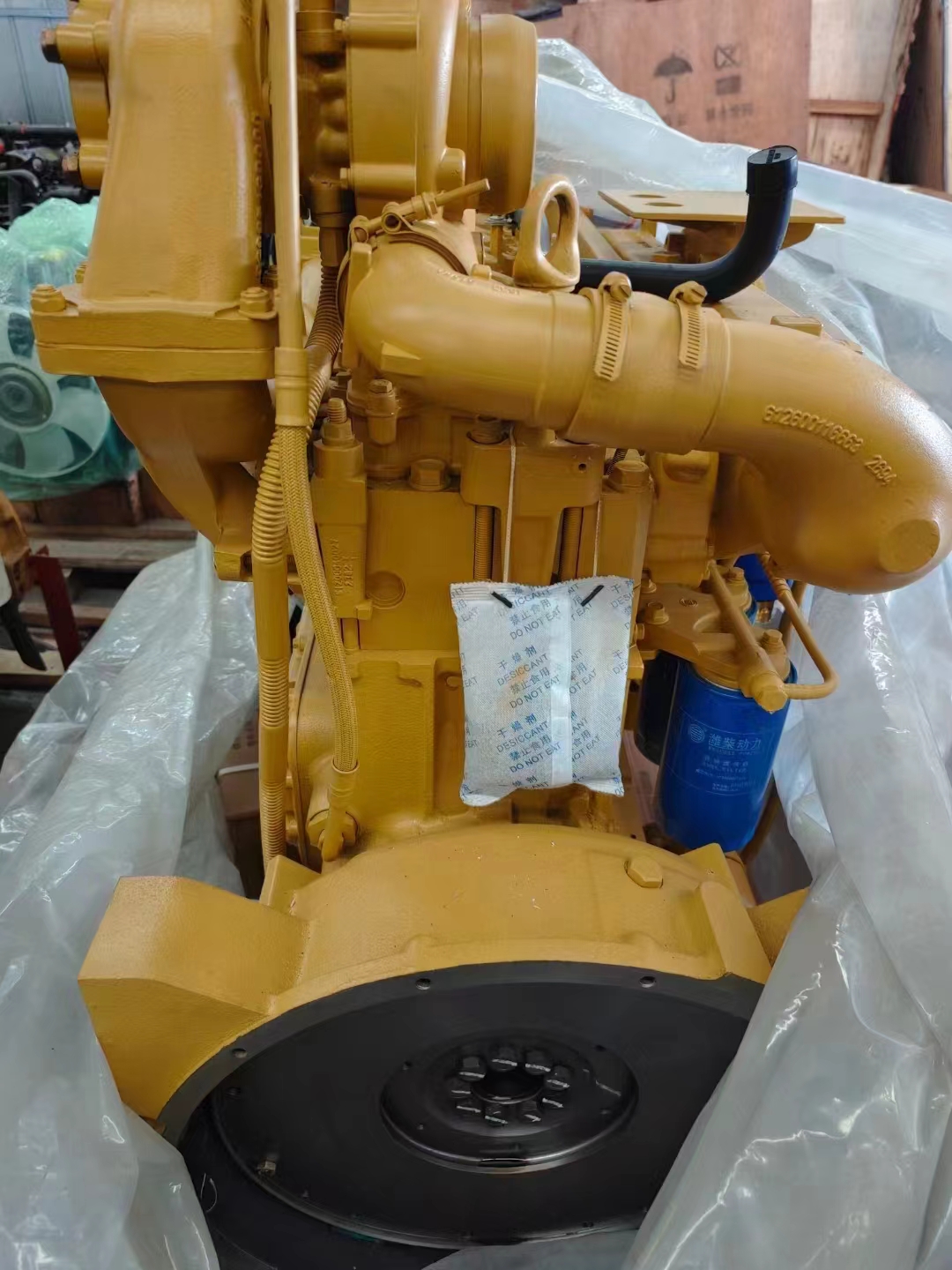

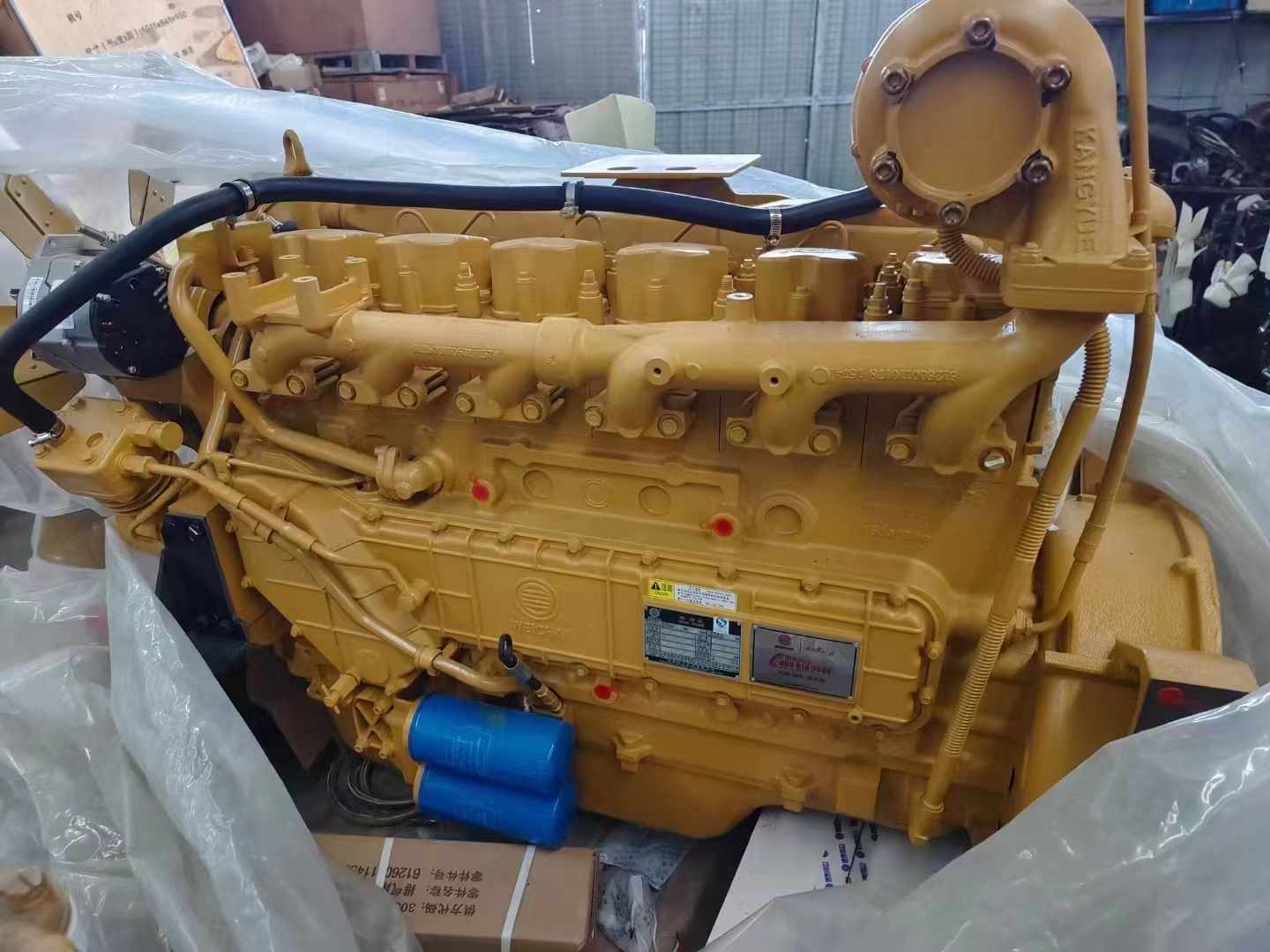

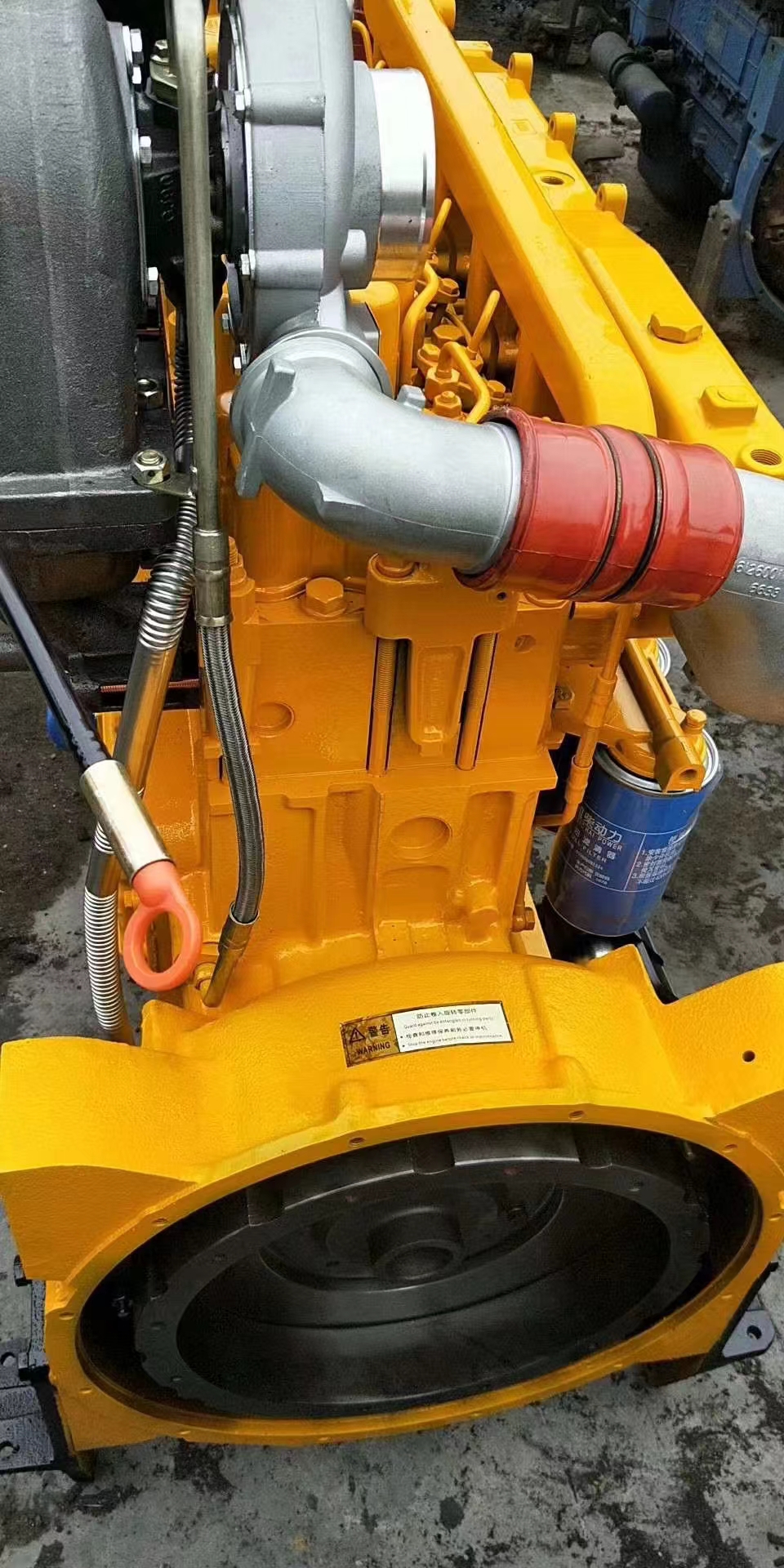

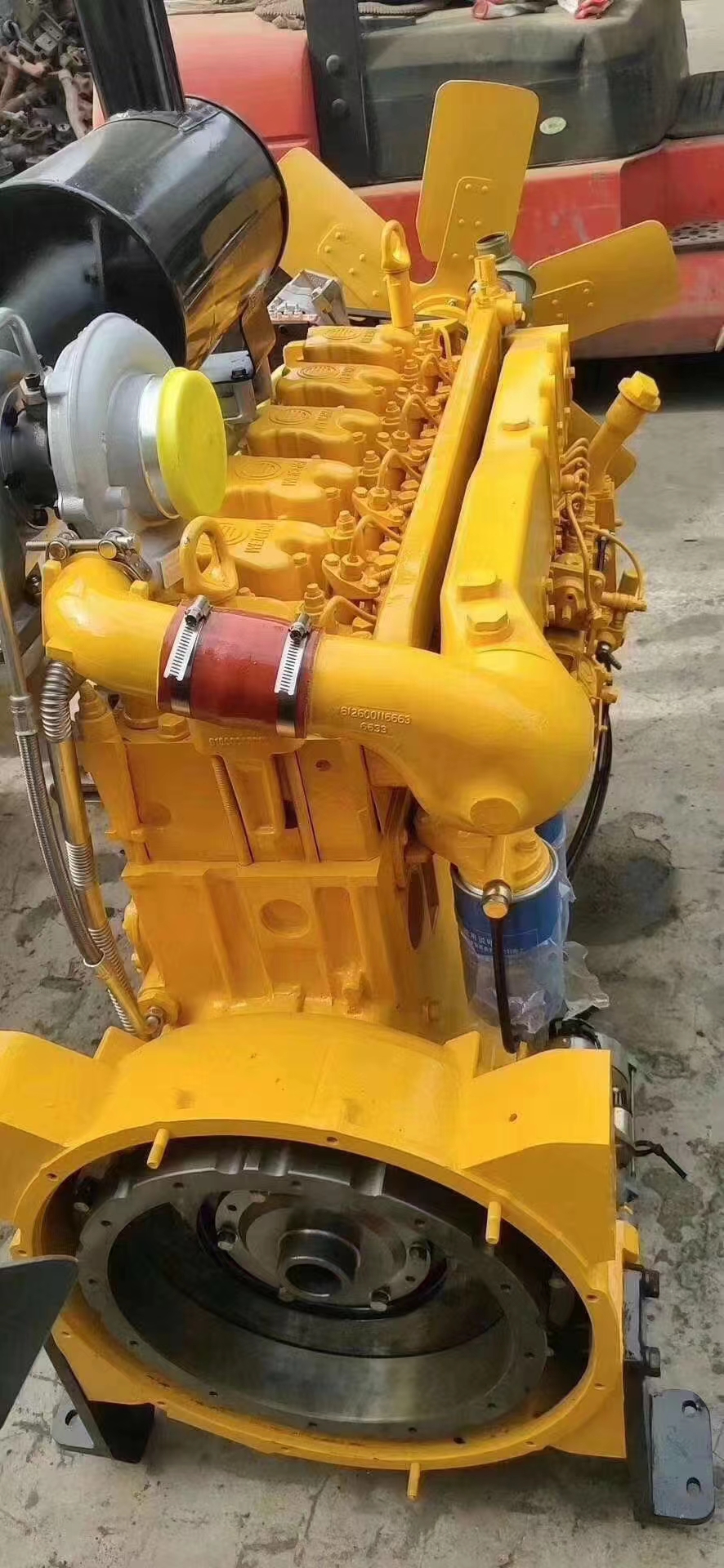

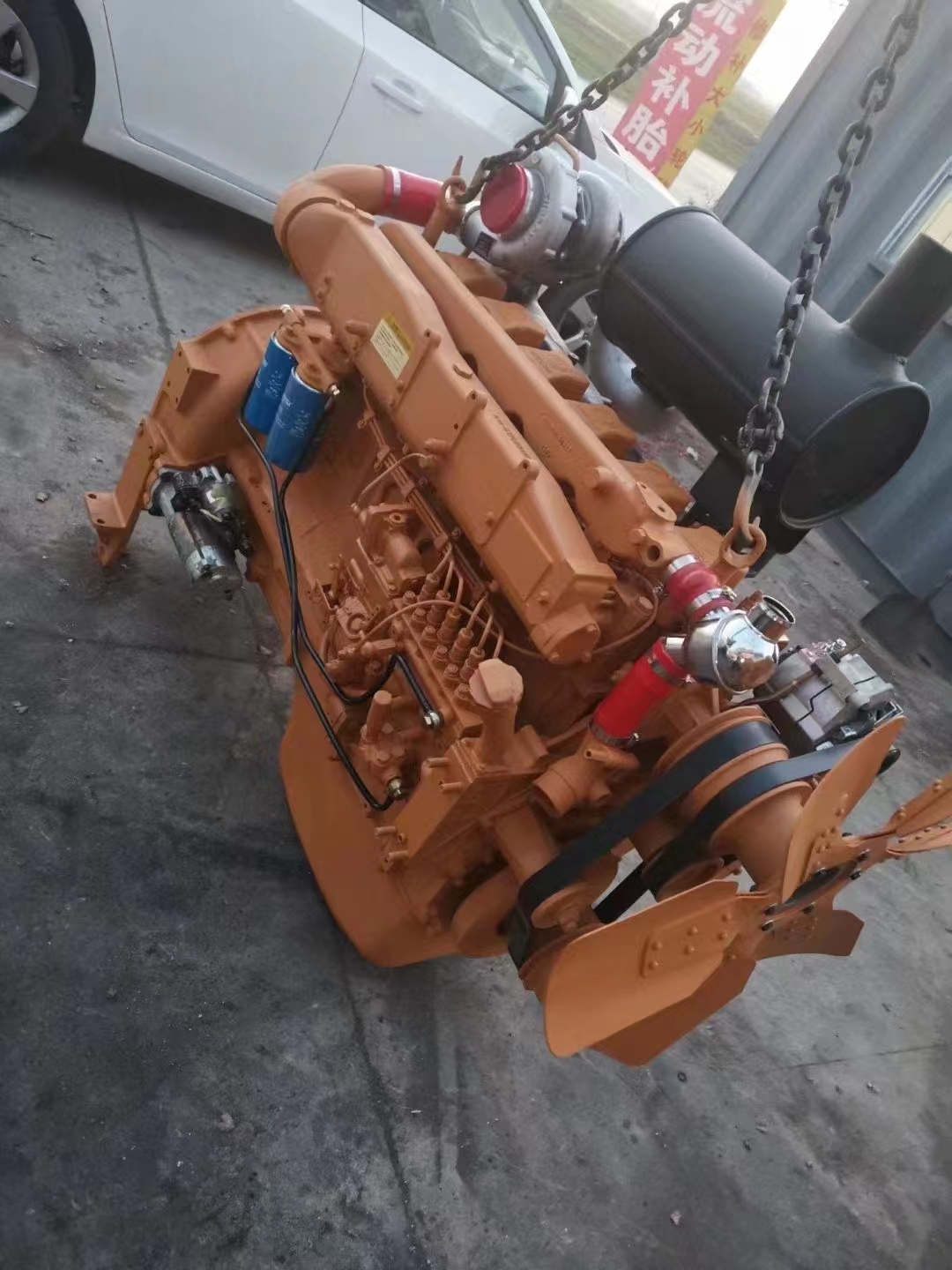

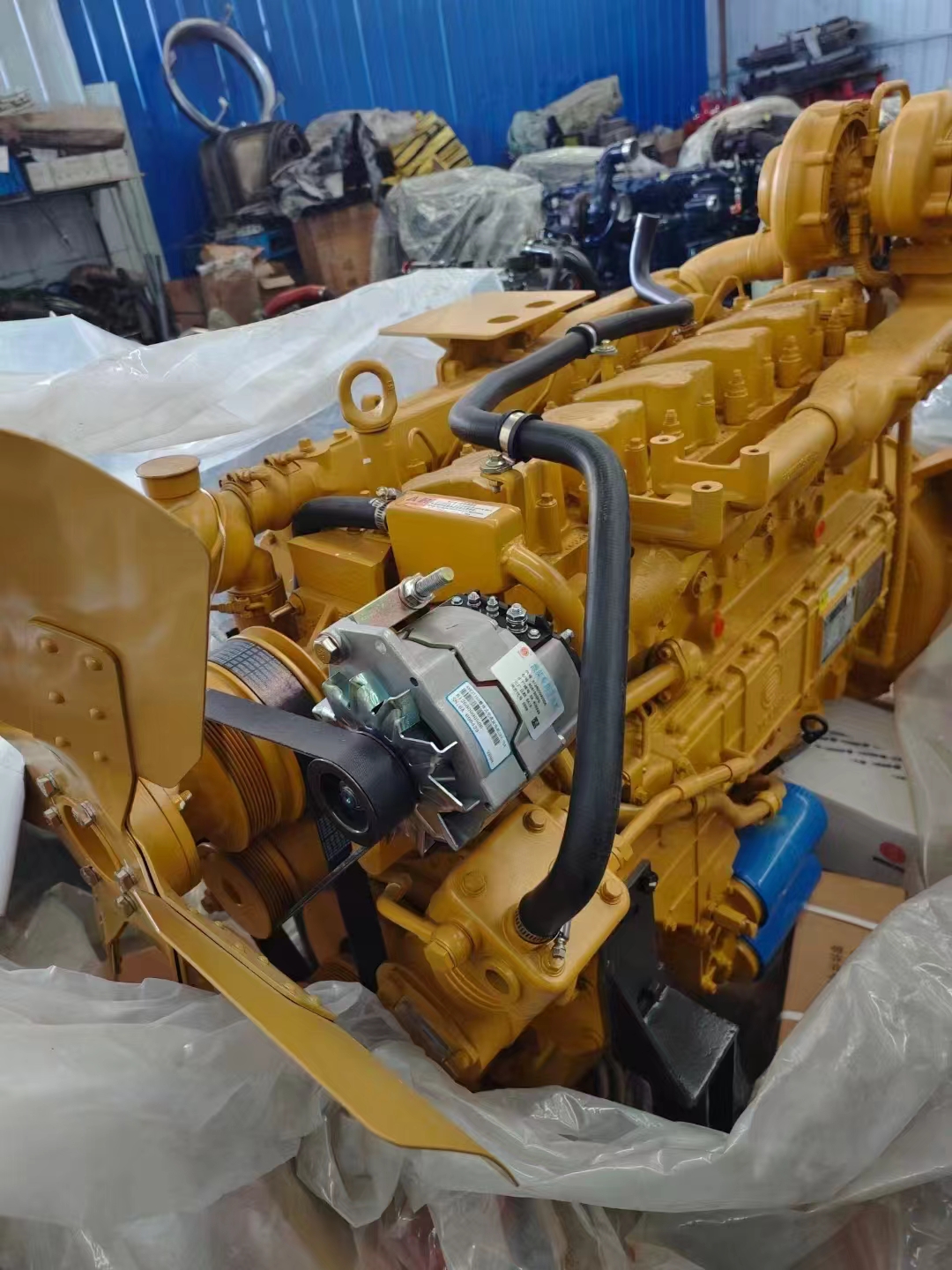

The Weichai WD10G178E25 is a high-performance, 6-cylinder, in-line, 4-stroke diesel engine renowned for its exceptional durability, reliable power, and fuel efficiency . With a substantial 9.726-liter displacement, this turbocharged engine is engineered to deliver consistent performance in the most demanding industrial and construction environments . Its robust construction and proven technology make it a trusted power source for a wide range of heavy machinery.

Key Technical Specifications

Parameter Specification
Engine Model Weichai WD10G178E25
Configuration In-line, 6-Cylinder, 4-Stroke
Aspiration Turbocharged
Displacement 9.726 L
Bore × Stroke 126 mm × 130 mm
Rated Power/Speed 131 kW (178 HP) @ 1850 rpm
Max. Torque/Speed 830 N.m @ 1000-1200 rpm
Fuel Consumption 210 g/kW.h @ Rated Power
Emission Standard Euro II
Cooling Method Water-Cooled
Fuel System Direct Injection Pump
Note: Specifications can vary depending on the specific application configuration. Refer to official technical data sheets for precise information.

Primary Applications & Equipment

The Weichai WD10G178E25 engine is built to be the powerhouse behind a range of heavy-duty machinery, including :

  • Bulldozers: It is a key power source for models like the Shantui SD16, SD16L, and SD16F , as well as the HW16DS Bulldozer .

  • Other Engineering Machinery: Its proven performance and reliability also make it suitable for various dump trucks and large-sized equipment .

Core Technologies & Key Features

  • Turbocharged Aspiration: The engine utilizes a turbocharger to force more air into the cylinders, significantly boosting power output and torque without increasing engine size, ensuring strong performance for demanding tasks .

  • Efficient Direct Injection Fuel System: Equipped with a direct injection pump, this system ensures precise fuel delivery and optimal combustion, leading to superior fuel economy and reliable power .

  • Robust Engine Design: Built for maximum durability, the engine features a sturdy construction with 6 cylinders in-line and water-cooling system to maintain optimal operating temperatures under heavy loads, ensuring a long service life .

  • Proven Reliability under Tough Conditions: Designed to withstand the rigors of heavy-duty use, this engine is known for its reliable operation in challenging environments and complex terrain .
