A2FO23
Rexroth

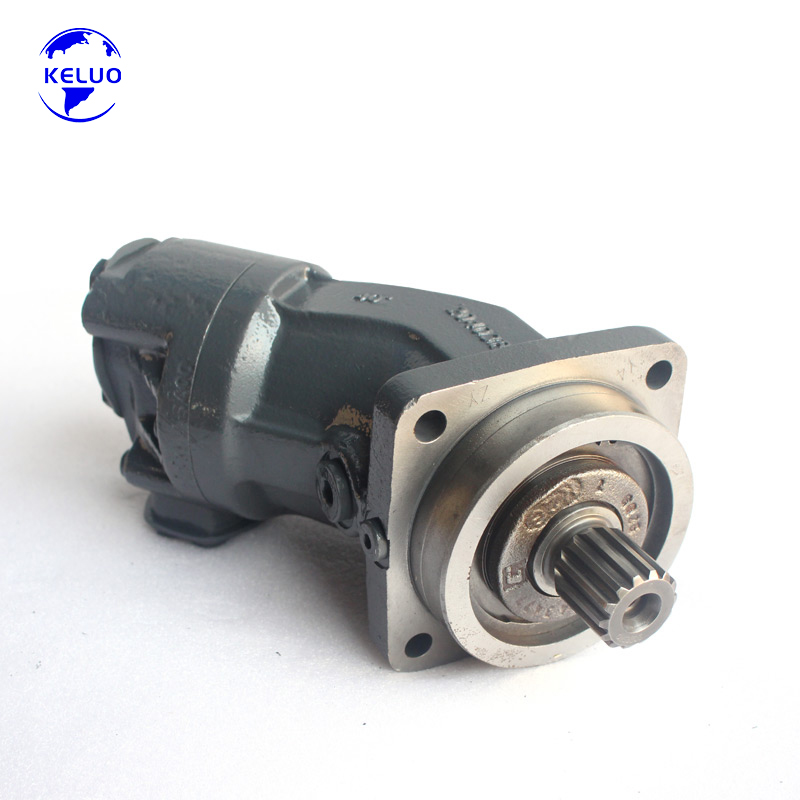

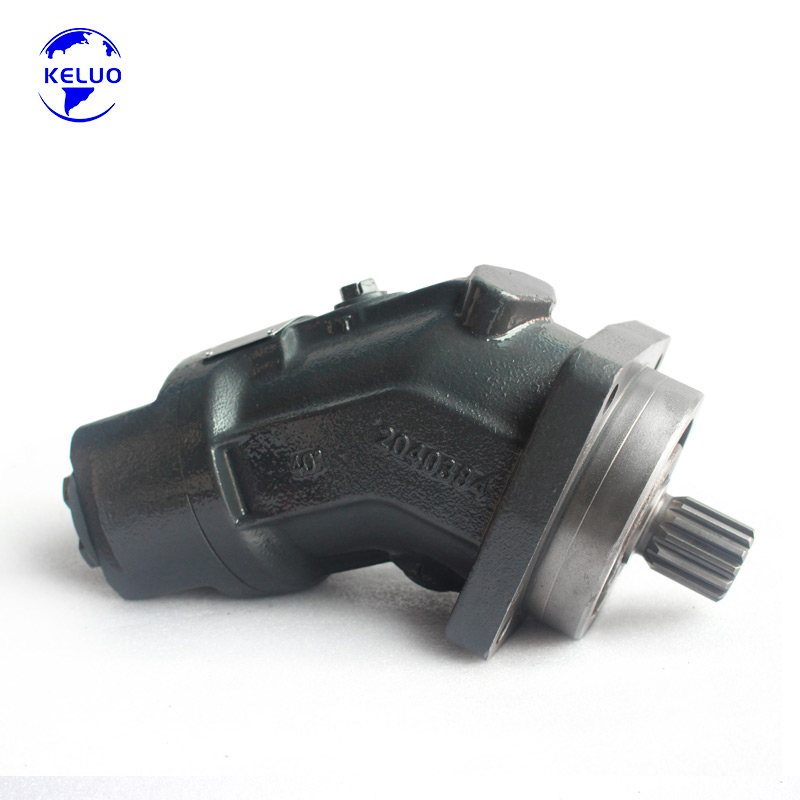

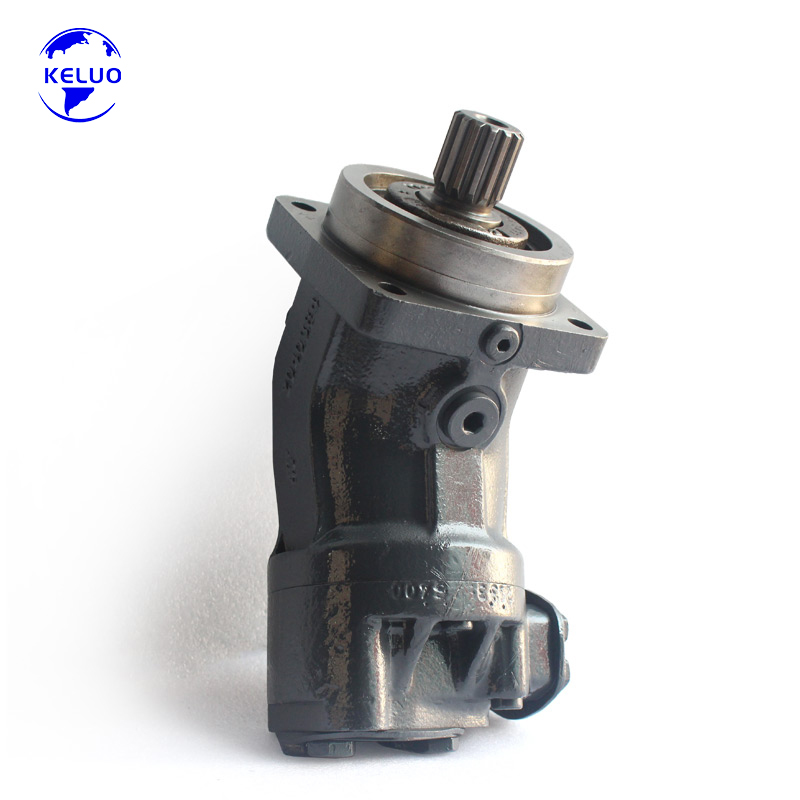

A2FO23 High-Performance Axial Piston Pump – Engineered for Demanding Hydraulic Systems
The A2FO23 is a robust and efficient fixed displacement axial piston pump, designed for high-power open circuit applications. Part of the proven A2FO series, it delivers reliable, continuous hydraulic power for machinery requiring superior performance under challenging operational conditions.
Designed for Heavy-Duty Equipment:
This pump is an optimal power source for a broad spectrum of medium-to-high flow mobile and industrial machinery, including:
Construction & Earthmoving Machinery: Mid-sized excavators, bulldozers, mobile cranes, and vibratory rollers.
Agricultural Equipment: Large tractors, forage harvesters, and self-propelled sprayers.
Material Handling: Heavy-duty forklifts, container handlers, and log grapples.
Industrial & Stationary Applications: Hydraulic presses, plastic injection molding machines, and winch drives.
Core Technologies & Engineering Advantages:
Robust Swashplate Design: Incorporates a time-tested axial piston, swashplate principle with piston slippers on a spherical seating. This ensures smooth operation, excellent starting characteristics, exceptional efficiency, and extended service life.
Through-Drive Capability: The standard through-drive shaft allows for the easy and compact assembly of multiple pumps, enabling the creation of cost-effective multi-circuit systems from a single power source.
High Efficiency & Low Noise: Advanced design minimizes internal leakage and fluid pulsation, achieving high volumetric and mechanical efficiency while contributing to a quieter working environment.
Superior Load Capacity: Features a heavy-duty tapered roller bearing on the input shaft, providing outstanding radial load capacity for reliable operation even with high side loads from attached components.
Versatile Configuration Options: Available with various SAE mounting flanges, shaft types, and porting configurations (including optional built-in auxiliary valves), ensuring seamless integration into diverse hydraulic systems.
Key Specifications (Typical):
Displacement: 23 cm³/rev (~1.40 in³/rev)
Maximum Operating Pressure: Up to 350 bar (~5075 psi) continuous
Speed Range: Designed for optimal performance within standard industrial and mobile equipment prime mover speeds
