Sinotruk HOWO parts weichai Wd615.47 Diesel Engine for Dump Trucks Tractor Truck

5 0 Reviews
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Wd615.47

  • weichai

发动机海报

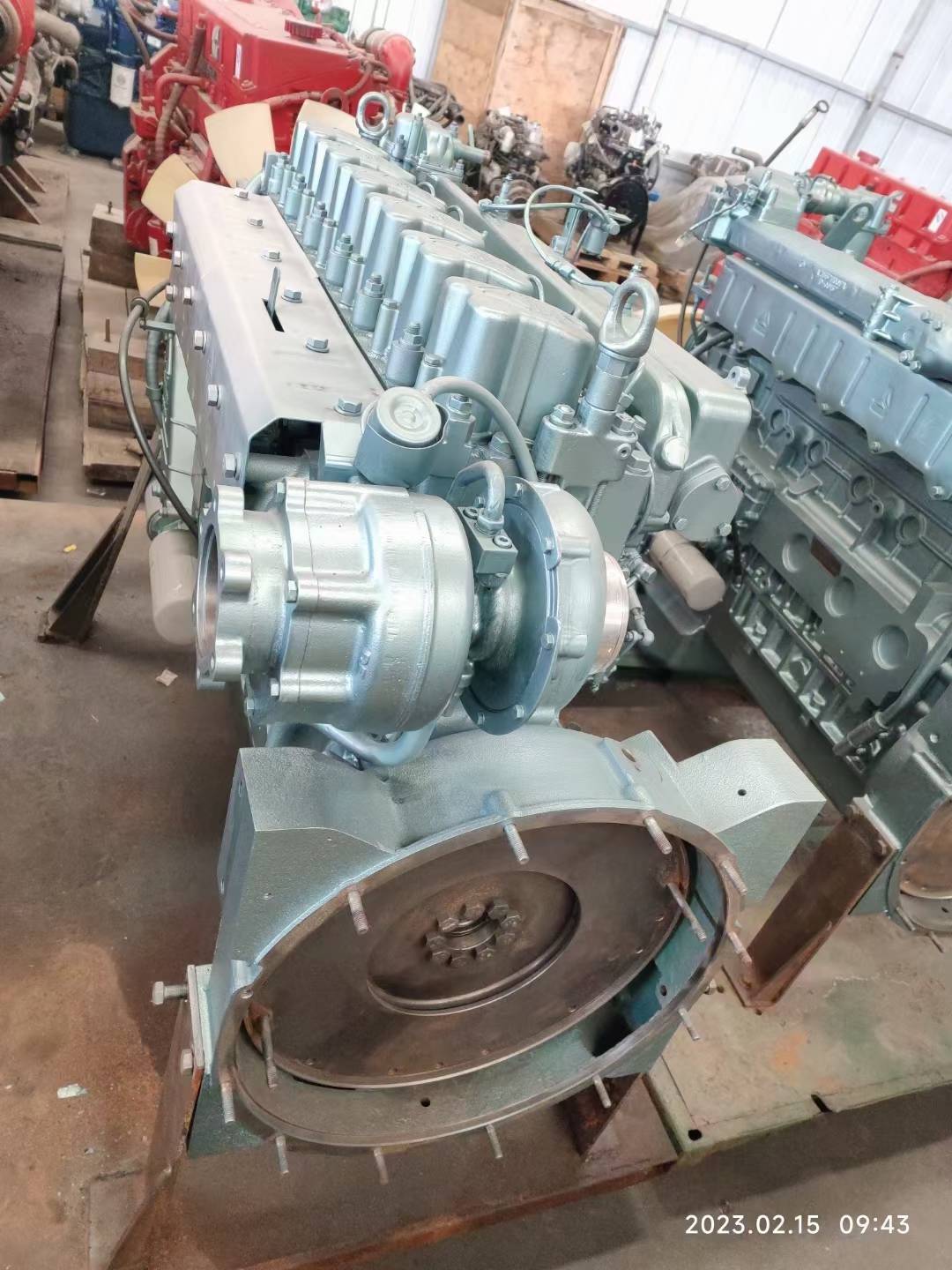

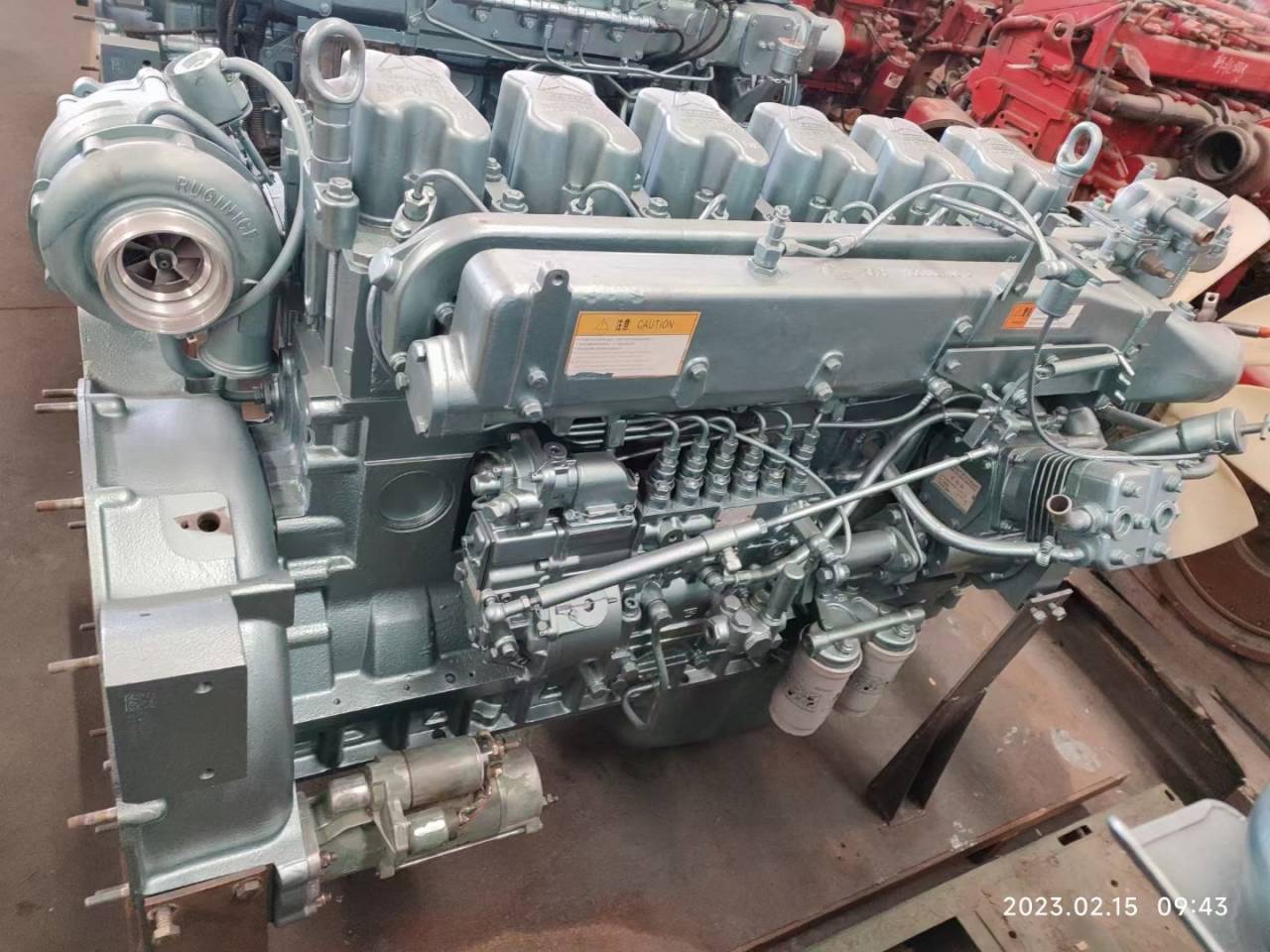

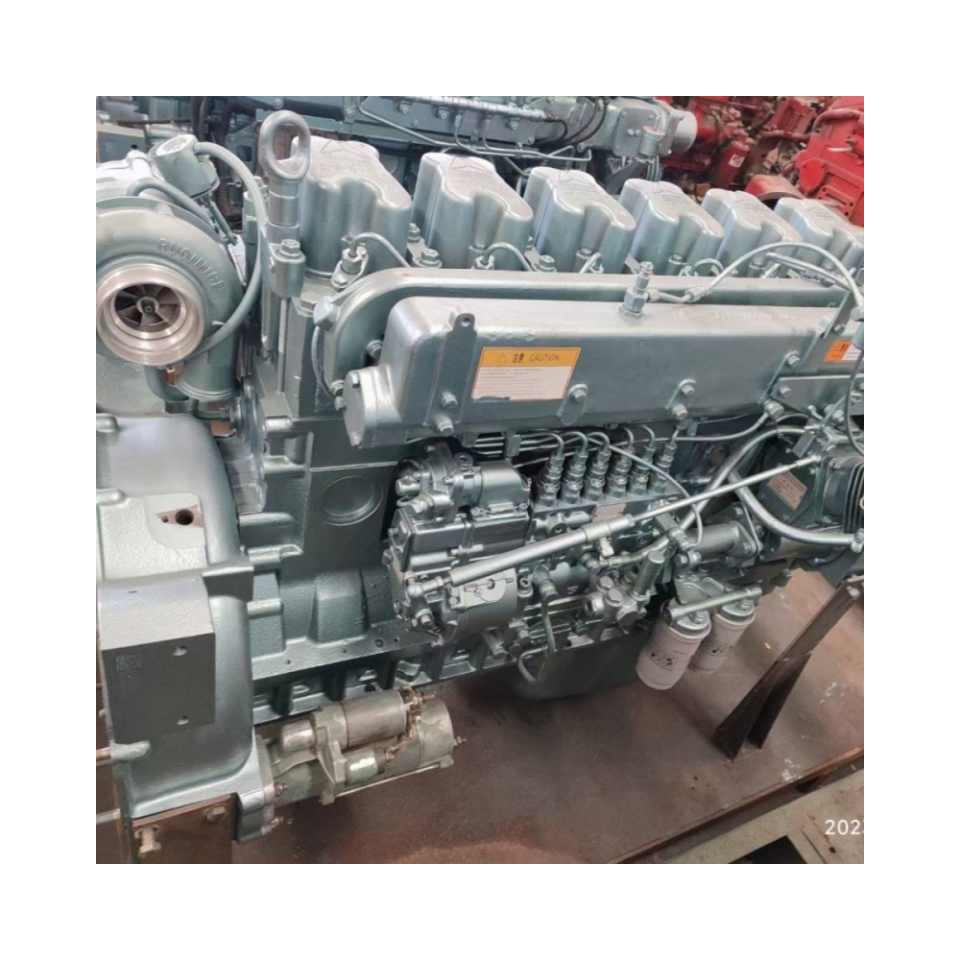

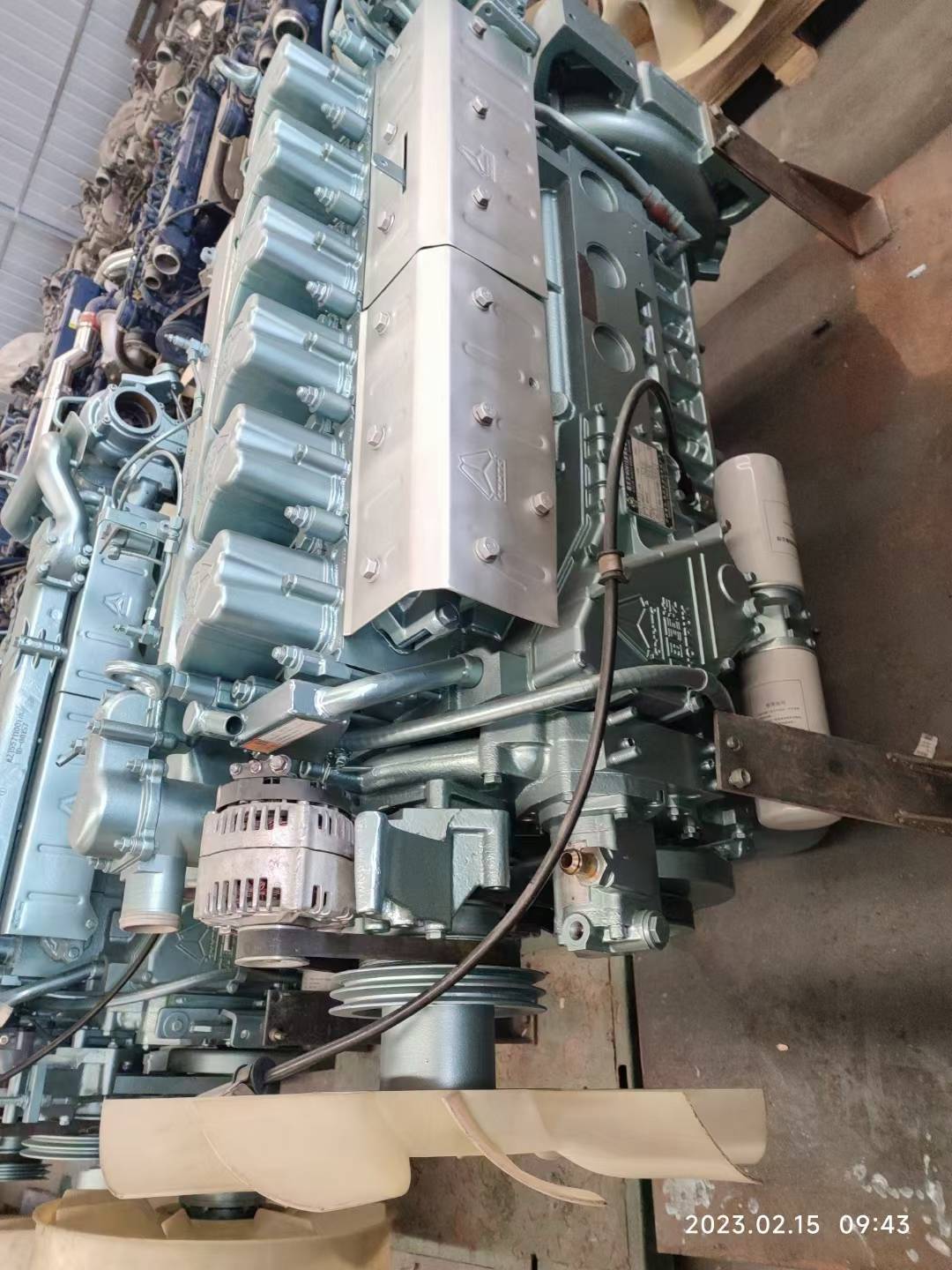

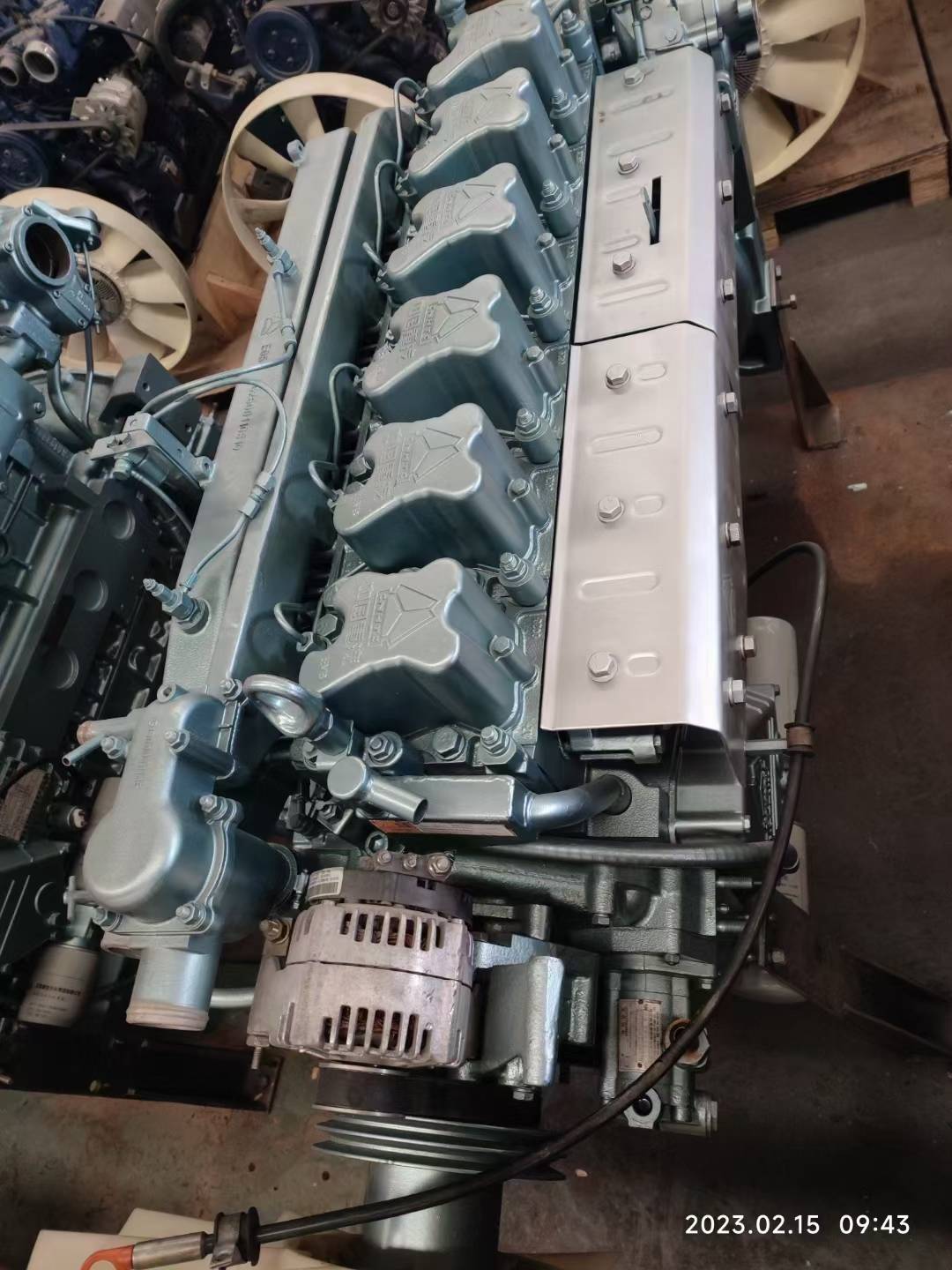

The WD615.47 is a high-performance, 6-cylinder, in-line, 4-stroke diesel engine renowned for its exceptional durability, reliable power, and fuel efficiency . With a substantial 9.726-liter displacement and featuring turbocharged and intercooled aspiration , this water-cooled engine is engineered to deliver consistent performance in demanding environments . Its proven technology and robust construction make it a trusted power source for heavy-duty trucks and machinery .

Key Technical Specifications

For a quick overview, here are the core specifications of the WD615.47 engine:

Parameter Specification
Engine Model WD615.47
Configuration In-line, 6-Cylinder, 4-Stroke
Aspiration Turbocharged and Intercooled
Displacement 9.726 L
Bore × Stroke 126 mm × 130 mm
Rated Power 273 kW (371 HP) @ 2200 rpm
Max. Torque 1500 N.m @ 1100-1600 rpm
Compression Ratio 17:1
Specific Fuel Consumption ≤193 g/kWh
Emission Standard Euro II
Cooling Method Water-Cooled
Weight (Bare Mass) Approx. 850 kg
Note: Specifications can vary depending on the specific application configuration. Refer to official technical data sheets for precise information.

Primary Applications & Equipment

The WD615.47 engine is built to be the powerhouse behind heavy-duty transportation :

  • Heavy-Duty Trucks: It is a key power source for SINOTRUK HOWO trucks, particularly models designed for robust applications like dump trucks .

Core Technologies & Key Features

  • Turbocharged and Intercooled Aspiration: The engine utilizes a turbocharger coupled with an air-to-air intercooler . This system forces more dense air into the cylinders, significantly boosting power output and torque while optimizing combustion for improved efficiency and lower emissions .

  • Efficient Direct Injection Fuel System: This engine employs a direct injection fuel system , which ensures precise fuel delivery and optimal combustion, leading to superior fuel economy and reliable power .

  • Robust Engine Design: Built for maximum durability, the engine features a sturdy construction with 6 cylinders in-line and a water-cooling system to maintain optimal operating temperatures under heavy loads, ensuring a long service life .

  • Low-Temperature Starting Capability: Equipped with an electronic control flame preheating device, the engine can be reliably started in extremely cold conditions, with capabilities for environments as low as -25°C .
