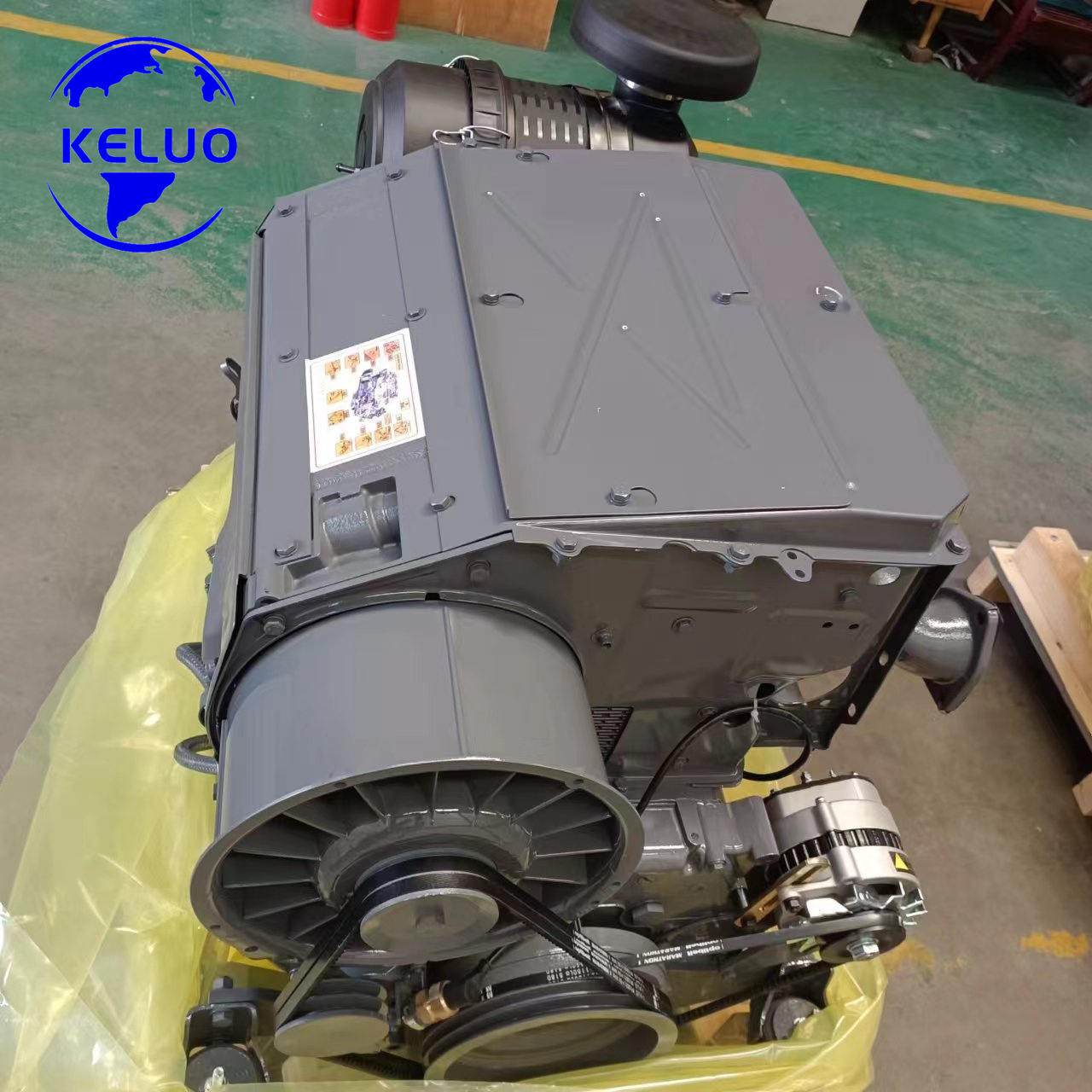

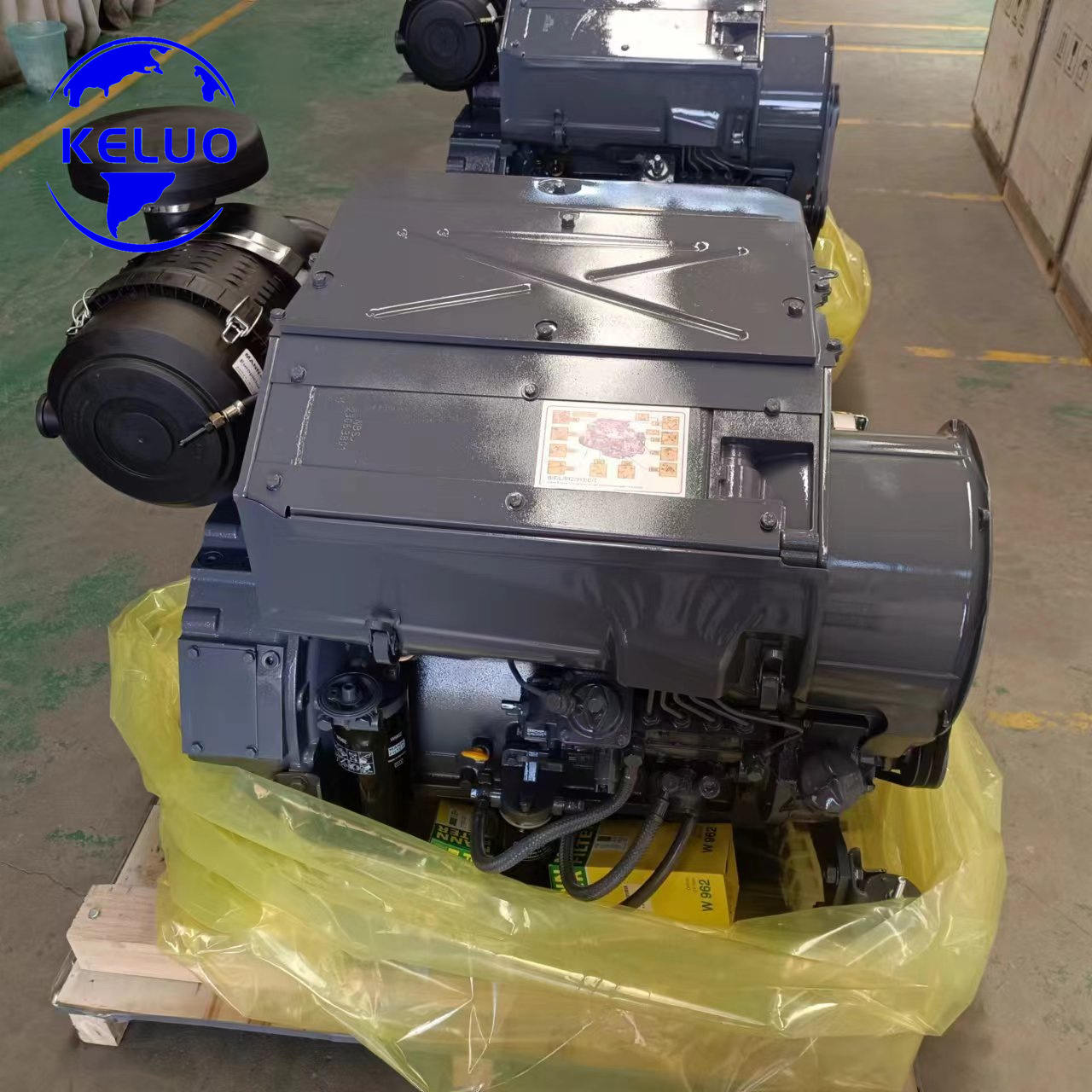

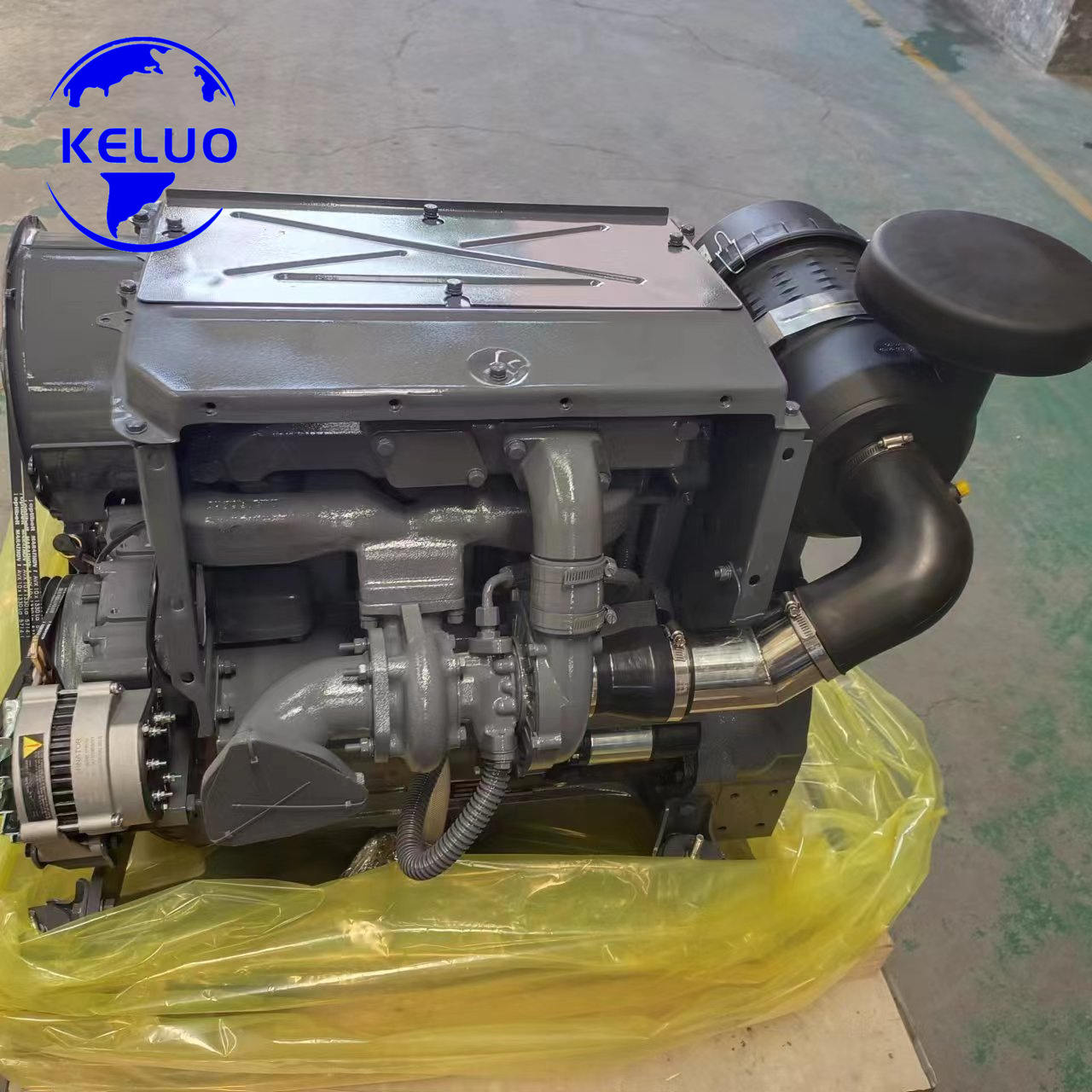

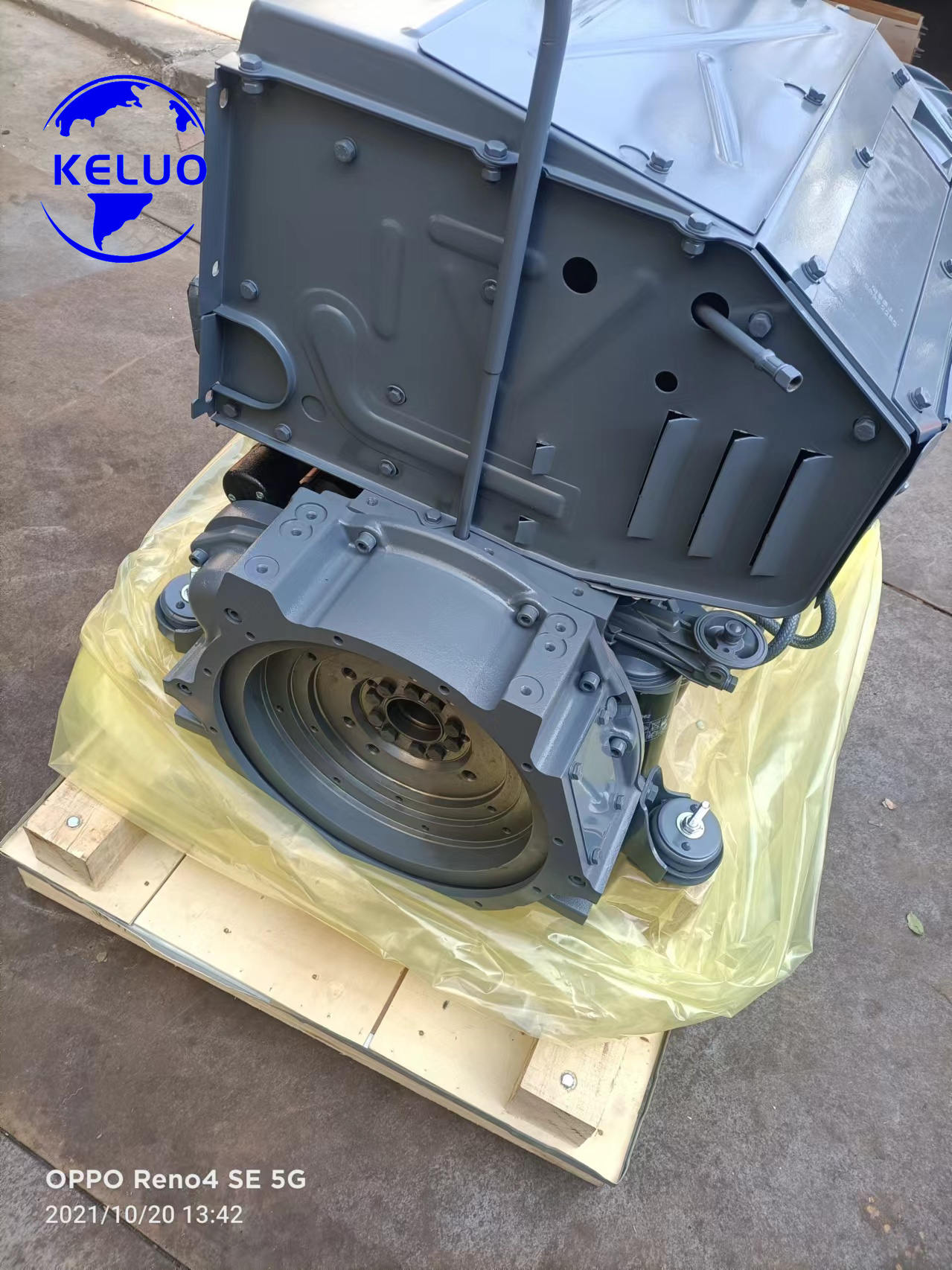

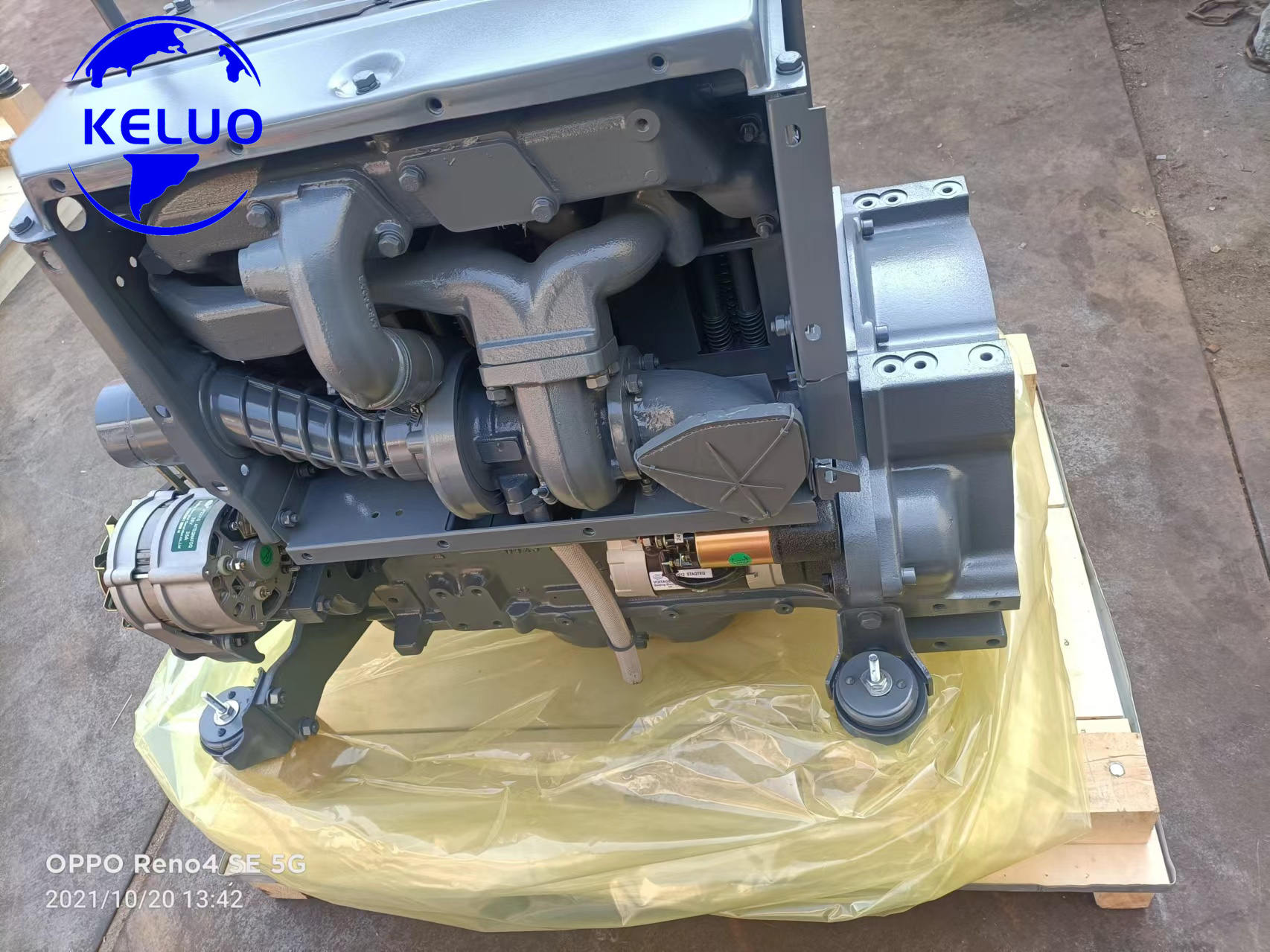

DEUTZ BF4L913: Compact Power, Unmatched Durability

The DEUTZ BF4L913 is a premium, turbocharged, 4-cylinder diesel engine that masterfully combines compact design with robust performance. As part of the legendary 913 series, it leverages advanced air-cooling technology and a proven direct injection system to deliver reliable power with exceptional fuel efficiency and low maintenance needs. Engineered to thrive in the toughest conditions, from scorching heat to freezing cold and dusty environments, the BF4L913 is the intelligent power choice for demanding industrial and mobile applications.

Primary Applications & Equipment

This versatile engine is the trusted power source for a wide range of machinery across multiple industries:

  • Construction Machinery: Vibratory rollers, compactors, light towers, welding generators.

  • Power Generation: Prime mover for generator sets (gensets).

  • Agricultural & Industrial Equipment: Tractors, irrigation pumps, conveyors, and material handling systems.

  • Special Vehicles & Marine: Auxiliary power for specialized municipal vehicles and marine applications.

Core Technologies & Key Features

The BF4L913 stands out through its integration of rugged, field-proven technologies:

  • Efficient Air-Cooling System: Eliminates complex radiators, hoses, and coolant, preventing issues like freezing, boiling, or leaks. This results in simpler operation, reduced maintenance, and superior reliability in extreme climates.

  • Turbocharged Performance: The "B" in its model designation signifies turbocharging. This technology forces more air into the cylinders, significantly boosting power output and torque from a compact engine footprint.

  • Direct Fuel Injection: Ensures precise fuel delivery and efficient combustion for optimal power, lower fuel consumption, and reduced emissions.

  • Designed for Serviceability: Built with a modular design philosophy, allowing for easier access to components, simplified routine maintenance, and shorter downtime, which translates to lower total cost of ownership.

Technical Specifications

Below is a summary of the key technical data for the DEUTZ BF4L913 engine:

Feature Specification
Model DEUTZ BF4L913
Configuration In-line, 4-Cylinder
Cooling System Air-Cooled
Aspiration Turbocharged
Combustion System Direct Injection
Bore x Stroke 102 mm x 125 mm
Displacement 4.086 L
Power Output 47-78 kW across various RPM settings (e.g., 47 kW @ 1500 rpm; 78 kW @ 2500 rpm).
Weight (Net) ~350 - 440 kg (varies by specific configuration)
