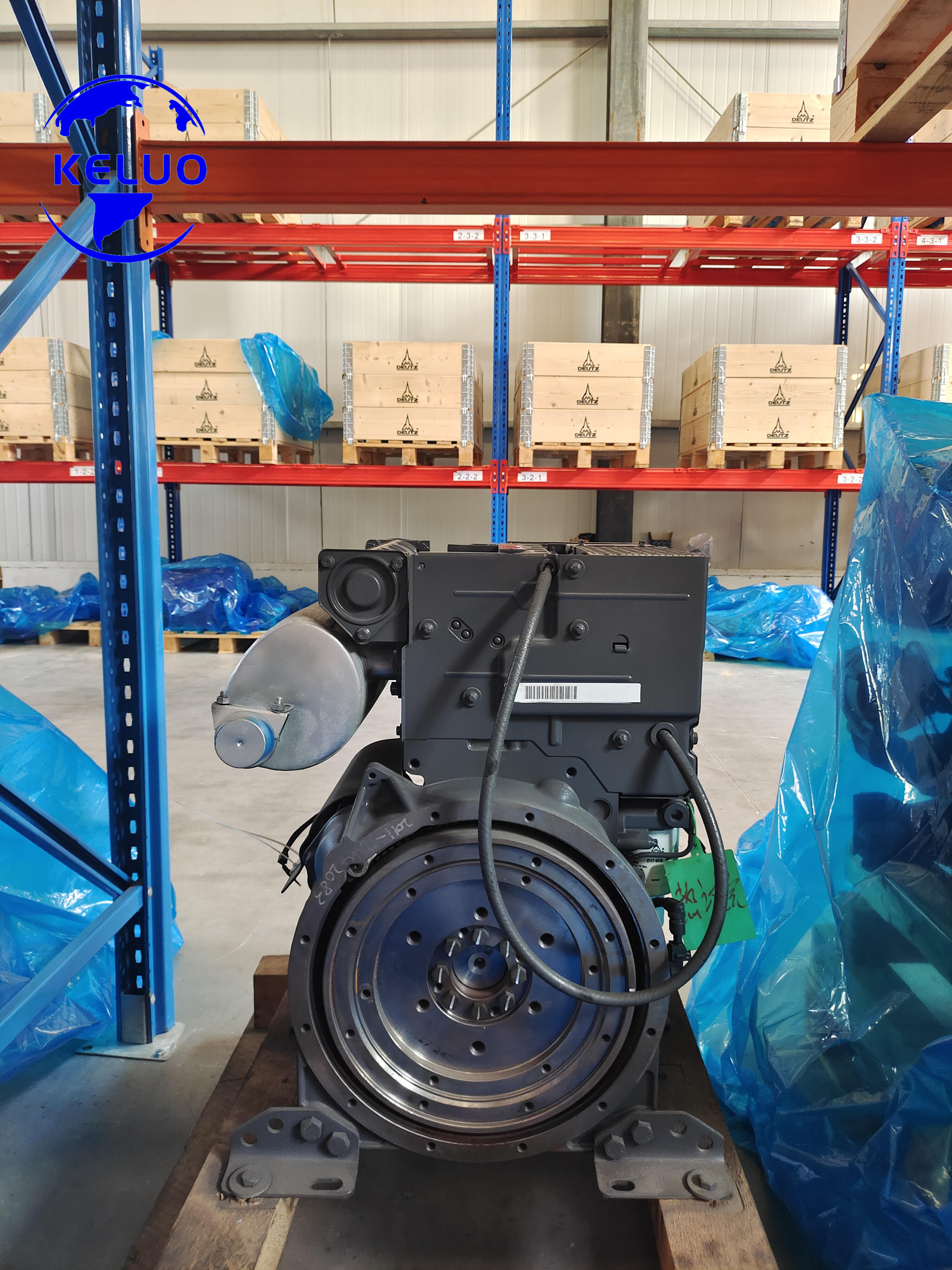

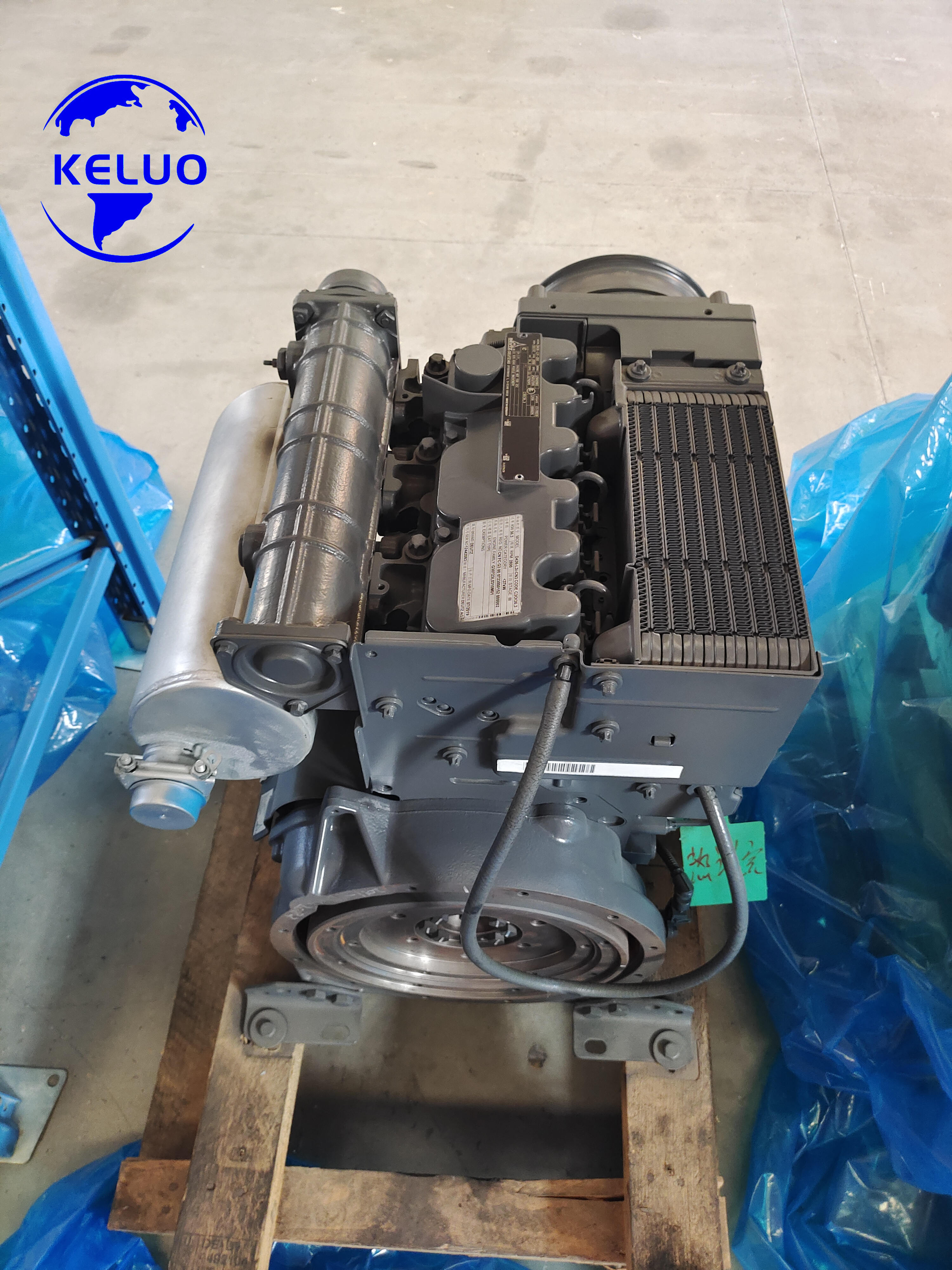

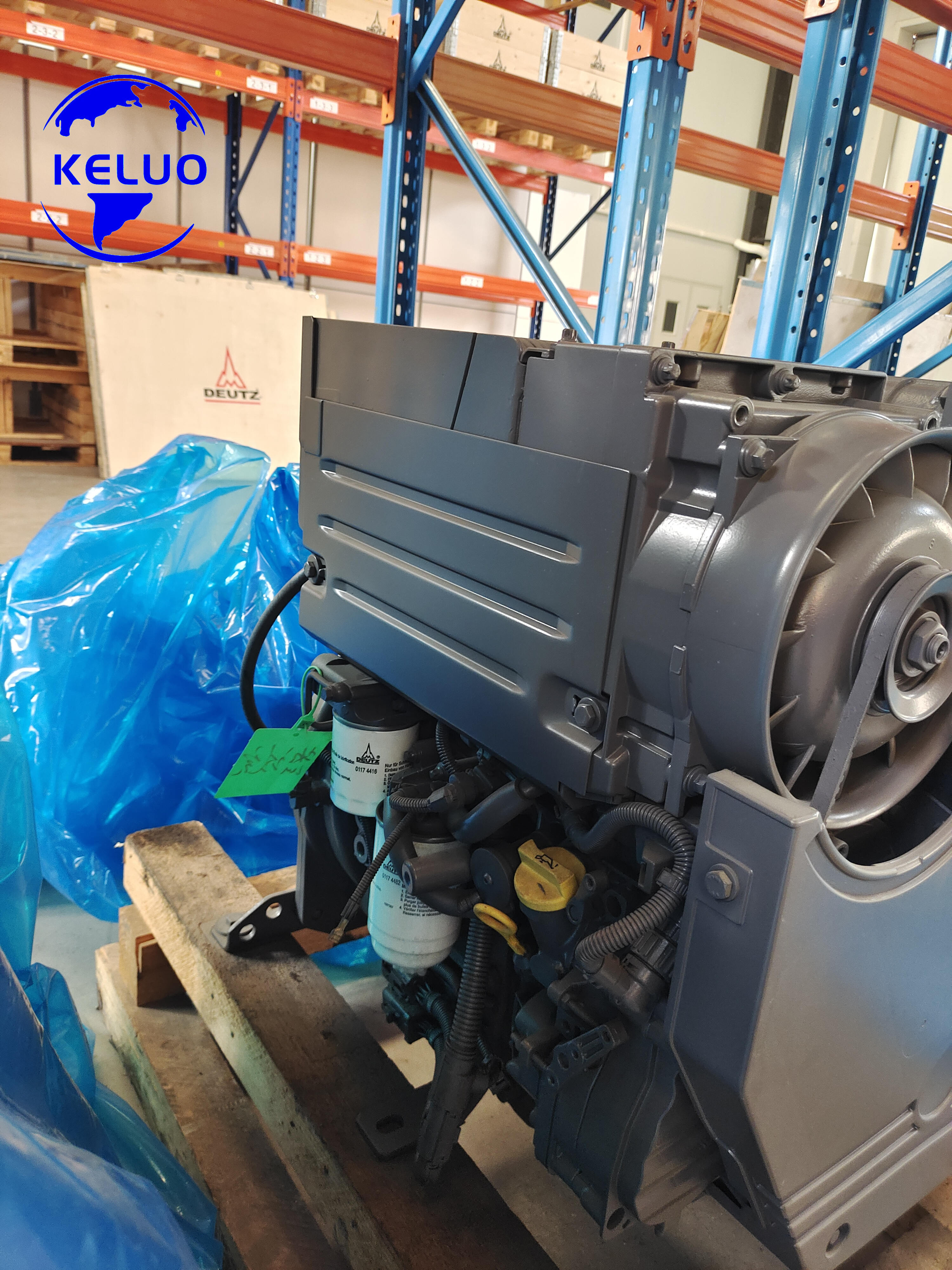

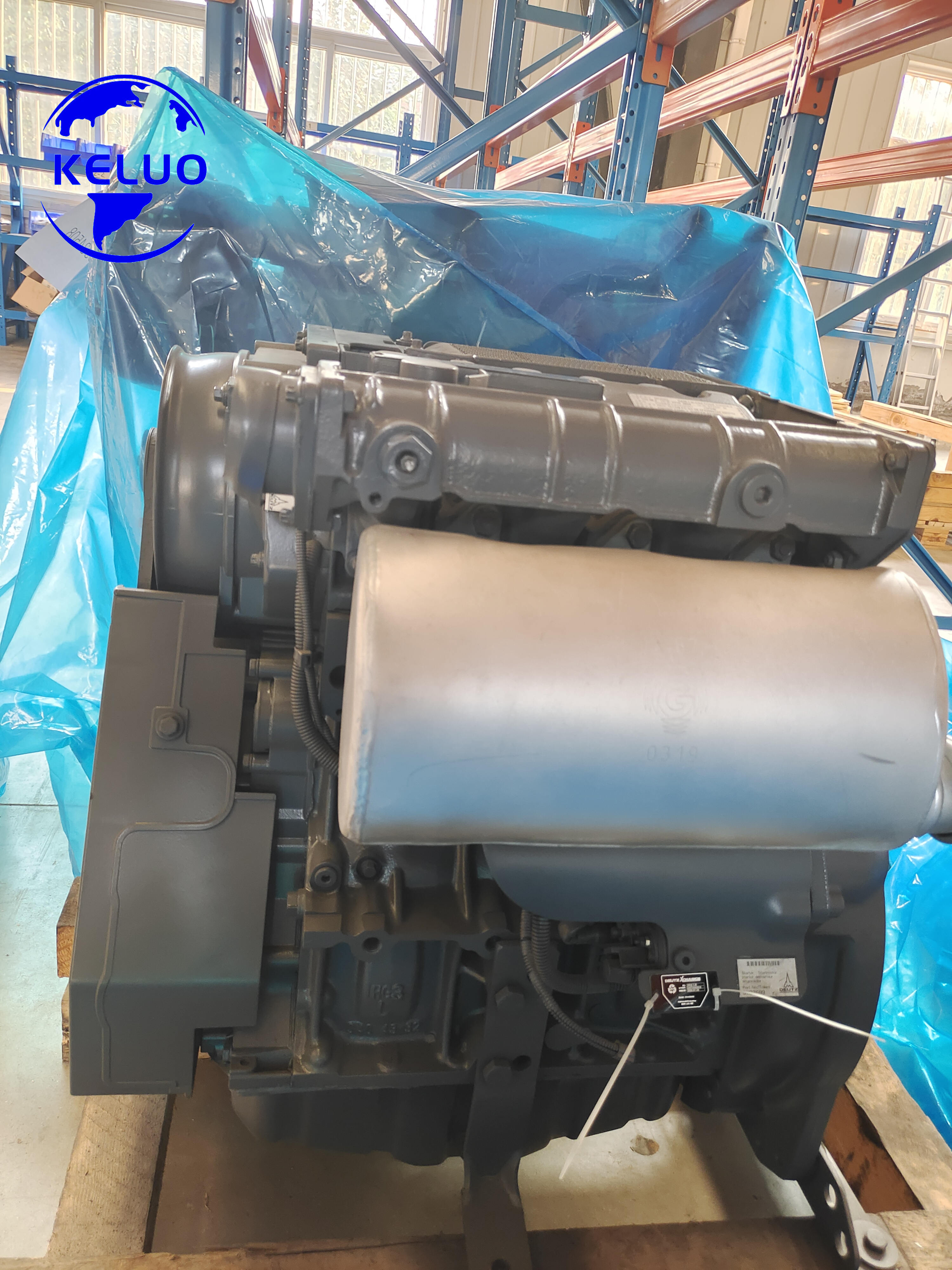

DEUTZ D2011 L03 i: Compact and Reliable Power for Versatile Applications

The DEUTZ D2011 L03 i is an efficient, in-line 3-cylinder diesel engine designed for compact machinery where reliable performance, fuel economy, and low total cost of ownership are critical. This naturally aspirated engine utilizes advanced fuel injection and combustion technologies to deliver robust power with minimal emissions, making it an ideal power source for a wide range of equipment.

Target Applications & Equipment

This compact engine is engineered to power a versatile range of light-duty and compact equipment across various sectors. Its typical applications include:

  • Compact Construction Machinery: Small excavators, mini loaders, light towers, and compactors.

  • Agricultural & Horticultural Equipment: Irrigation pumps, small tractors, and specialized implements.

  • Material Handling: Warehouse equipment and forklifts.

  • Stationary & Auxiliary Power: Prime mover for small generator sets and industrial pumps.

Core Technologies & Key Features

The D2011 L03 i incorporates several key technologies that define its reliable and economical operation:

  • Efficient Combustion System: It features a direct fuel injection system that enables highly efficient combustion, providing strong power output while maintaining low fuel consumption.

  • Robust and Simple Design: As a naturally aspirated, air-cooled engine, it has a straightforward design that eliminates the complexity of turbochargers and liquid cooling systems, enhancing reliability and ease of maintenance in harsh environments.

  • Optimized for Low Operational Cost: The engine is designed for minimal maintenance and low wear. Key features include very long oil change intervals (up to 1,000 operating hours) and globally tolerant fuel compatibility, even with high-sulfur fuels, which significantly reduces lifetime operating expenses.

  • Environmental Compliance & Low Noise: The engine is designed to meet relevant emission standards through its efficient combustion. It also incorporates vibration damping and noise insulation technology, resulting in smoother and quieter operation.

Technical Specifications

Below is a summary of the core technical data for the DEUTZ D2011 L03 i diesel engine:

Parameter Specification
Model DEUTZ D2011 L03 i
Configuration In-line, 3-Cylinder
Aspiration Naturally Aspirated
Cooling System Air-Cooled
Fuel Injection Direct Injection (Mechanical Fuel Pump)
Bore x Stroke 94 mm x 112 mm
Displacement 2.33 L (2331 cc)
Rated Power / Speed 36 kW (48 hp) @ 2800 rpm
Dimensions (approx.) 800 x 700 x 950 mm (LxWxH)
Net Weight (approx.) 265 kg
