Deutz Diesel Generator Engine Bf8m1015cp-La G5 560kw for Large Excavator Machinery

5 0 Reviews
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • BF8M1015CP-LA G5

  • Deutz

发动机海报

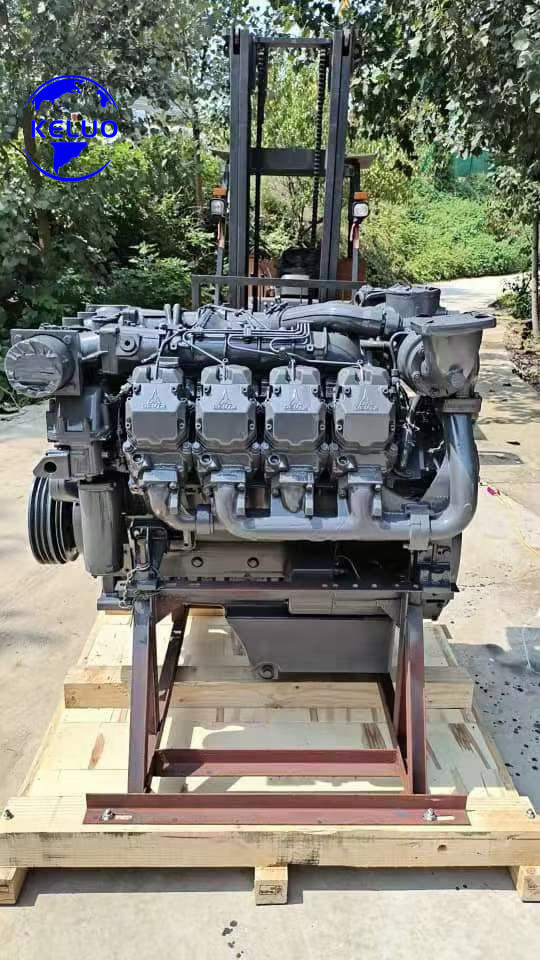

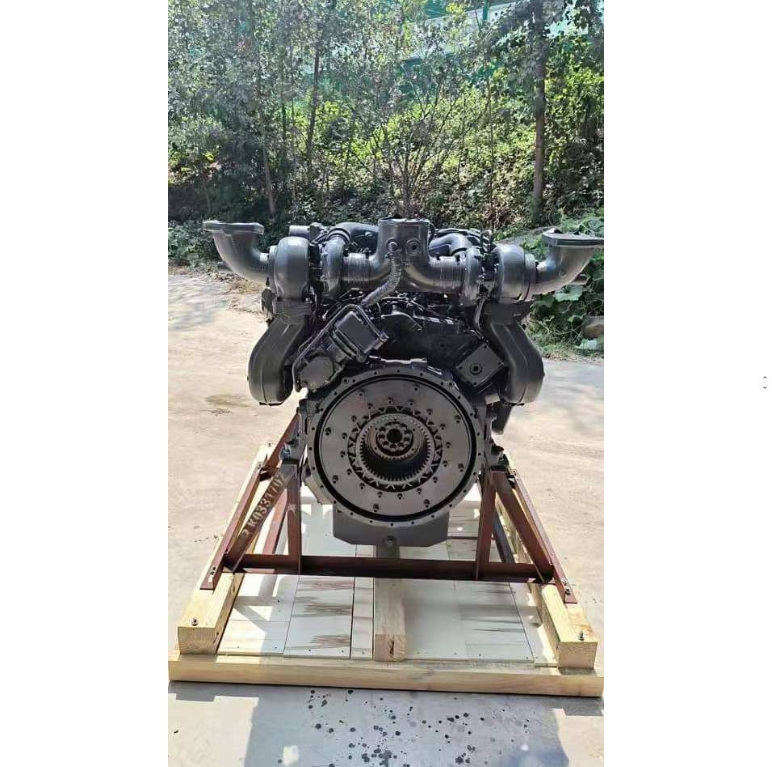

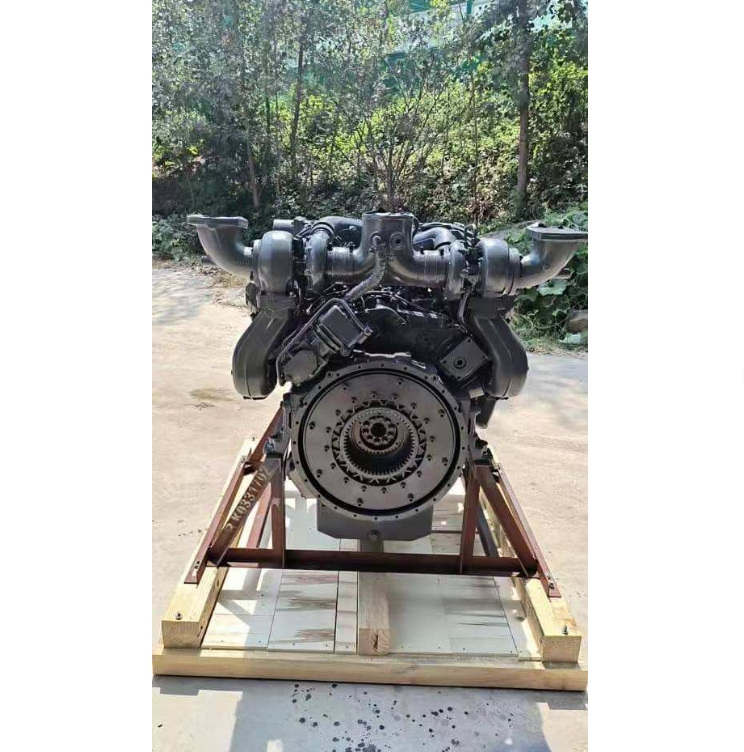

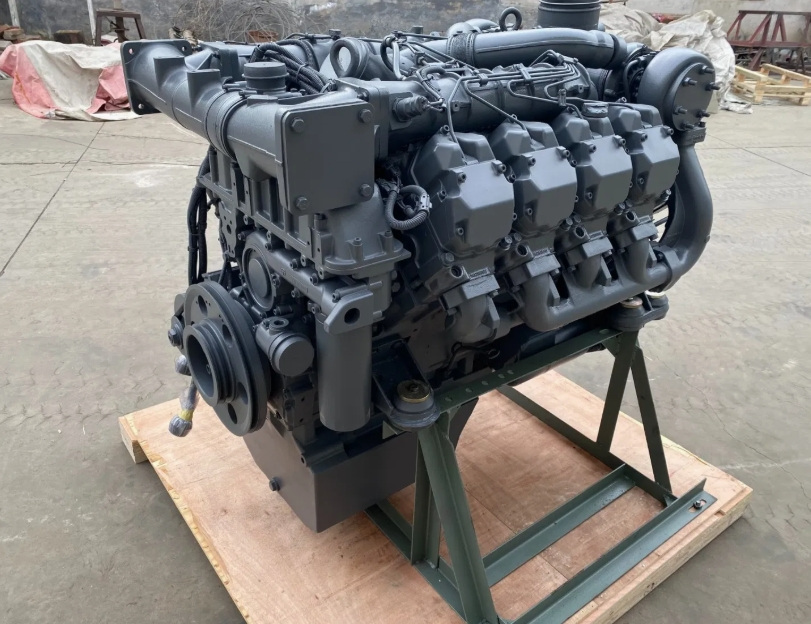

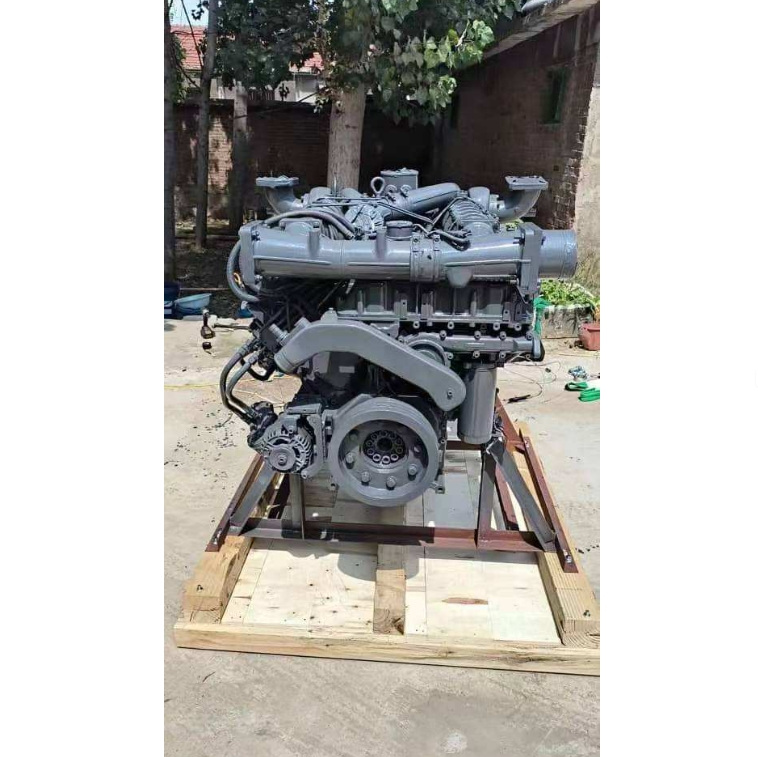

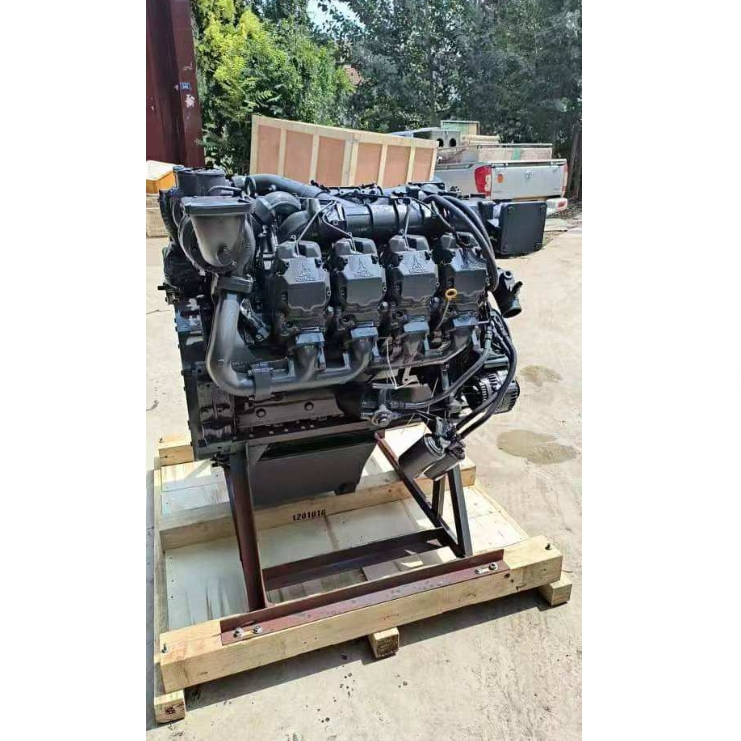

The Deutz BF8M1015CP-LA G5 is a robust and efficient 8-cylinder, V-type, 4-stroke diesel engine renowned for its exceptional durability, reliable power, and superior fuel economy . With a substantial 15.874-liter displacement and featuring turbocharged aspiration with charge air cooling, this water-cooled engine is engineered to deliver consistent performance in the most demanding industrial and power generation environments . Its proven technology and robust construction make it a trusted power source for critical applications such as generator sets and pump systems .

Key Technical Specifications

For a quick overview, here are the core specifications of the BF8M1015CP-LA G5 engine:

Parameter Specification
Configuration V-type, 8-Cylinder, 90° angle, 4-Stroke
Aspiration Turbocharged and Charge Air Cooled
Displacement 15.874 L
Bore × Stroke 132 mm × 145 mm
Rated Power/Speed 560 kW @ 1500 rpm (50Hz)
Fuel Consumption 196 g/kW·h @ rated power
Emission Standard EURO II
Cooling System Water-Cooled
Weight (Net Dry) Approx. 1060 kg (with flywheel & alternator)
Dimensions (L×W×H) ~1151 × 955 × 1174 mm

Primary Applications & Equipment

The Deutz BF8M1015CP-LA G5 engine is built to be a dependable power source for a range of heavy-duty equipment , with its most prominent application being:

  • Power Generation: It is a key power source for generator sets, serving as both prime and standby power . You can find it integrated into units ranging from 500kW to 700kVA .

  • Pump Systems: The engine is also ideally suited for demanding fire-fighting, irrigation, and drainage pump systems .

  • Other Applications: Its reliable design also makes it suitable for various construction machinery and vehicles .

Core Technologies & Key Features

  • Advanced Four-Valve Technology & Turbocharging: The engine utilizes four-valve technology and a turbocharger with charge air cooling . This ensures optimal air management for efficient combustion, leading to high power density, excellent torque response, and lower emissions .

  • Efficient Fuel System: The engine employs a fuel system with a mechanical governor, contributing to its reliable performance and low fuel consumption .

  • Robust and Compact Design: Built for maximum durability, the engine features a very compact and powerful design with a high power-to-volume ratio . The use of a beltless fan drive and separate gear-driven PTOs enhances reliability and reduces maintenance needs .

  • Low Noise and Vibration: The engine is designed with acoustically optimized components, resulting in extremely low noise emission, which significantly reduces the need for extensive insulation measures .

  • Easy Maintenance and Long Service Life: Designed with clearly arranged and easily accessible service points on one side, inspection and maintenance work is quick and straightforward . Features like long oil change intervals (500 running hours) contribute to low operating costs and long engine life .
