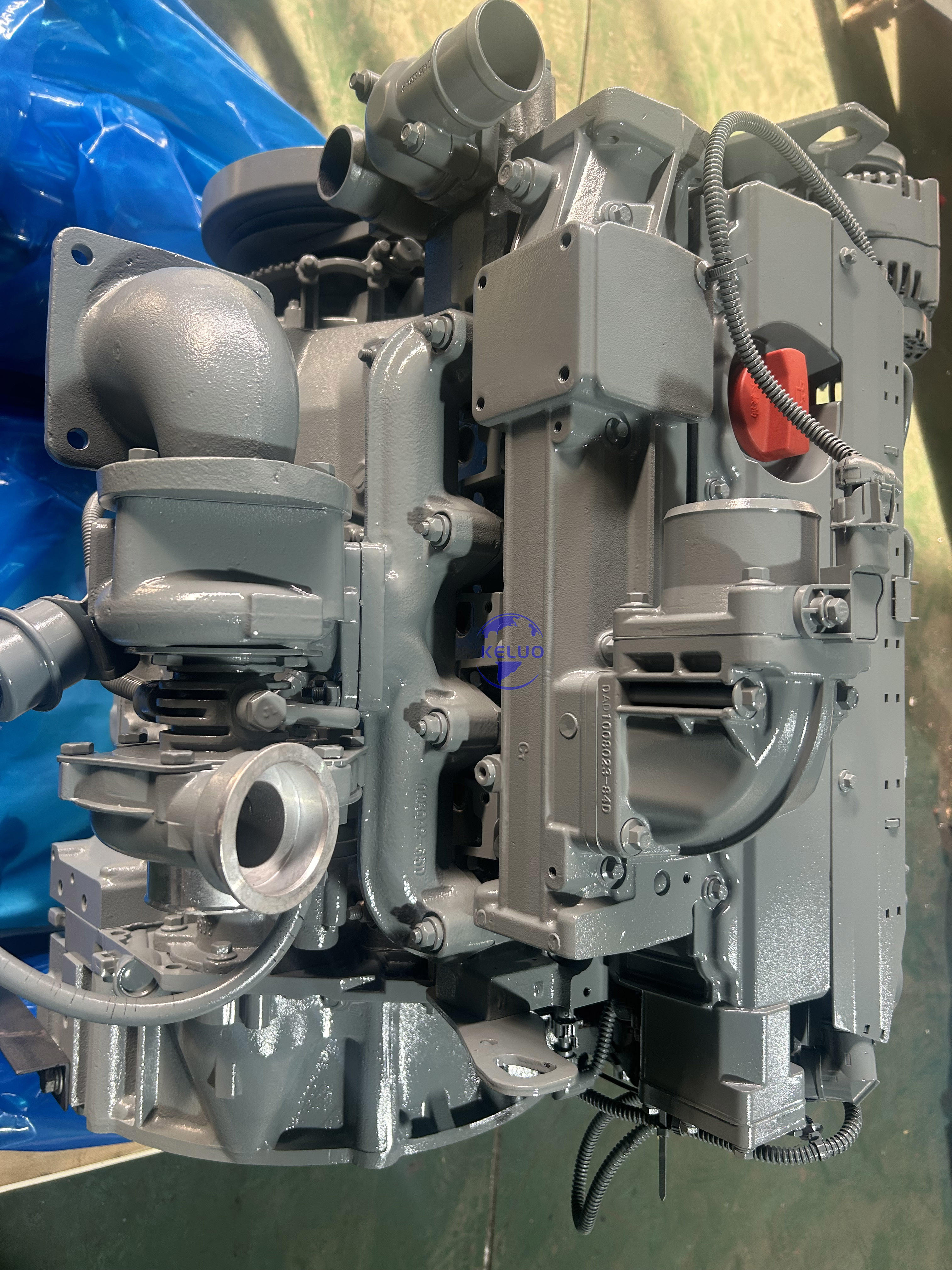

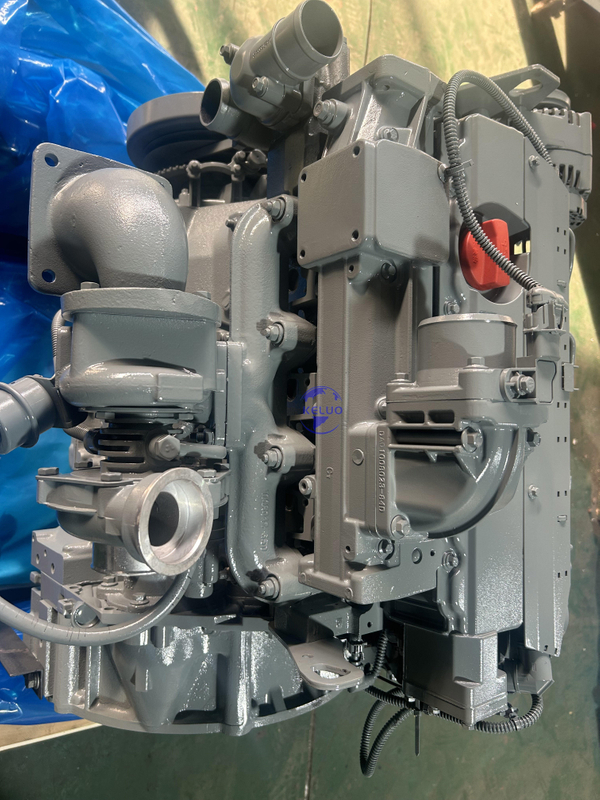

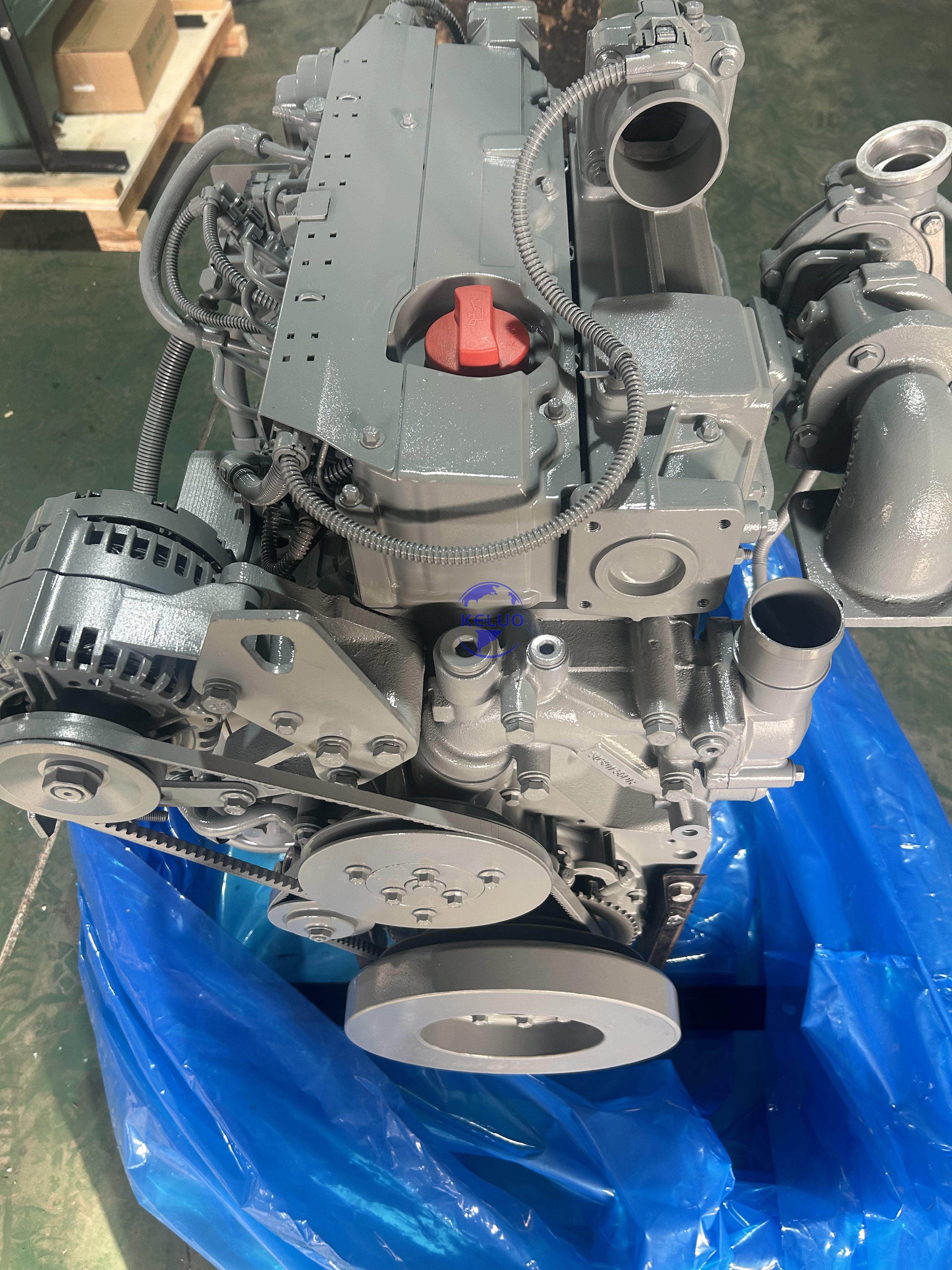

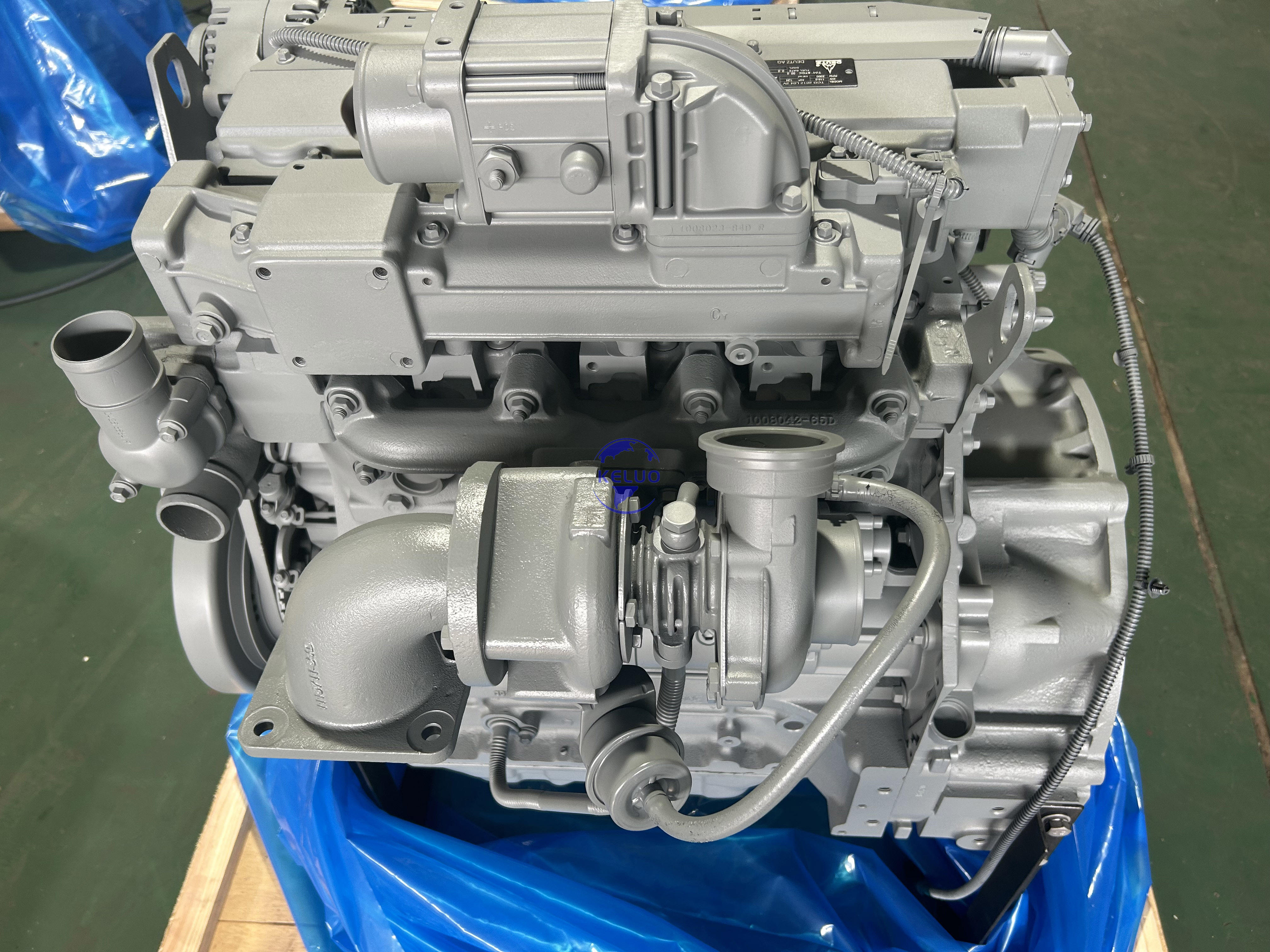

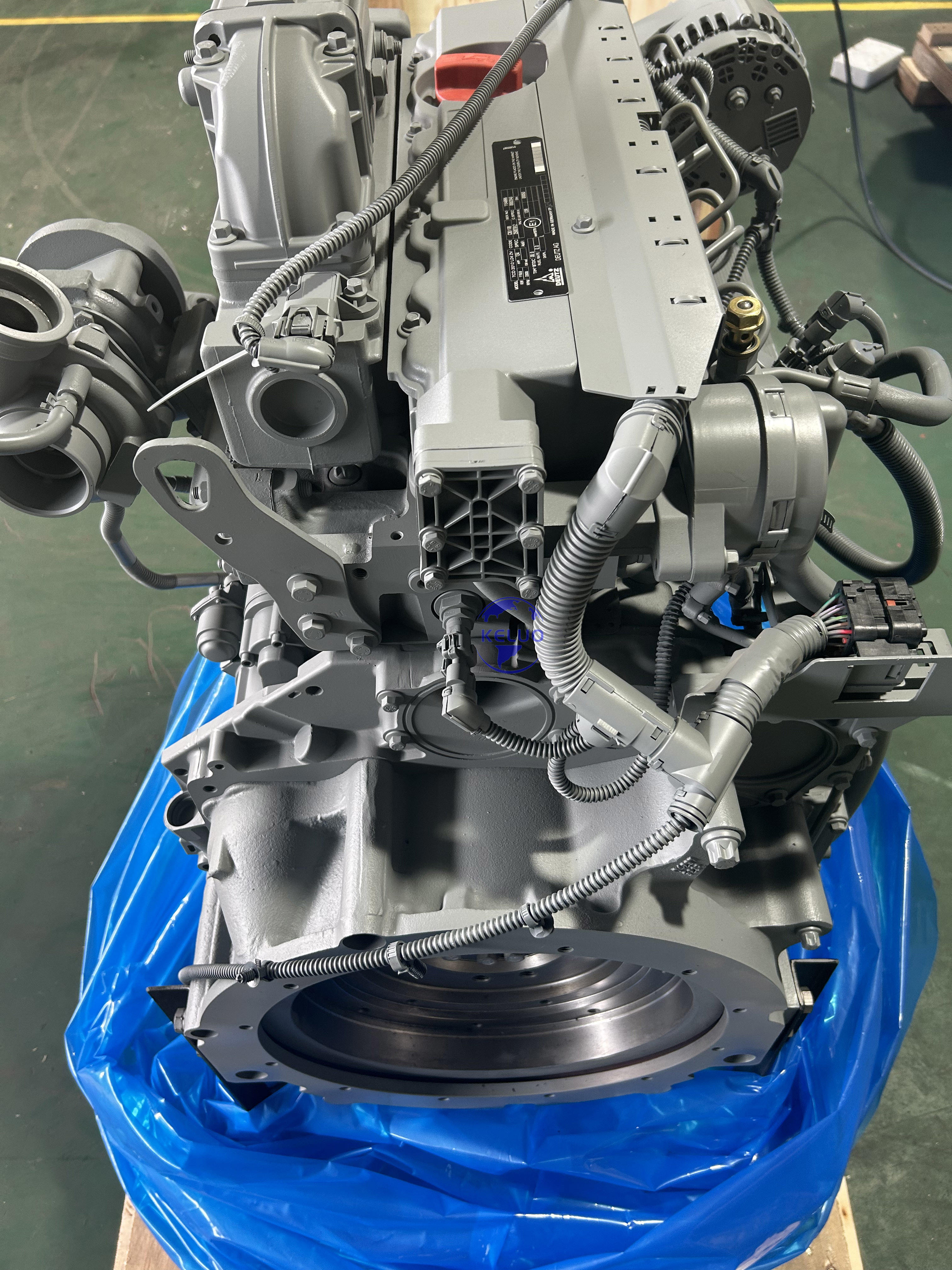

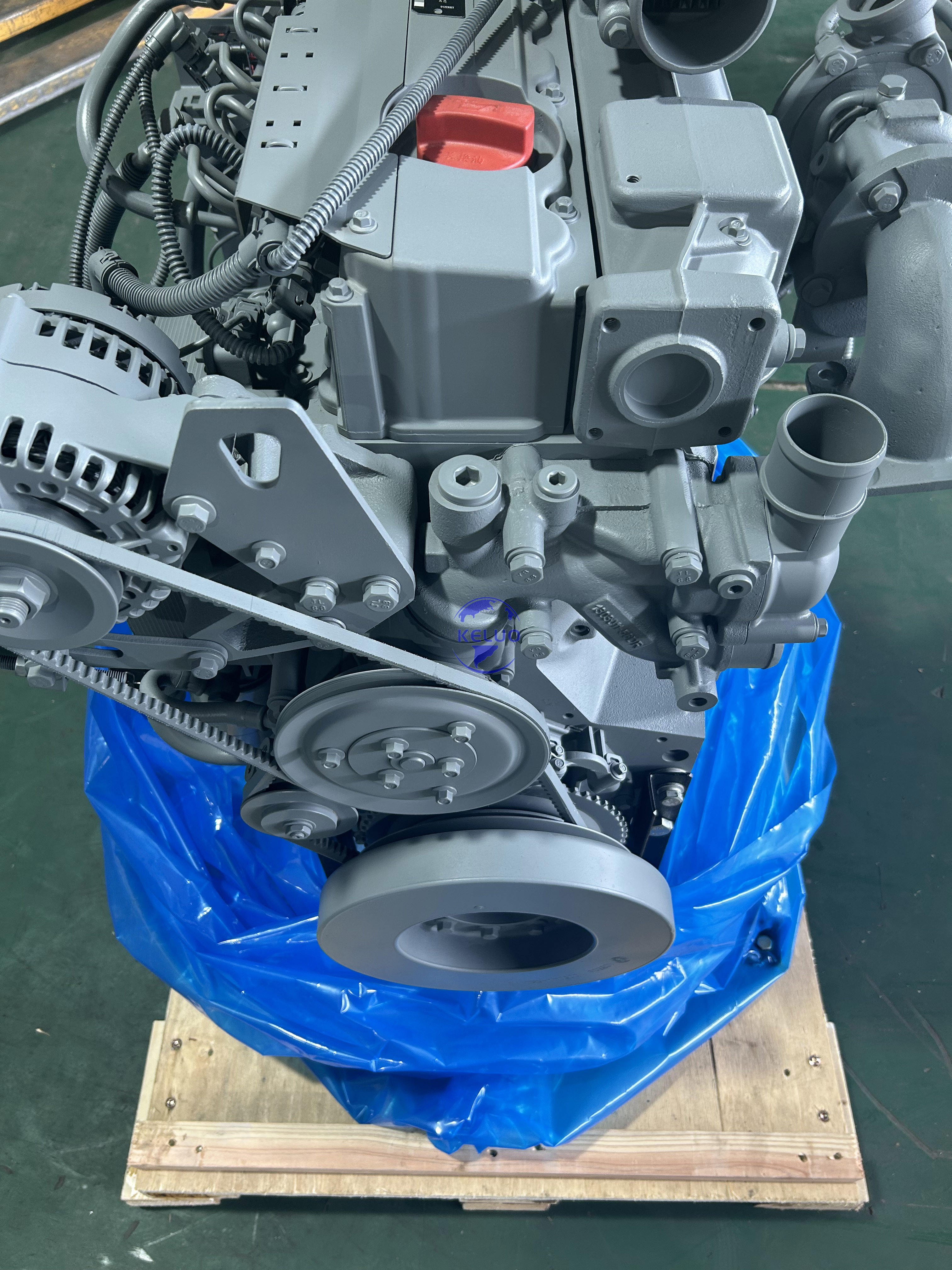

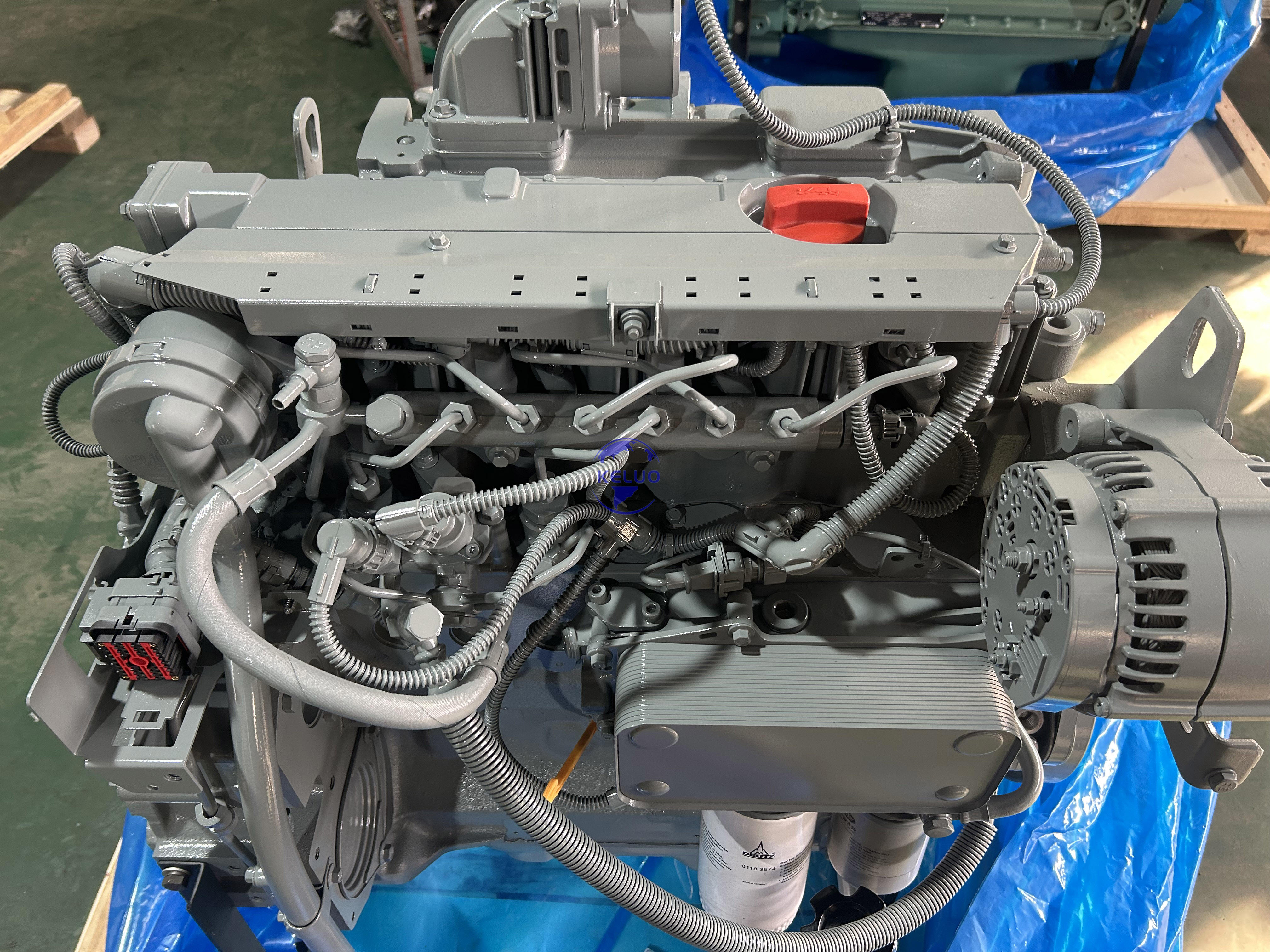

Deutz TCD2012L042V Excavator Diesel Water Cooled Engine for Industrial Farm Machinery

5 0 Reviews
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TCD2012L042V

  • Deutz

发动机海报

The Deutz TCD2012L042V is a robust and efficient 4-cylinder, in-line, 4stroke diesel engine renowned for its exceptional durability, reliable power, and superior fuel economy . With a substantial 4.04-liter displacement and featuring turbocharged and aftercooled aspiration, this water-cooled engine is engineered to deliver consistent performance in the most demanding construction and industrial environments . Its proven technology and robust construction make it a trusted power source for a wide range of heavy-duty equipment .

Key Technical Specifications

For a quick overview, here are the core specifications of the TCD2012L042V engine:

Parameter Specification
Configuration In-line, 4-Cylinder, 4-Stroke
Aspiration Turbocharged and Aftercooled
Displacement 4.04 L
Bore × Stroke 101 mm × 126 mm
Rated Power/Speed 103 kW (138 hp) @ 2400 rpm
Max. Torque/Speed 520 Nm @ 1600 rpm
Compression Ratio 18:1
Specific Fuel Consumption 204 g/kWh
Emission Standard EU Stage IIIA / US EPA Tier 3
Cooling System Water-Cooled
Weight (Net Dry) Approx. 400 kg
Dimensions (L×W×H) ~791 × 628 × 823 mm

Primary Applications & Equipment

The Deutz TCD2012L042V engine is built to be a dependable power source for various types of heavy equipment . Its primary application includes:

  • Excavators: It is a key power source for excavators .

  • General Industrial Machinery: The engine's reliable design also makes it suitable for various industrial applications .

Core Technologies & Key Features

  • Advanced High-Pressure Fuel Injection: The engine utilizes a high-pressure fuel injection system . This technology ensures precise fuel delivery, leading to optimized combustion, reduced fuel consumption, and lower emissions .

  • Efficient Turbocharging and Aftercooling: The turbocharged and aftercooled system forces more dense, cool air into the cylinders, significantly boosting power output and torque while optimizing combustion for improved fuel efficiency .

  • Robust Engine Design for Longevity: Built for maximum durability, the engine features a sturdy construction and a robust design that allows worldwide operation even with high sulphur fuels, ensuring a long service life .

  • Easy Maintenance and Serviceability: Designed with serviceability in mind, all parts for maintenance are located on one side of the engine . Long oil change intervals and easy changing of engine fluids reduce the running costs and increase the availability of the machinery
