Mixer Truck Engine Assembly WP7.270-E50 Original New Weichai Diesel Engine

5 0 Reviews
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • WP7.270-E50

  • weichai

发动机海报

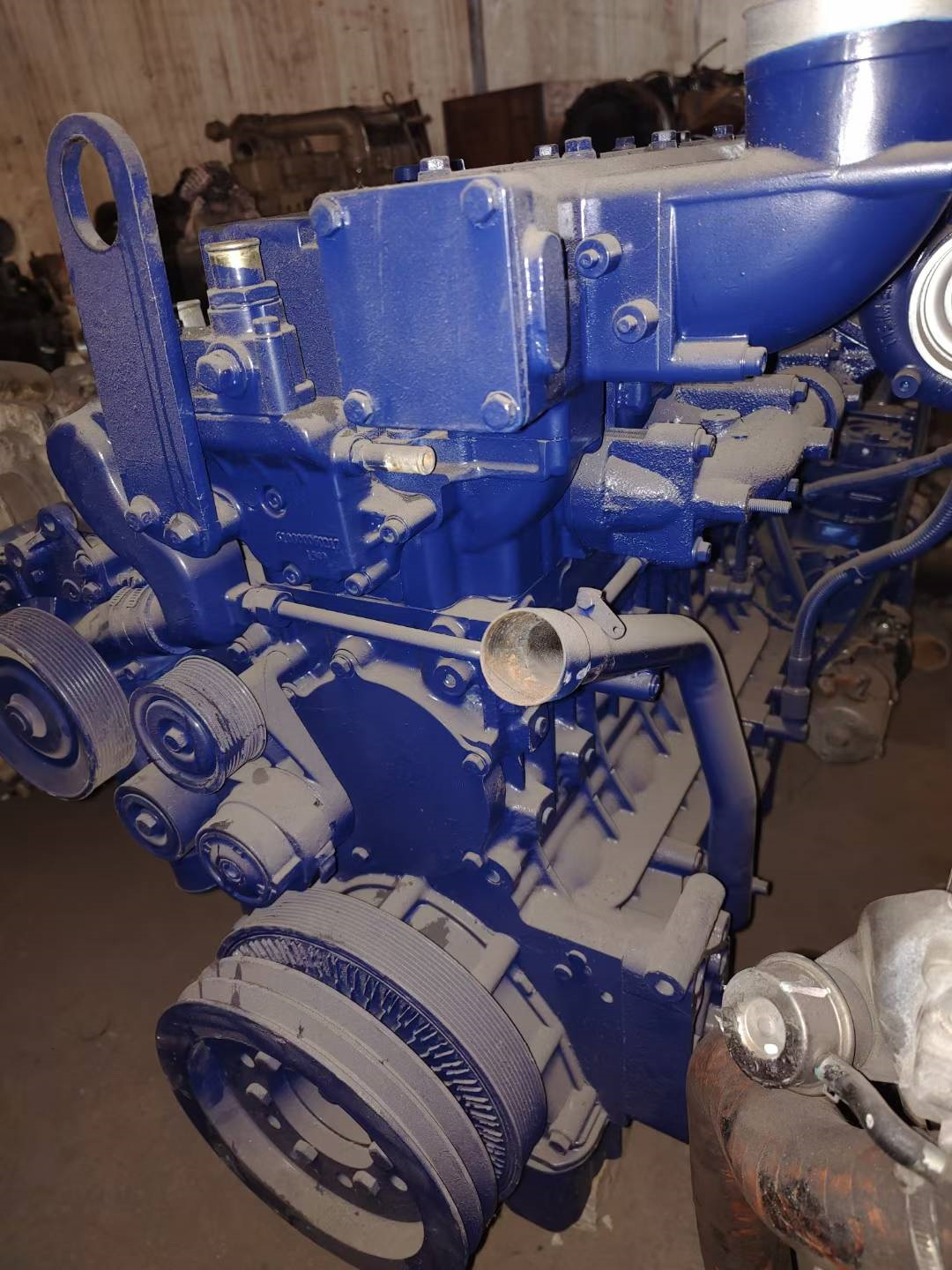

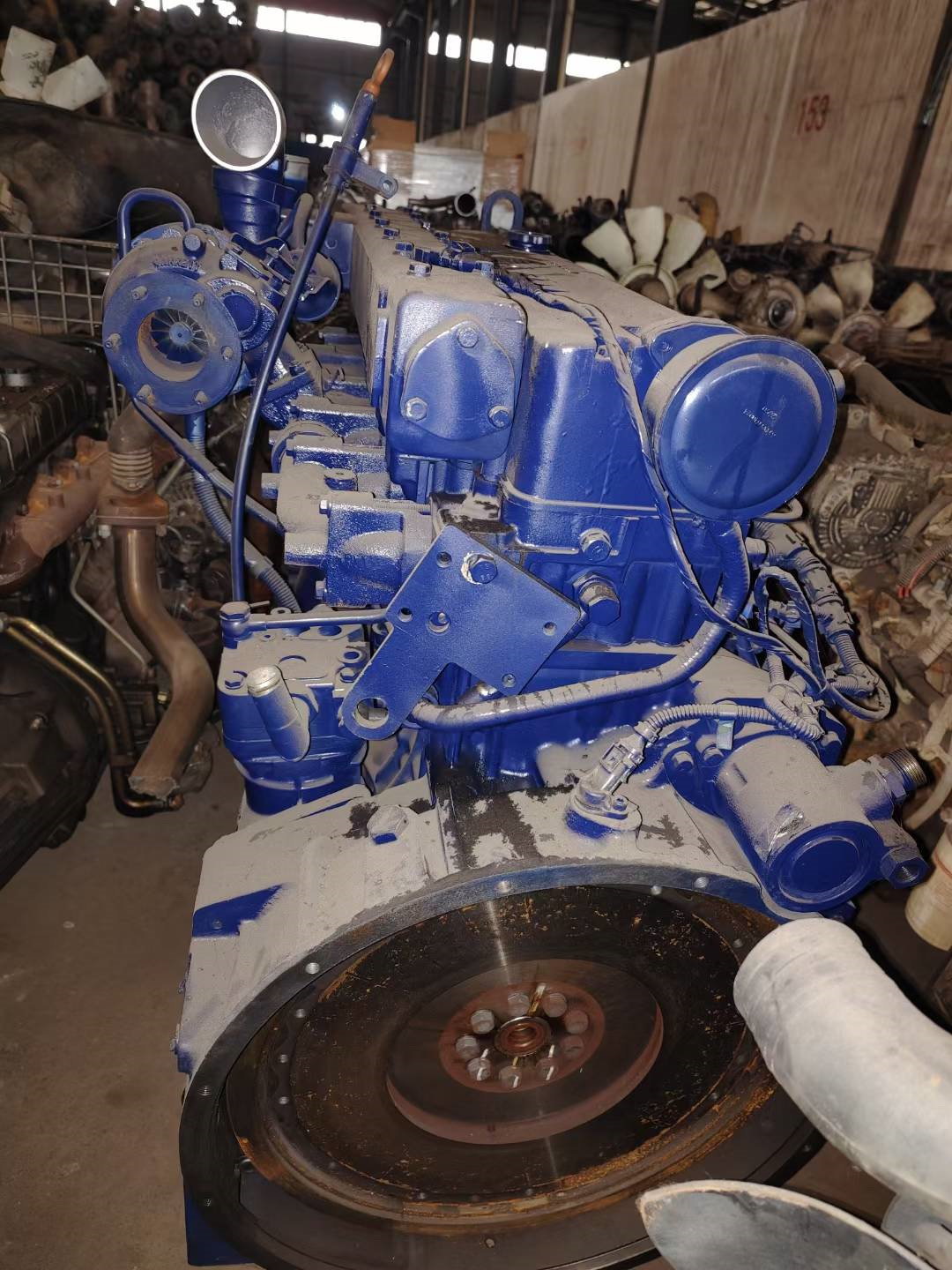

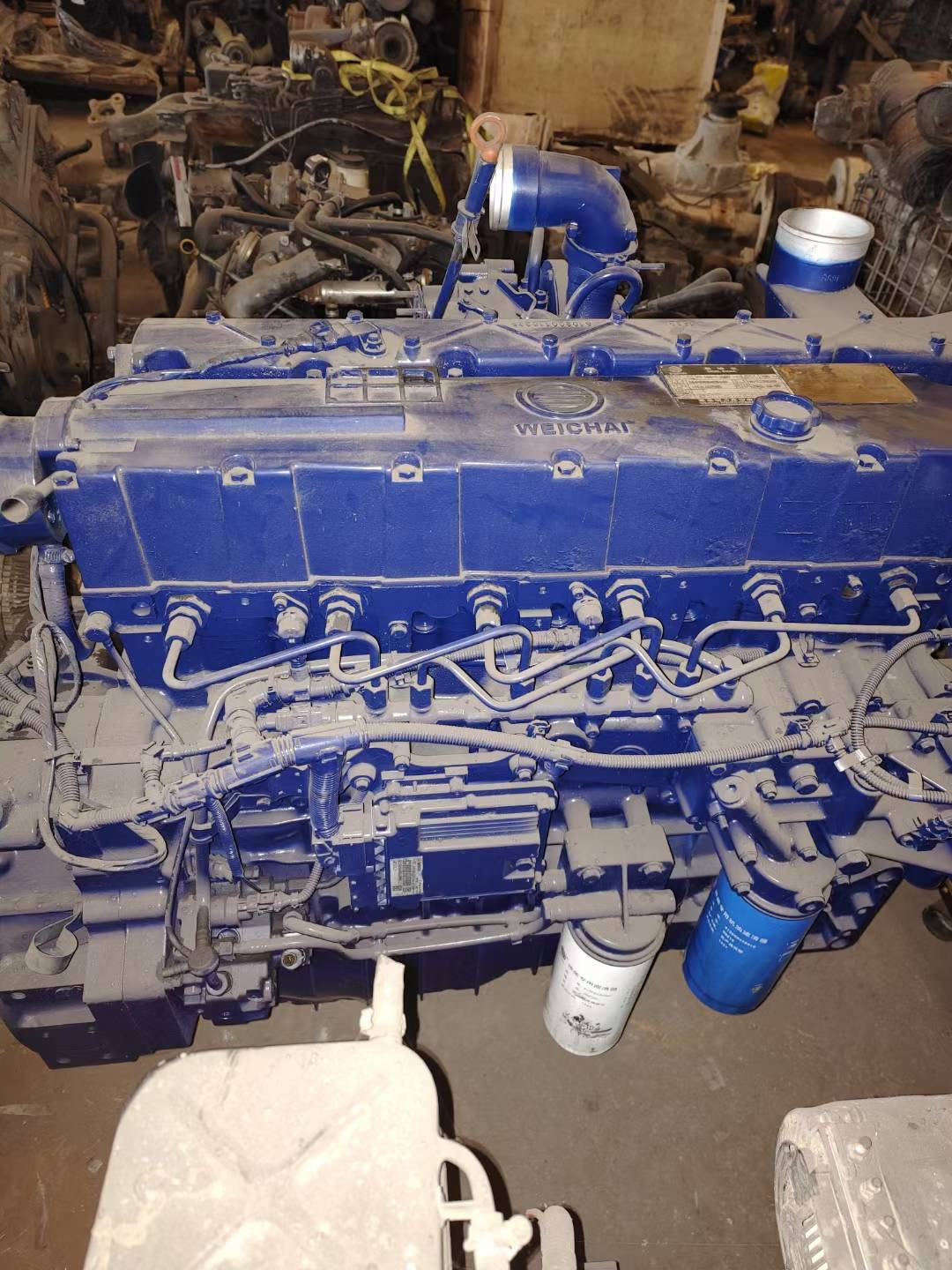

The Weichai WP7.270-E50 is a robust and efficient 6-cylinder, in-line, 4-stroke diesel engine renowned for its exceptional durability, reliable power, and superior fuel economy . With a 7.47-liter displacement and featuring turbocharged and intercooled aspiration, this water-cooled engine is engineered to deliver consistent performance in demanding transportation and industrial environments . Its compact structure and advanced technology make it a trusted power source for a wide range of heavy-duty trucks and specialized machinery .

Key Technical Specifications

For a quick overview, here are the core specifications of the WP7.270-E50 engine:

Parameter Specification
Configuration In-line, 6-Cylinder, 4-Stroke
Aspiration Turbocharged and Intercooled
Displacement 7.47 L
Bore × Stroke 108 mm × 136 mm
Rated Power/Speed 199 kW (270 HP) @ 1600-2200 rpm
Max. Torque/Speed 1250 N.m @ 1200-1600 rpm
Fuel System Common Rail
Emission Standard Euro V
Cooling System Water-Cooled
Weight (Net Dry) Approx. 650 kg

Primary Applications & Equipment

The Weichai WP7.270-E50 engine is built to be the powerhouse behind a range of heavy-duty equipment :

  • Special-Purpose Trucks: It is perfectly suited for mixer trucks and truck-mounted cranes .

  • Heavy-Duty Vehicles: This engine is also applied in dump trucks and tractors, providing reliable power for demanding transportation tasks .

Core Technologies & Key Features

  • Advanced Common Rail Fuel System: The engine utilizes a high-pressure common rail fuel system . This technology ensures precise fuel injection and superior atomization, leading to optimized combustion, reduced fuel consumption, and lower emissions .

  • Efficient Turbocharging and Intercooling: The turbocharged and intercooled (ATAAC) system forces more dense, cool air into the cylinders, significantly boosting power output and torque while optimizing combustion for improved fuel efficiency .

  • Compact and Robust Design: The engine features a compact structure, contributing to its wide suitability for various vehicle chassis, while its robust construction ensures a long service life in tough conditions .
