New Deutz TD2011L04I Turbocharged Diesel Engine for Underground Mining Equipment

5 0 Reviews
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TD2011L04I

  • Deutz

发动机海报

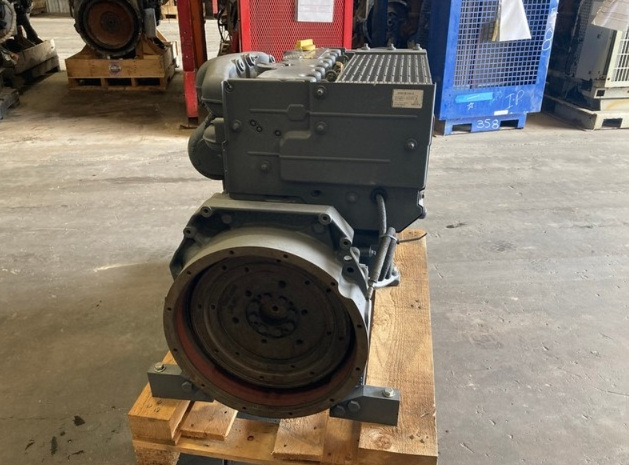

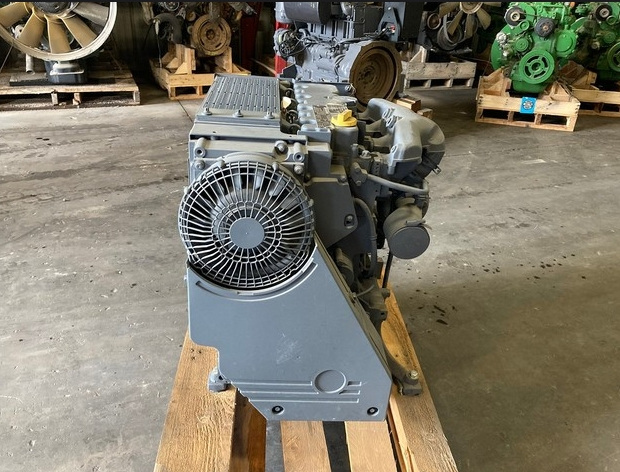

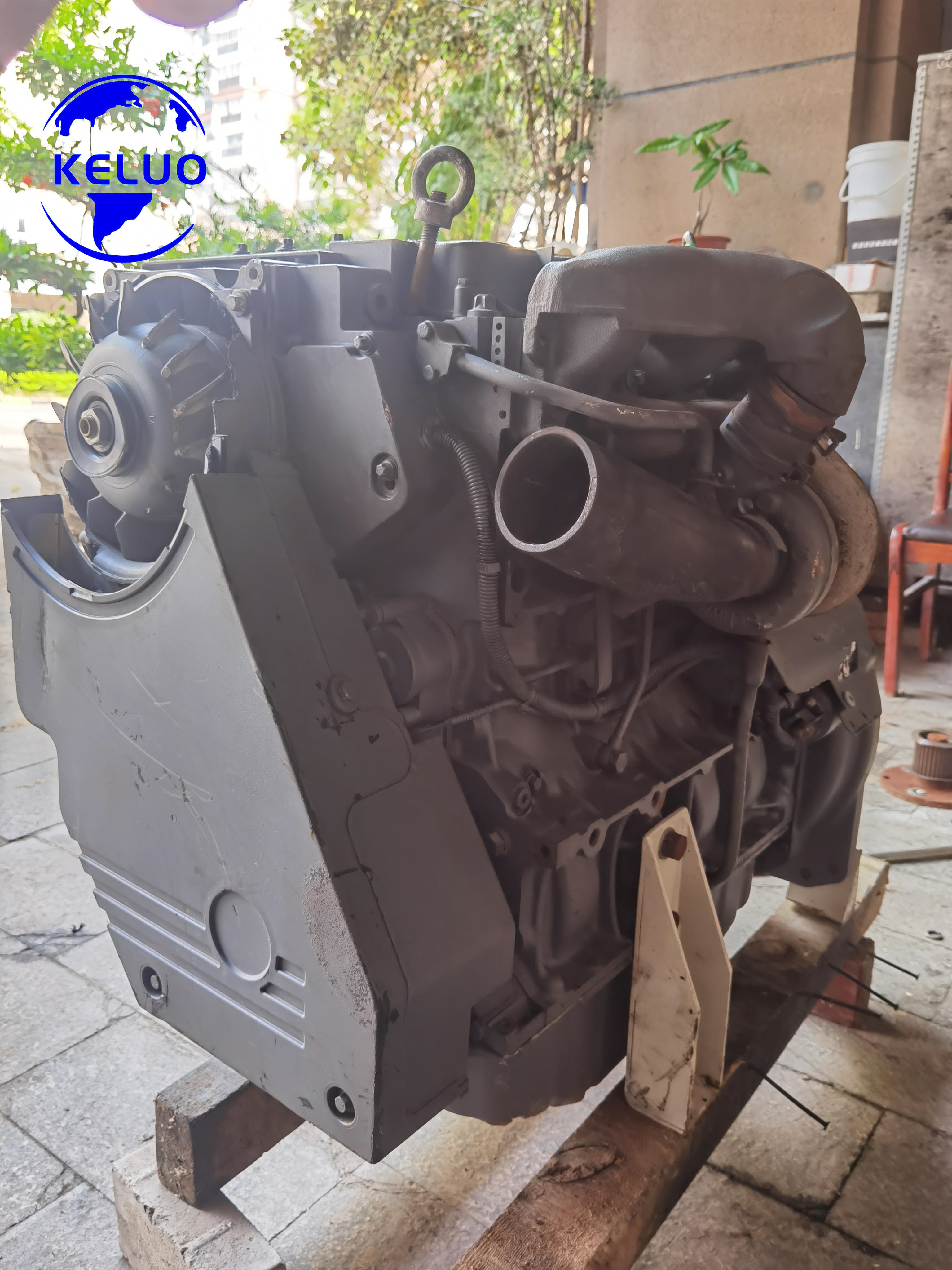

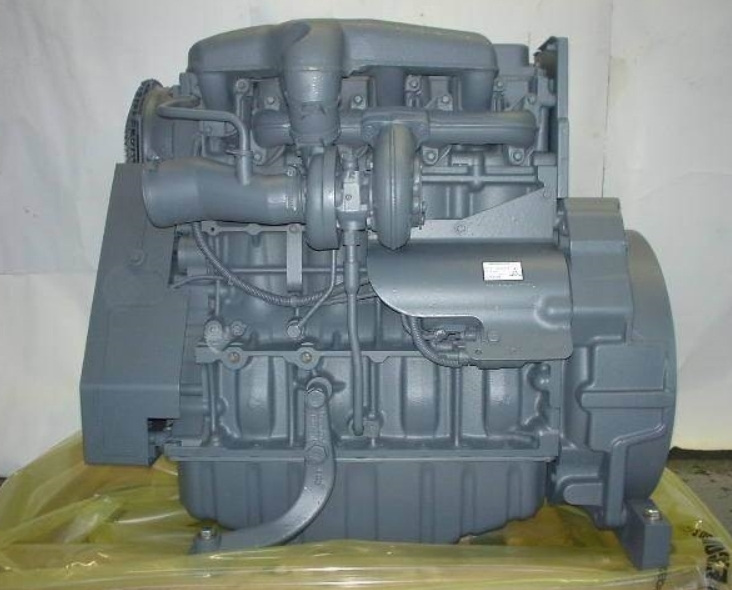

The DEUTZ TD2011L04I is a robust and efficient 4-cylinder, in-line, 4-stroke diesel engine renowned for its exceptional durability, reliable power, and superior fuel economy . With a 3.61-liter displacement and featuring a compact design, this engine is engineered to deliver consistent performance in demanding environments . Its proven technology and flexible configuration options make it a trusted power source for a wide range of industrial and mobile equipment .

Key Technical Specifications

For a quick overview, here are the core specifications that define the TD2011L04I engine's performance :

Parameter Specification
Configuration In-line, 4-Cylinder, 4-Stroke
Aspiration Inline Turbocharging
Displacement 3.61 L
Bore × Stroke 96 mm × 125 mm
Rated Power/Speed 55 kW / 2300-2400 rpm
Max. Torque/Speed 240 Nm / 1700 rpm
Min. Idling Speed 900 rpm
Specific Fuel Consumption 226 g/kWh
Emission Standard US EPA Tier 4 i , EU Stage IIIA, US T2/T3
Cooling Options Oil-cooled, or with integrated cooling system; also available with water cooling and charge air cooling
Weight Approx. 267 kg

Primary Applications & Equipment

The DEUTZ TD2011L04I engine is built to be a dependable power source for various types of equipment. Its compact design and optional Power Take-Off (PTO) drive increase its versatility for a wide range of applications .

  • Underground Mining Equipment: It is well-suited for machinery like underground scrapers and other equipment used in confined spaces .

  • General Industrial Machinery: The engine's robust design also makes it suitable for various other industrial applications .

Core Technologies & Key Features

  • Flexible Cooling System: The engine is available in oil-cooled versions or with an optional integrated cooling system. It can also be configured with water cooling and charge air cooling, providing adaptability to different operational needs and installation environments .

  • Compact and Service-Friendly Design: The compact engine design reduces installation costs and complexity . Furthermore, all maintenance points are located on one side of the engine, and it features long oil change intervals, which significantly reduce operating costs and increase machine availability .

  • Efficient Injection and Combustion: An efficient injection system combined with optimized combustion ensures optimum engine performance with low fuel consumption, contributing to lower operating costs .

  • Robustness and Cold Starting: The engine boasts excellent cold-starting properties, even under extreme conditions . Its robust design allows for worldwide operation, even with high-sulfur fuels, enhancing its reliability in diverse markets .

  • Compliance with Emission Standards: The engine is designed to meet US EPA Tier 4 i emission standards, as well as other international regulations like EU Stage IIIA, making it a compliant choice for various markets .
