A4VSG500EO2
Rexroth

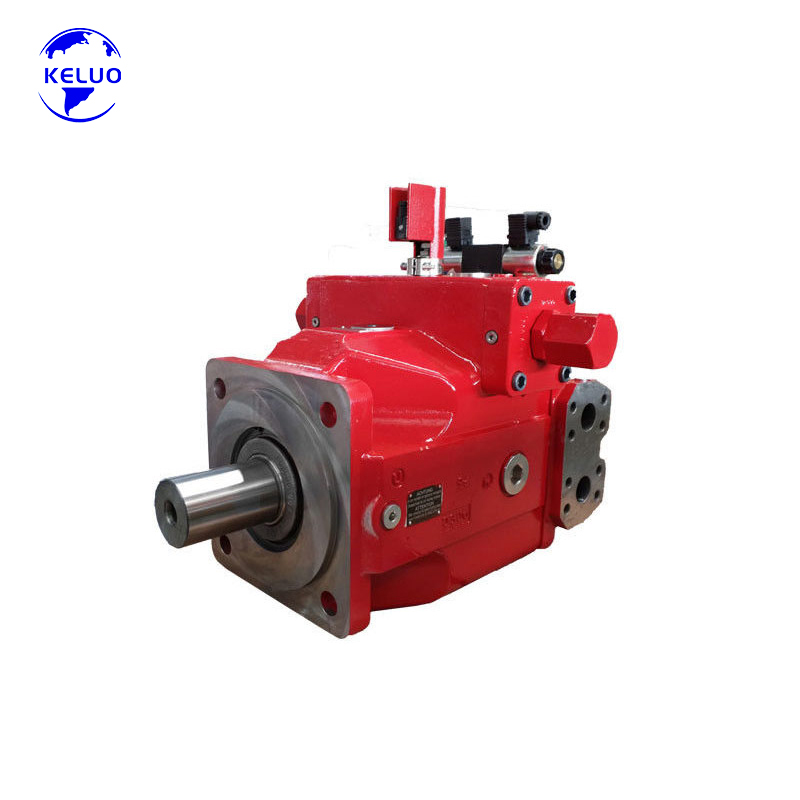

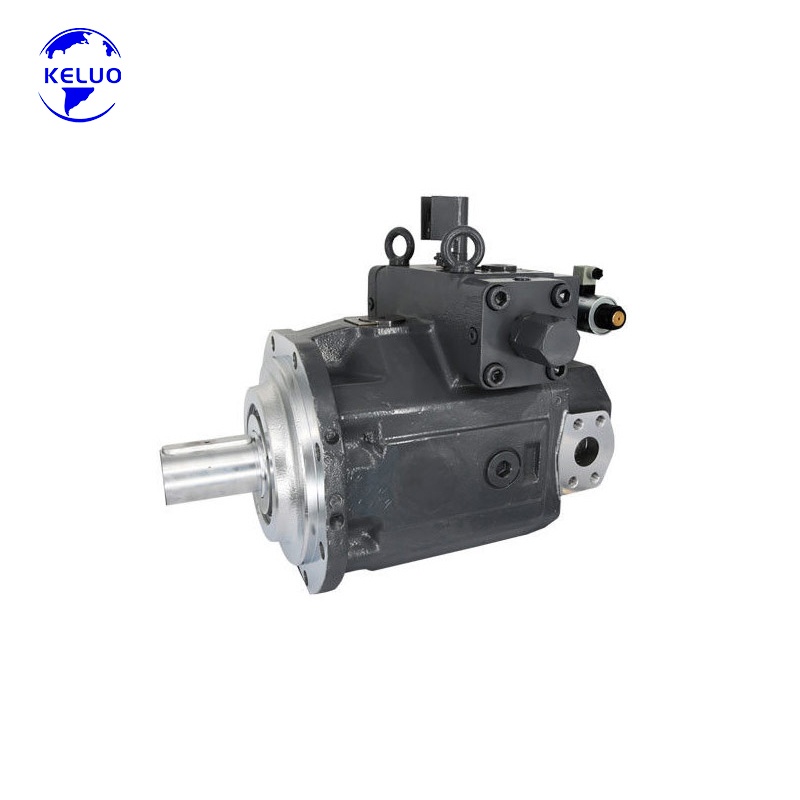

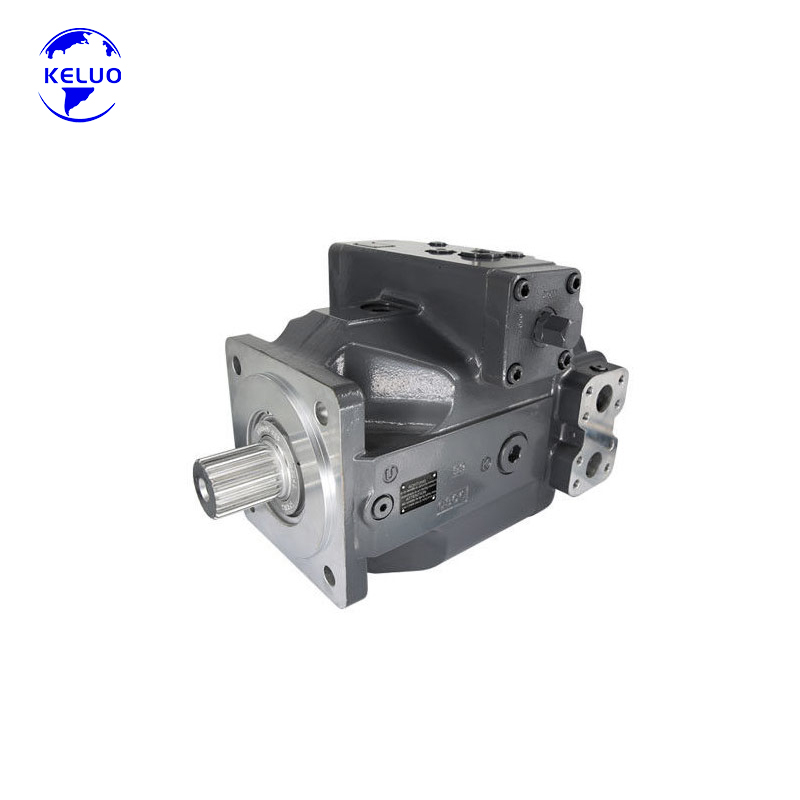

The A4VSG500EO2 is a heavy-duty, high-capacity variable displacement axial piston pump engineered for demanding open-circuit hydraulic systems. Featuring advanced electro-hydraulic proportional control (EO2), this pump is designed to deliver immense hydraulic flow with precise, intelligent, and energy-efficient operation. It serves as a powerful and reliable core component for the largest mobile and industrial machinery, where high power output, responsive control, and maximum uptime are critical.
| Parameter | Specification / Description |
|---|---|
| Series / Model | A4VSG500EO2 |
| Type | Variable Displacement, Swashplate Axial Piston Pump |
| Circuit Type | Open Circuit |
| Nominal Displacement | 500 cm³/rev |
| Control Type | Electro-Hydraulic Proportional Control (EO2) |
| Pressure Rating | High-Pressure Design (e.g., Maximum operating pressure up to 350 bar or higher; confirm exact rating). |
| Control Signal | Typically accepts standard analog input (e.g., 0-10V, 4-20mA) for stepless displacement adjustment. |
| Key Feature | Designed for high flow and power in a robust package. |
Intelligent Electro-Proportional Control (EO2): The integrated electro-proportional valve enables precise and rapid remote control of the pump's swashplate angle via an electrical signal. This allows for seamless integration into modern machine control systems for optimal, energy-saving performance.
Extremely High Flow Output: With a large displacement of 500 cm³/rev, this pump is capable of generating very high flow rates to meet the substantial hydraulic power demands of large-scale equipment.
High Efficiency & Energy Savings: The variable displacement design ensures the pump delivers only the flow required by the system, minimizing energy waste, reducing fuel consumption, and lowering heat generation.
Robust Construction for Severe Duty: Built with heavy-duty components to withstand continuous operation at high pressures and under the most challenging conditions in mining, construction, and heavy industry.
Compact Design with High Power Density: Offers a favorable power-to-size ratio for its output class, facilitating integration into space-constrained engine compartments of large machinery.
This high-flow pump is ideally suited as the main hydraulic power source for:
Large Mining & Construction Machinery: Hydraulic systems for large excavators, mining shovels, heavy-duty wheel loaders, and drilling rigs.
Industrial Presses & Heavy Machinery: Main drive pump for large hydraulic presses, forging machines, rolling mills, and test rigs.
Marine & Offshore Equipment: Power source for deck cranes, winches, and other heavy shipboard machinery.
Specialized Heavy Transports: Hydraulic systems for large multi-axle transport vehicles (SPMTs).
