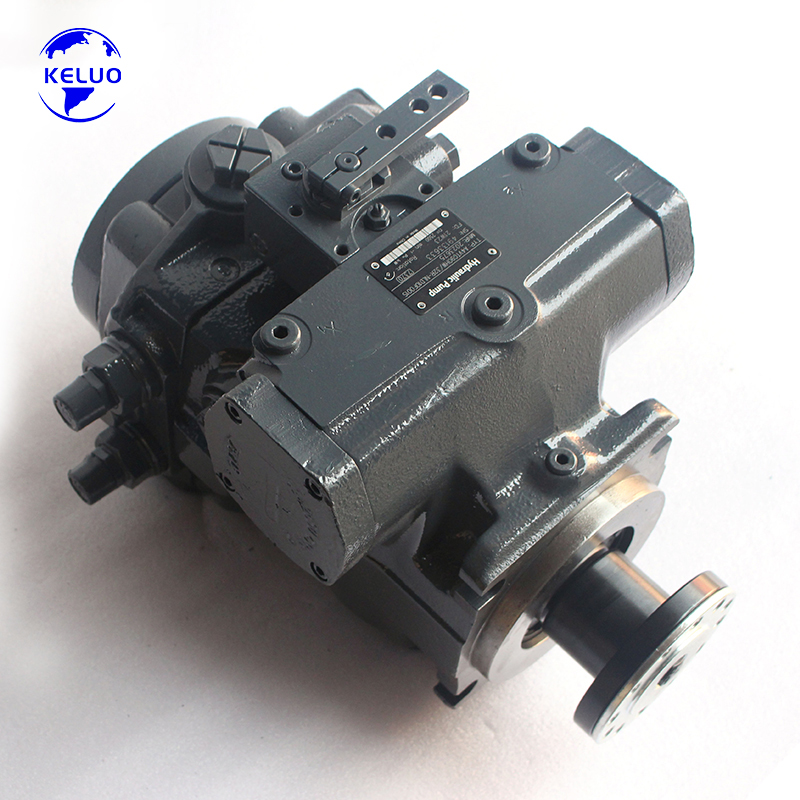

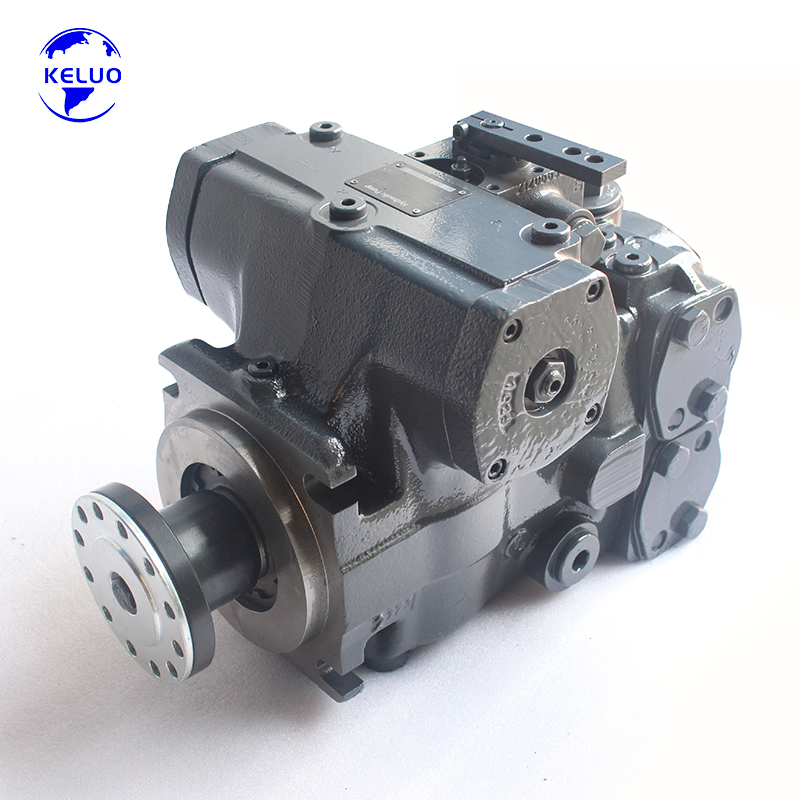

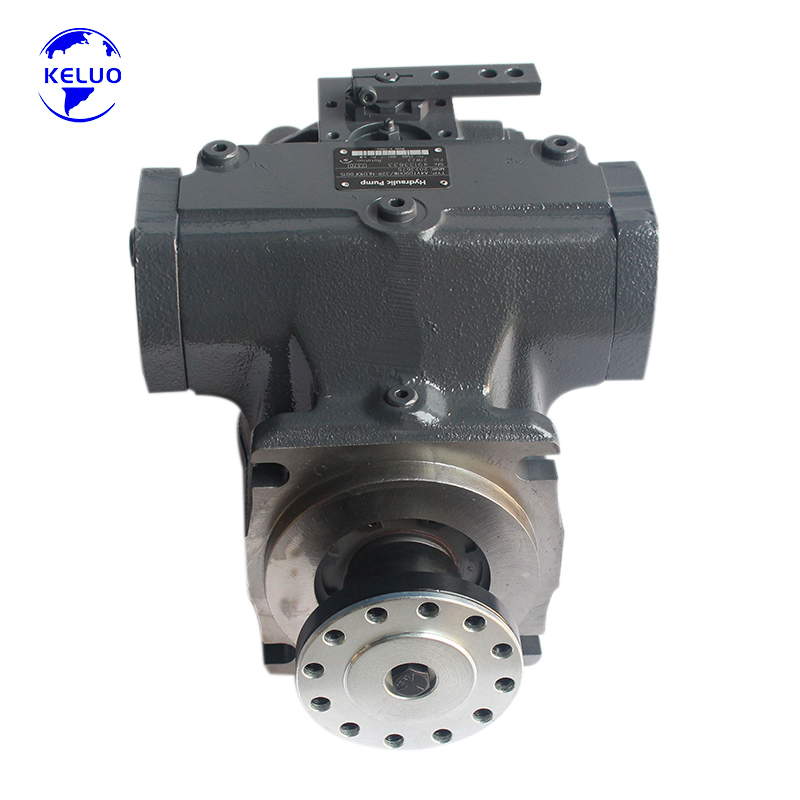

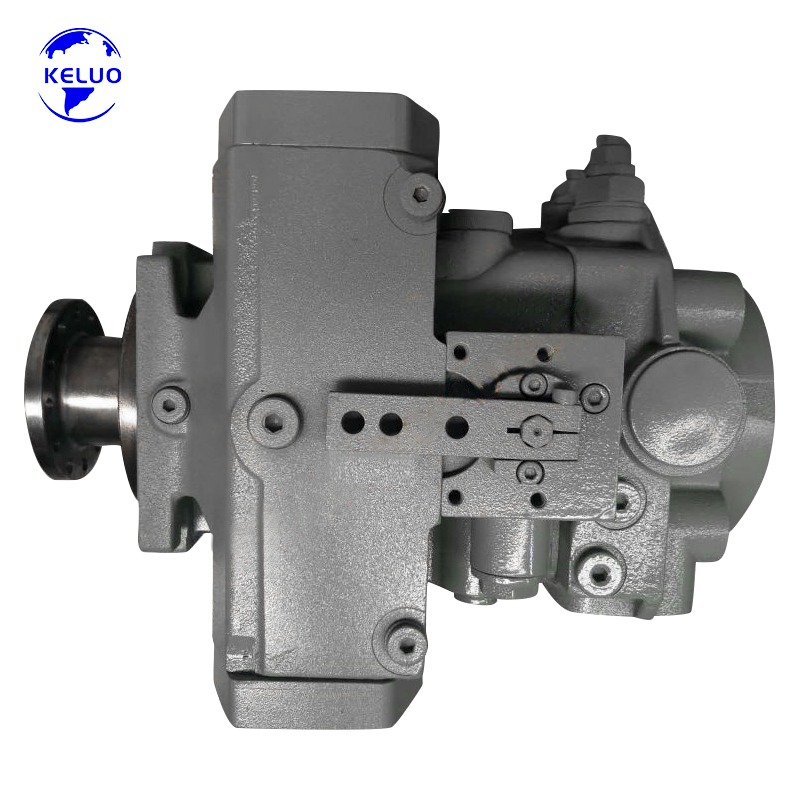

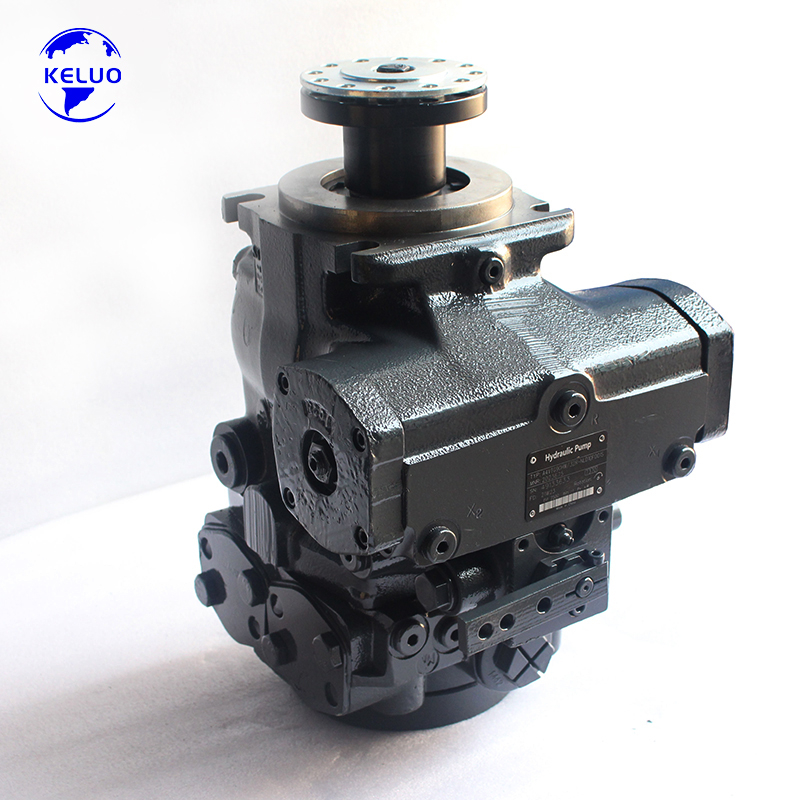

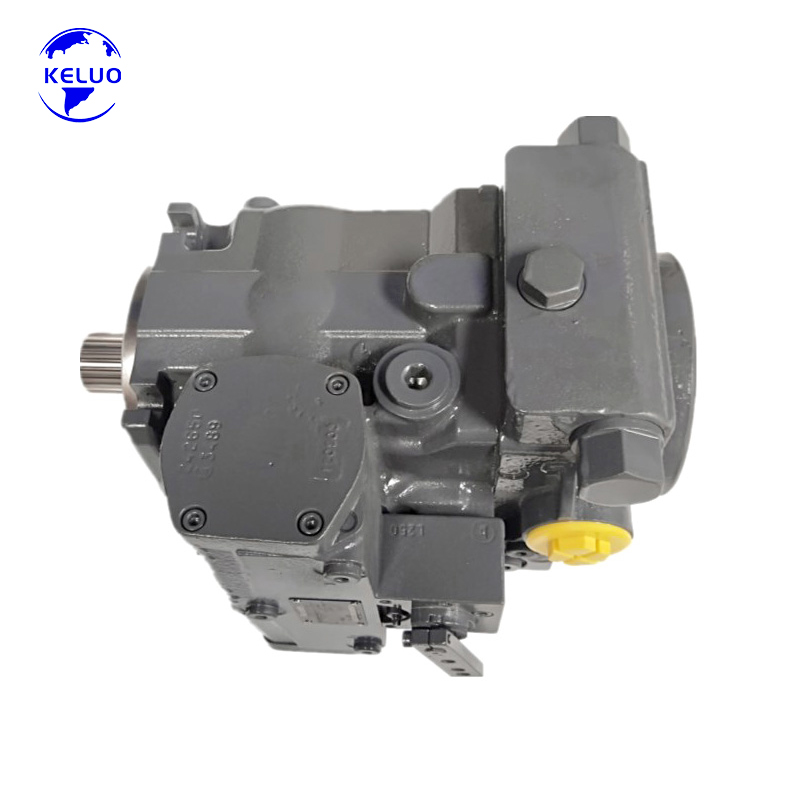

A4VTG090
Rexroth
Product Overview:
The A4VTG090 is a high-pressure, swashplate design axial piston pump specifically engineered for closed-loop hydraulic systems. Known for its compact structure, high power density, and excellent controllability, this pump is widely used as a direct replacement for original Rexroth units. With a displacement of 90 cc/rev, it delivers reliable and efficient hydraulic power for demanding mobile and industrial applications.
Technical Specifications:
Model: A4VTG090
Type: Swashplate design, axial piston pump (closed circuit)
Displacement: 90 cm³/rev
Nominal Pressure: 400 bar
Maximum Pressure: 450 bar
Control Options: EP (electro-proportional), HD (hydraulic), DA (speed-related), manual
Mounting Flange: SAE B / SAE C optional
Rotation Direction: Bidirectional
Port Connection: SAE flange ports
Key Features:
Closed Circuit Optimized: Designed for hydrostatic transmissions with integrated charge pump and relief valves.
High Pressure Capability: Continuous operation up to 400 bar, peak up to 450 bar.
Compact & Rugged: Space-saving design with robust housing for vibration and shock resistance.
Fast & Precise Control: Multiple control options for accurate speed and direction regulation.
Direct Interchangeable: Dimensionally and functionally interchangeable with original Rexroth A4VTG series pumps.
Main Applications (Suitable Equipment):
The A4VTG090 is the core power unit for hydrostatic travel and work drives. It is extensively used in the following machinery:
Crawler Excavators (15–25 tons): Travel drive and swing drive systems.
Crawler Cranes & Piling Rigs: Hydrostatic travel and slewing motions.
Road Construction Equipment: Asphalt pavers, road rollers, and cold milling machines.
Agricultural Machinery: Large combine harvesters and self-propelled sprayers.
Material Handling: Telehandlers, rough-terrain forklifts, and container stackers.
Specialty Drilling Rigs: Water well drills and geotechnical rigs.
Ski Lift & Cableway Hydraulics: Closed-circuit tensioning systems.
