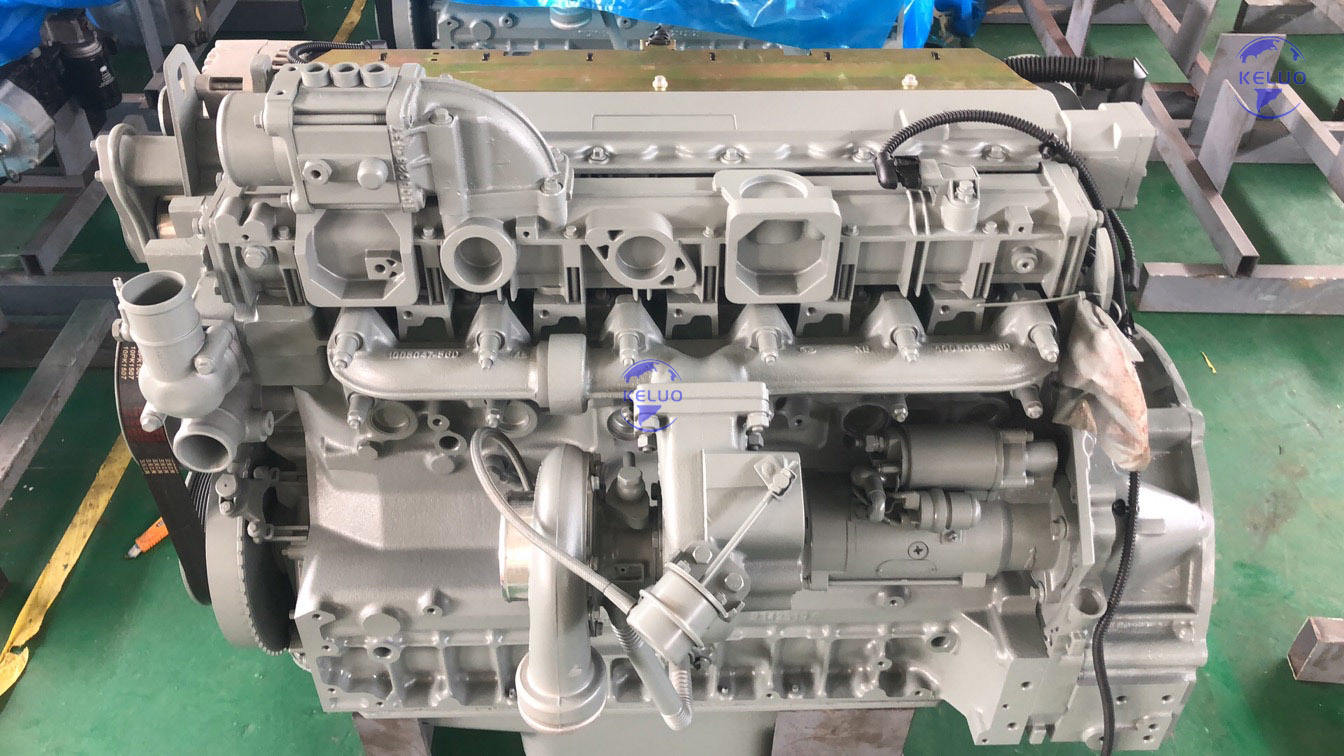

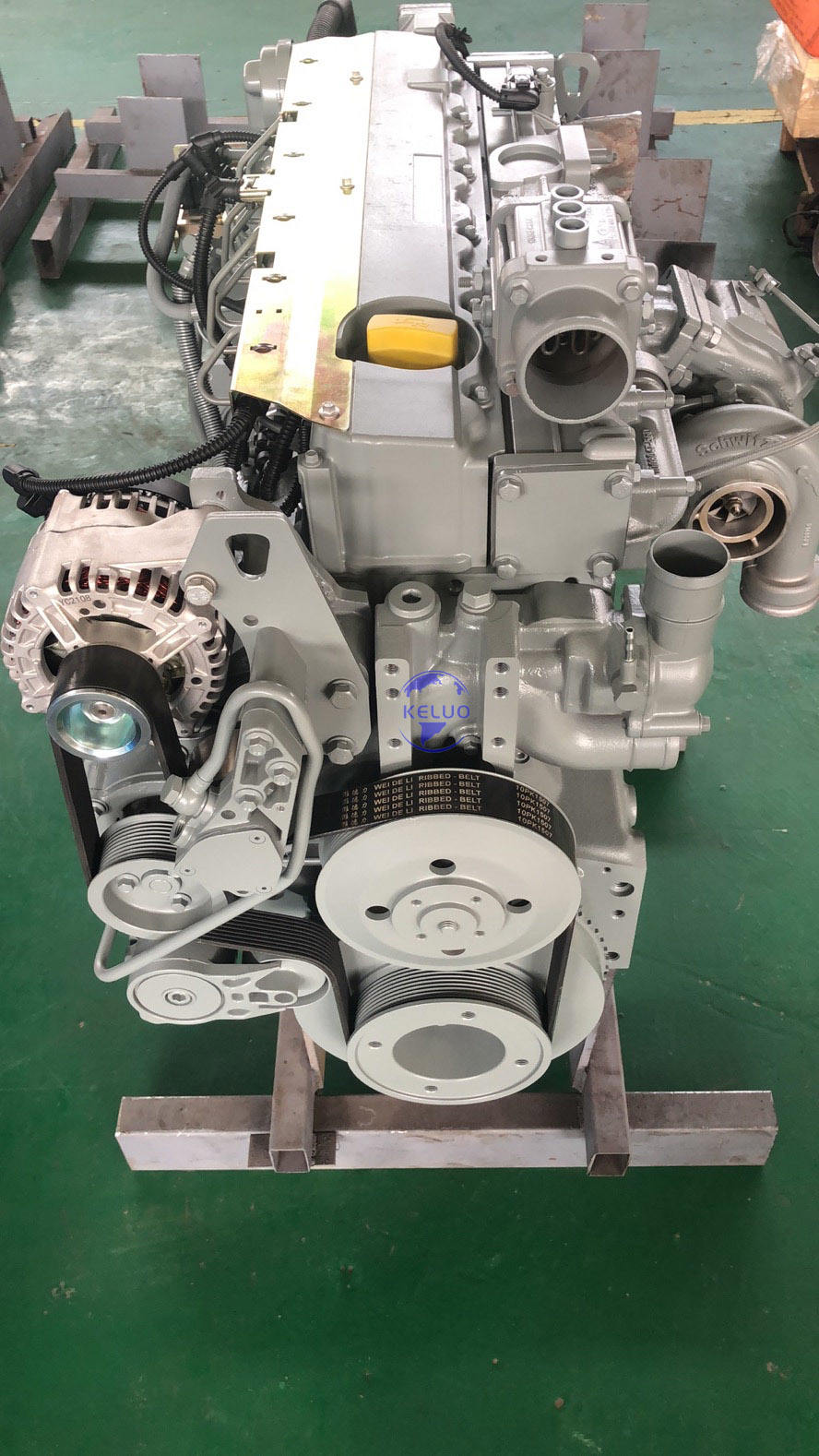

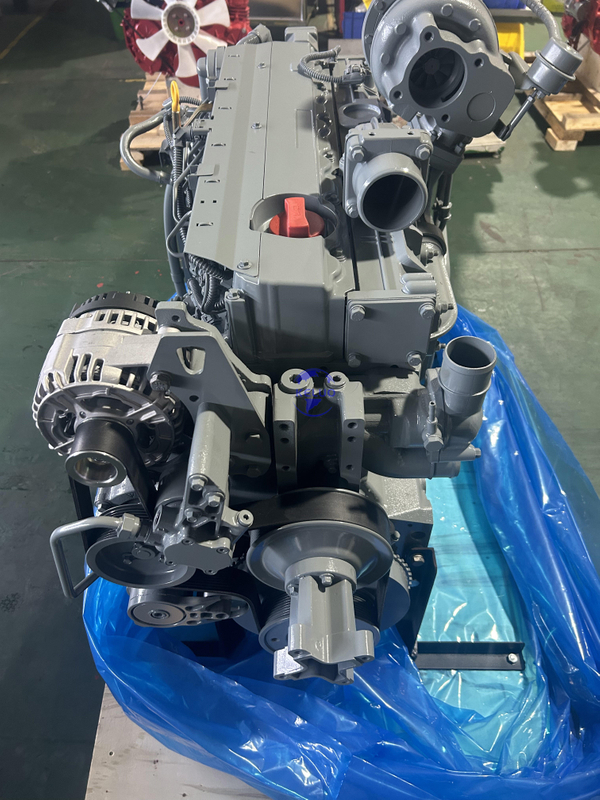

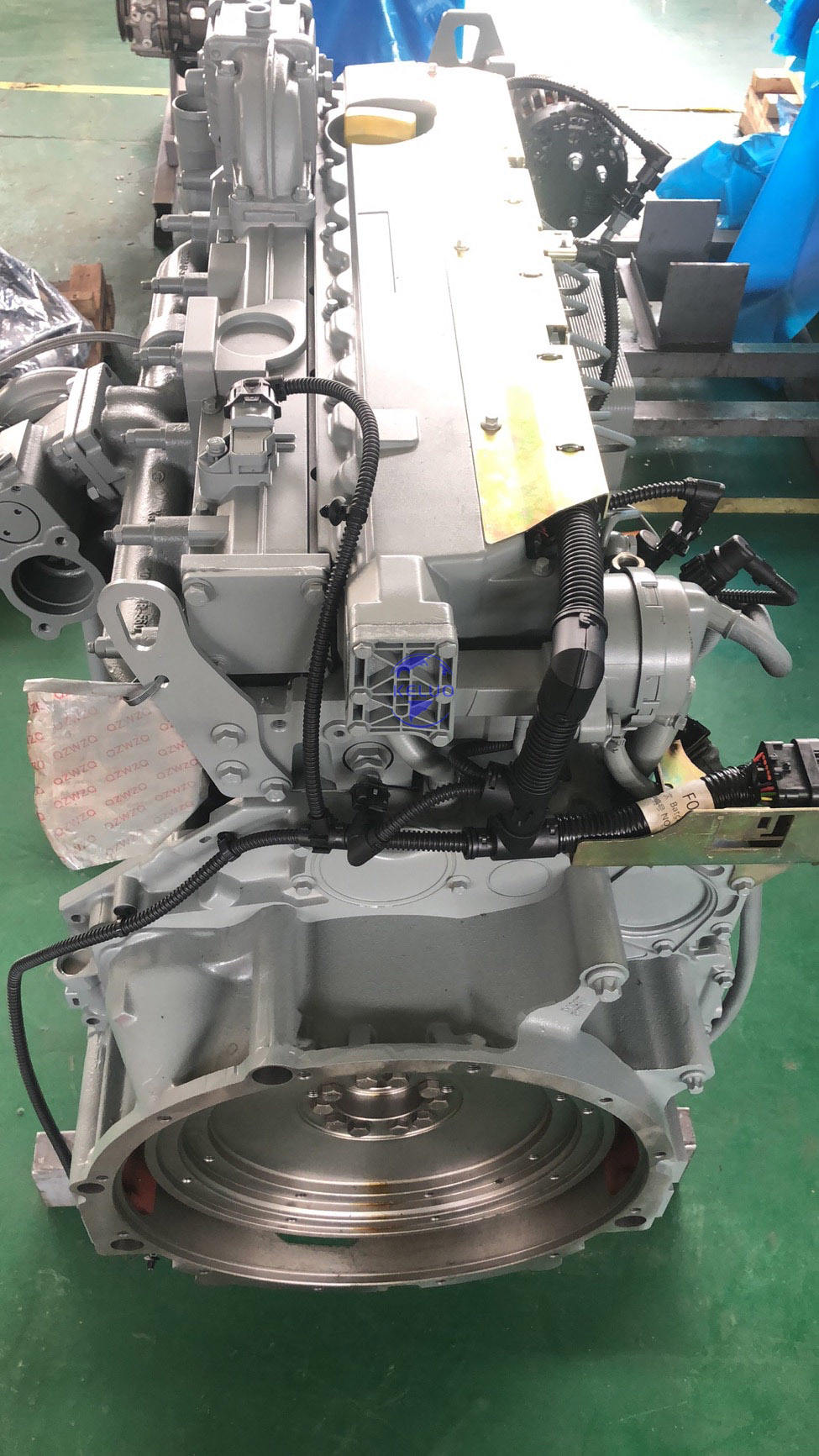

The DEUTZ TCD2012L062V is a modern, water-cooled, 6-cylinder in-line diesel engine renowned for its robust power, exceptional durability, and superior fuel efficiency. Engineered for demanding non-road applications, it delivers reliable performance even under extreme operating conditions, making it a trusted power source for a wide range of heavy-duty industrial machinery.

Key Technical Specifications

Parameter Specification
Model DEUTZ TCD2012L062V
Configuration In-line, 6-Cylinder, 4-Stroke
Aspiration Turbocharged with Intercooler
Displacement 6.0 L / 7.0 L (varies by data source)
Rated Power / Speed 145 kW / 2300 rpm (Other sources list 100-155 kW / 2000-2400 rpm)
Max. Torque / Speed 810-850 Nm / 1600 rpm
Emission Standard EU Stage IIIA / U.S. EPA Tier 3
Cooling System Water-Cooled
Fuel System DEUTZ Common Rail (DCR®)
Weight (Net) Approx. 510 - 620 kg

Primary Applications & Equipment

The DEUTZ TCD2012L062V is designed as a versatile power unit for engineering and construction machinery. It is well-suited for equipment that operates in tough environments, such as:

  • Underground Loaders (LHDs) and Mining Trucks

  • Pavers, Road Rollers, and Milling Machines

  • Agricultural Machinery

  • Generator Sets

Core Technologies & Key Features

  • Advanced DEUTZ Common Rail (DCR®) System: The engine utilizes a high-pressure common rail fuel injection system for precise fuel delivery. This technology optimizes combustion, ensuring low fuel consumption, high performance, and reduced emissions.

  • Compact and Service-Friendly Design: Engineered with a compact structure, it simplifies installation and reduces integration costsAll maintenance points are located on one side, and it features extended oil change intervals, significantly reducing downtime and operating costs.

  • Proven Robustness for Global Operation: Built with a rugged design, the engine delivers reliable performance worldwide and demonstrates excellent cold-starting capability even under extreme conditions.

  • Intelligent Electronic Management: The engine is controlled by an electronic engine management (EMR) system that intelligently connects with the drive management, ensuring optimal performance.
