Underground Mining Air-Cooled Diesel Engine Assembly F6l912 for Deutz

5 0 Reviews
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • F6L912

  • Deutz

发动机海报

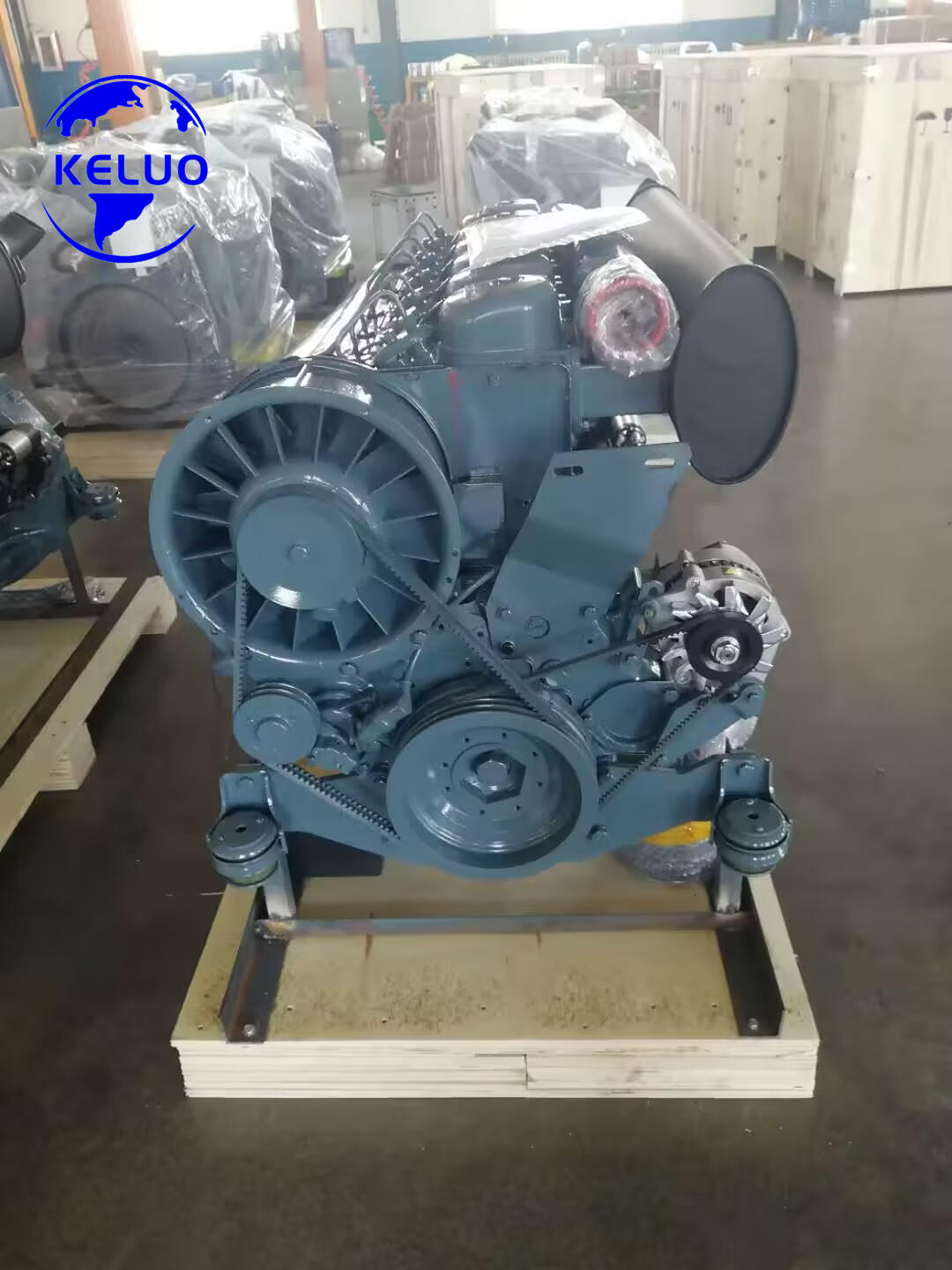

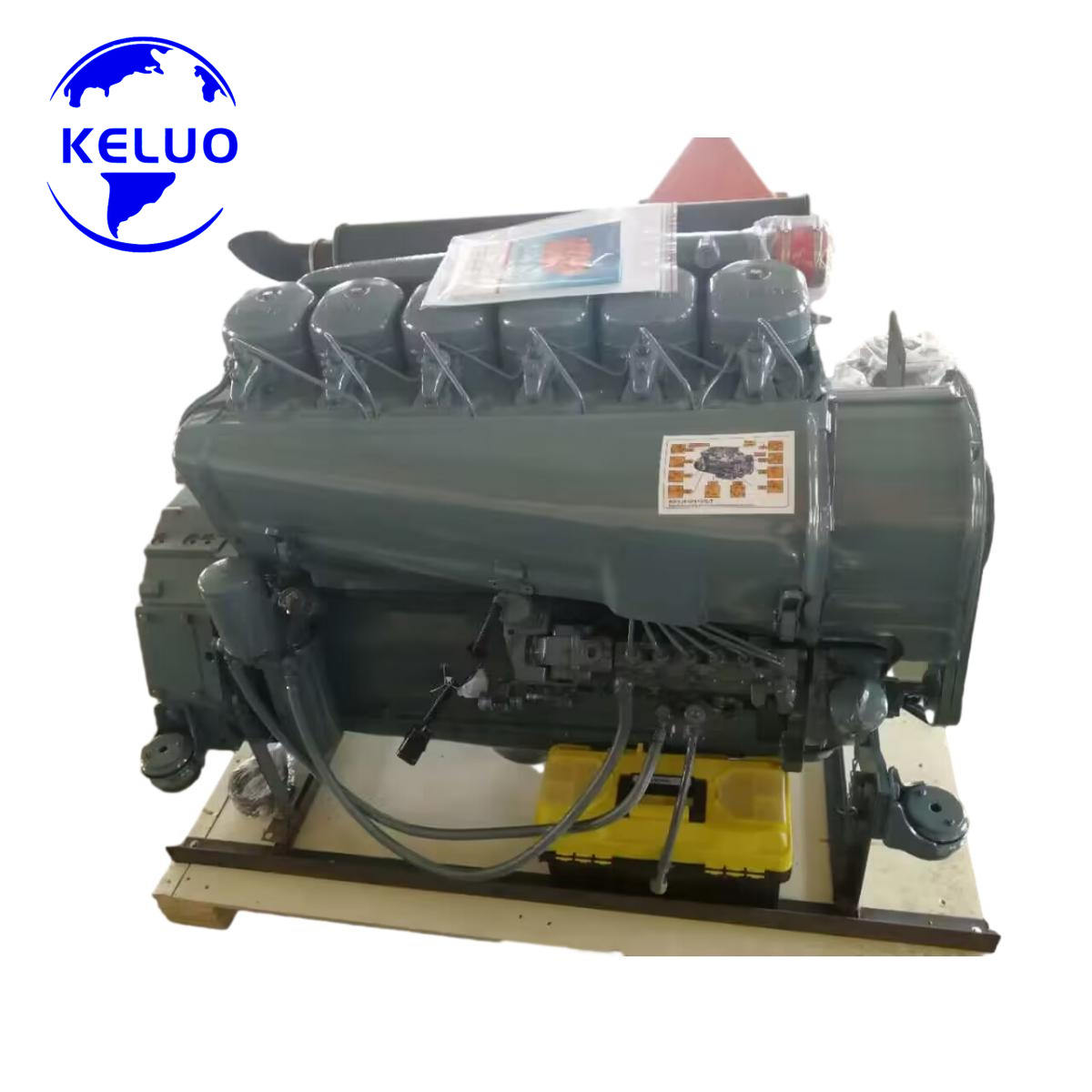

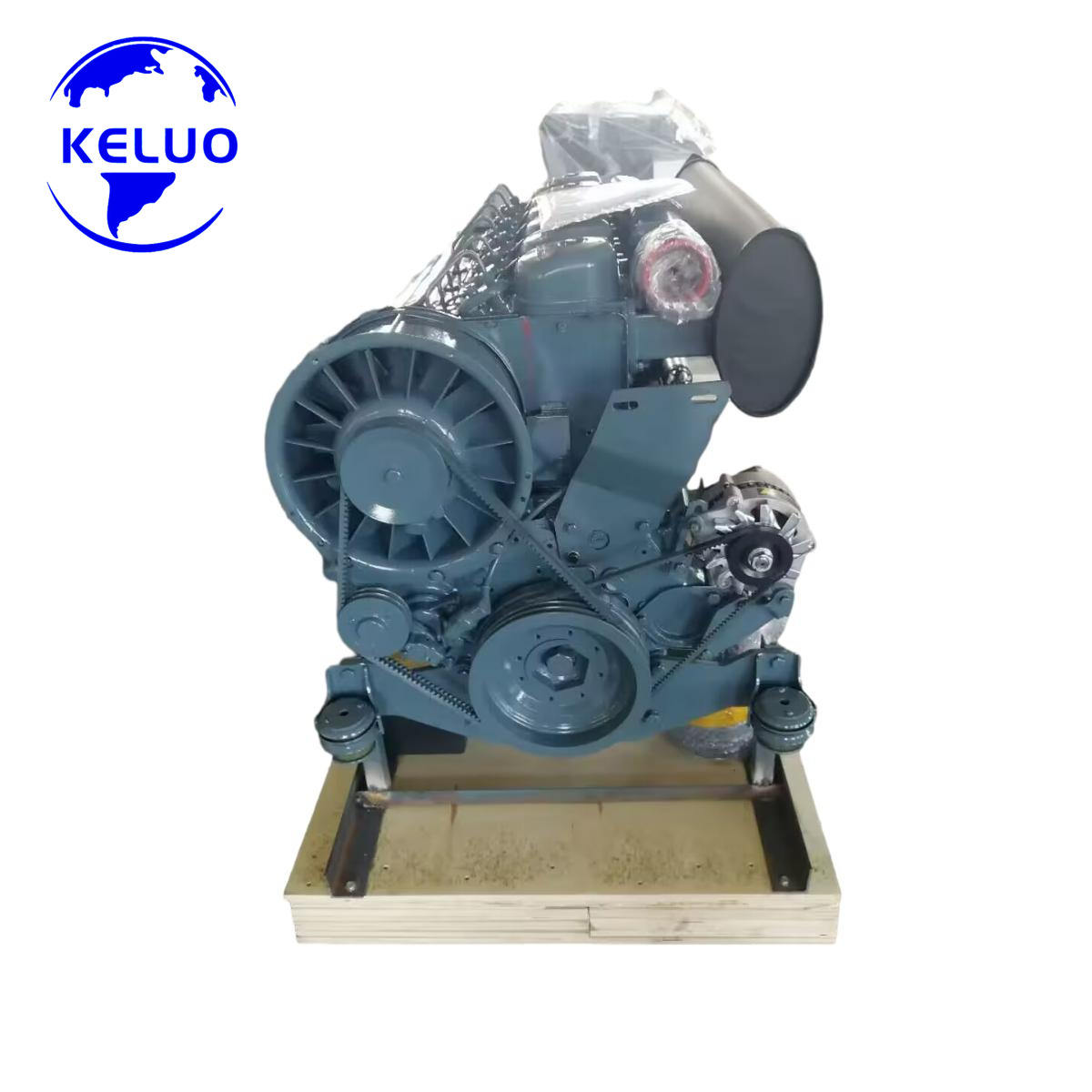

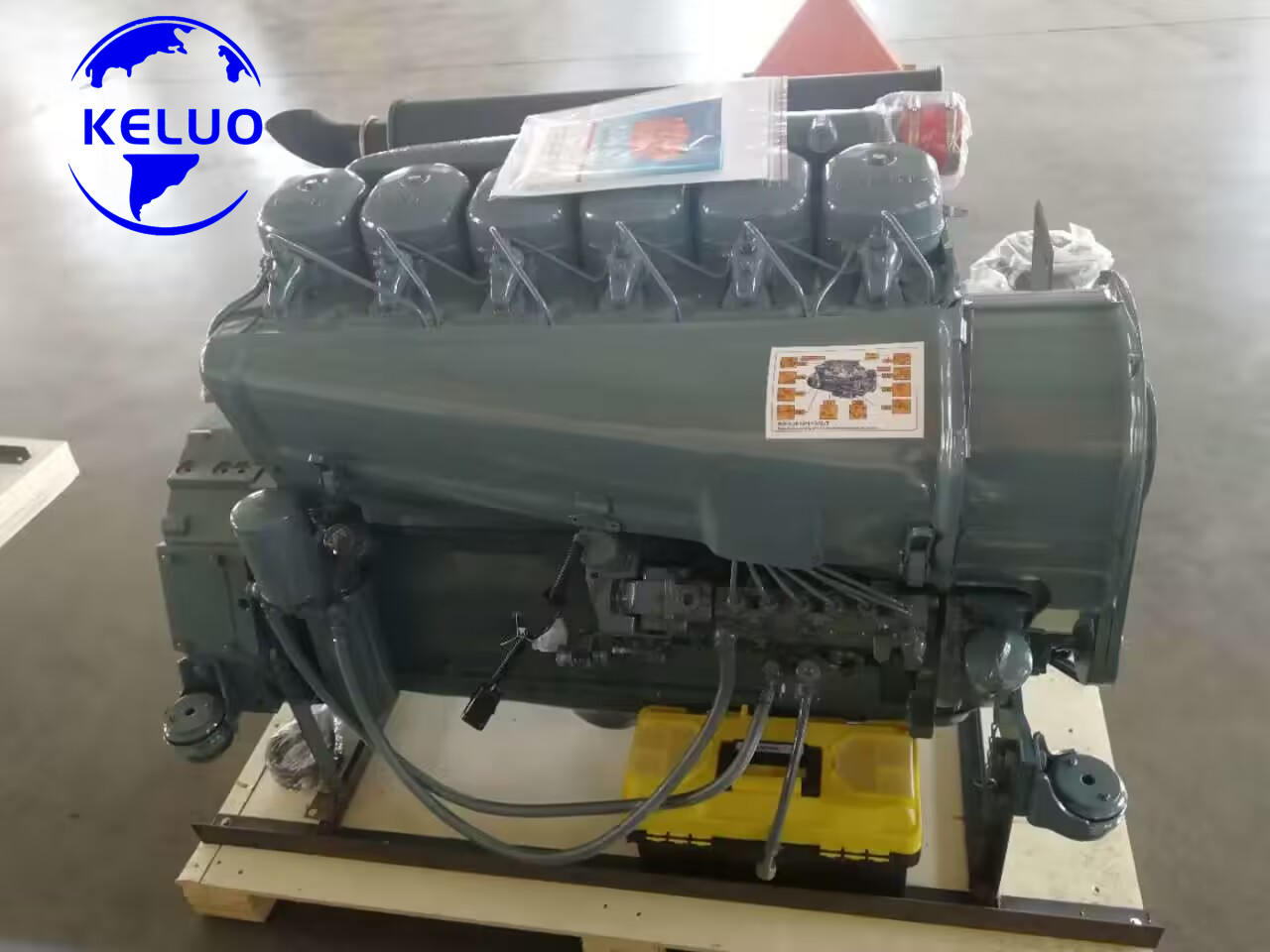

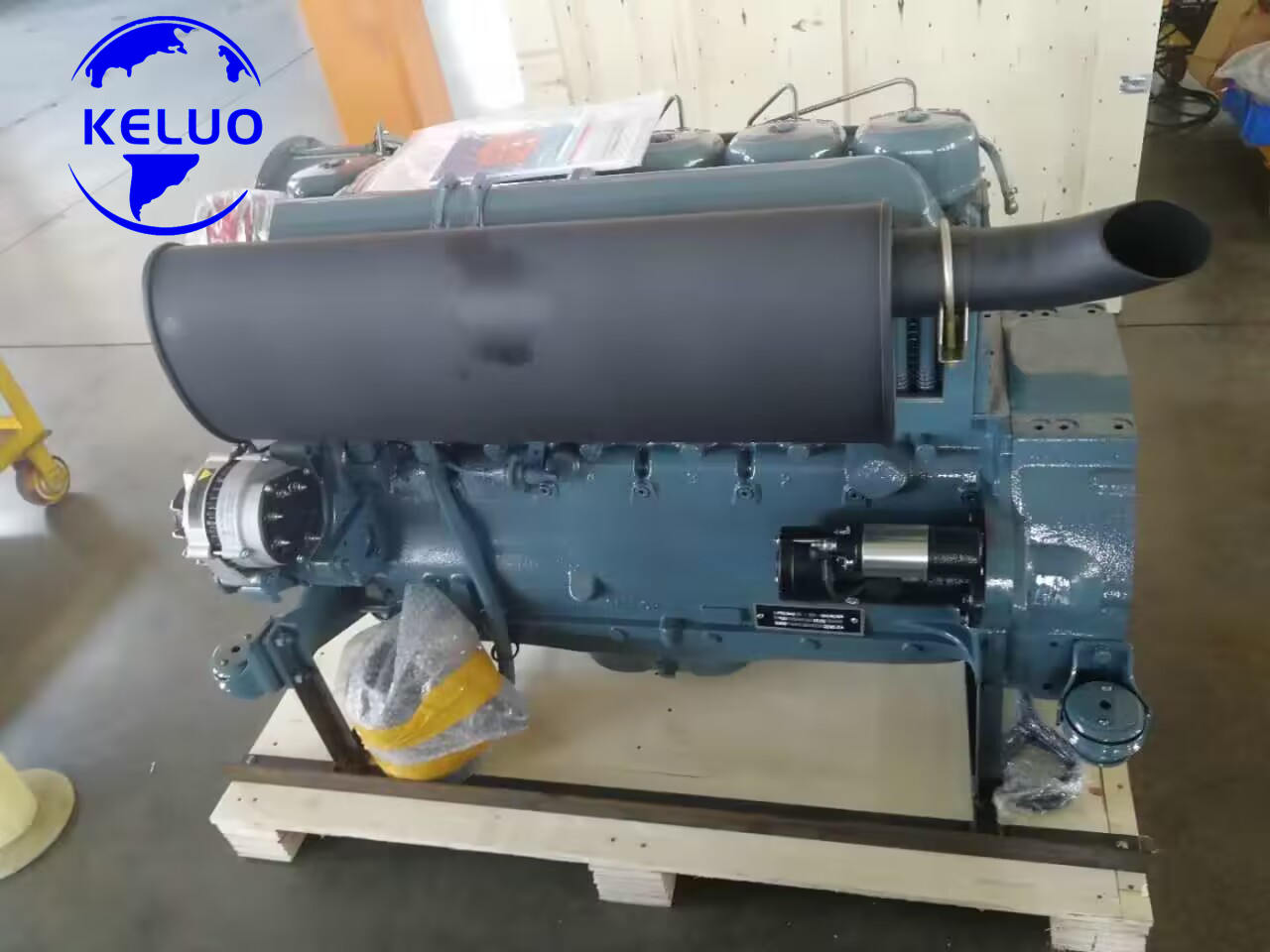

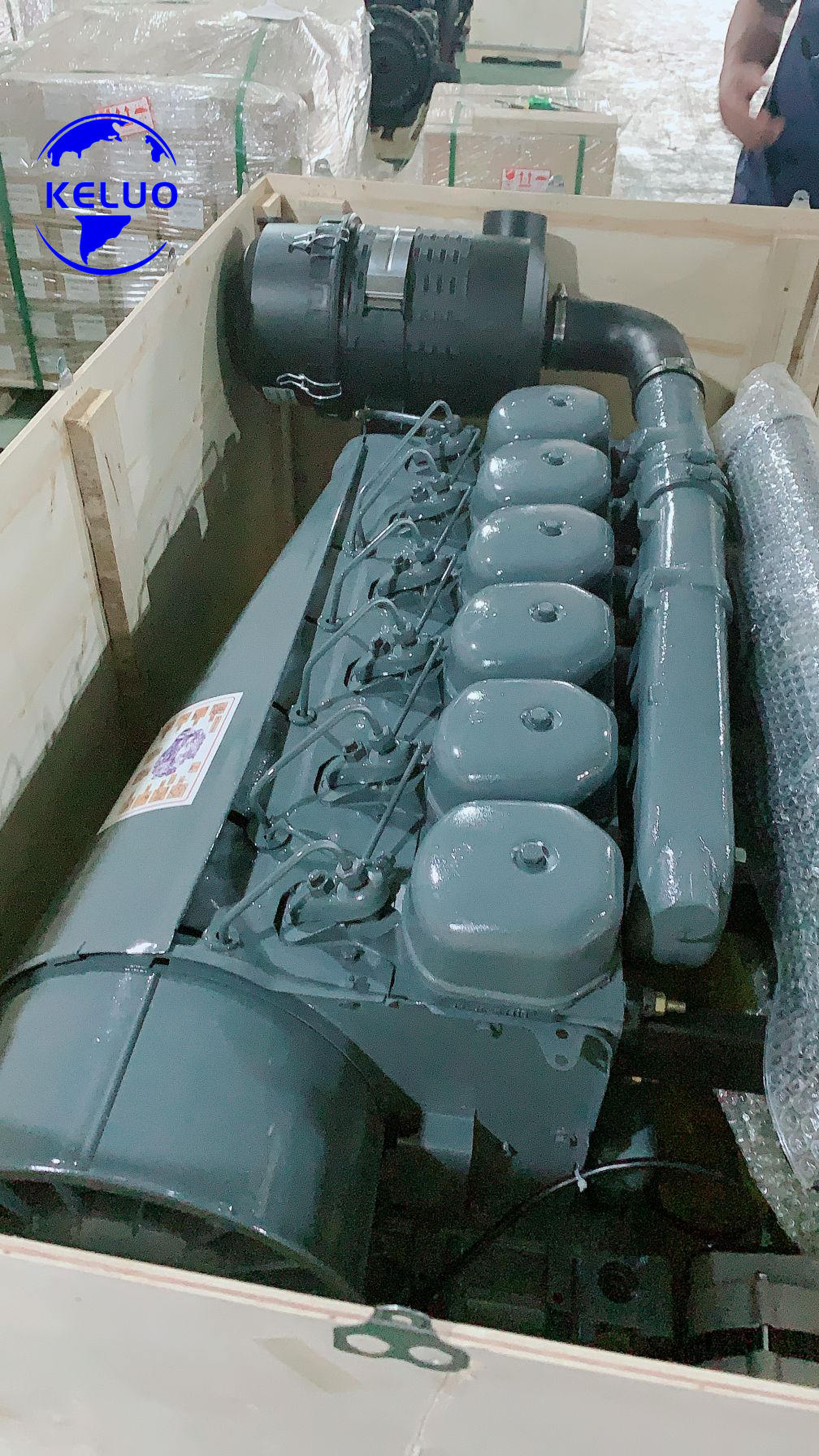

The DEUTZ F6L912 is a renowned 6-cylinder, in-line, 4-stroke air-cooled diesel engine, celebrated for its exceptional durability, reliable power, and superior adaptability to harsh environments. With a displacement of 5.665 liters and featuring a naturally aspirated intake system, this engine is engineered to deliver consistent performance where water-cooling systems are impractical. Its proven modular design and straightforward maintenance make it a trusted power source for a wide range of industrial, agricultural, and mobile machinery.

Key Technical Specifications

For a quick overview, here are the core specifications of the F6L912 engine:

Parameter Specification
Configuration In-line, 6-Cylinder, 4-Stroke
Aspiration Naturally Aspirated
Cooling System Air-Cooled
Displacement 5.665 L (6.5L also listed in some variants)
Rated Power 48 - 82 kW (approx. 65 - 110 hp) @ 1500-2500 rpm
Max. Torque 370 N.m
Bore × Stroke 100 mm × 120 mm (102 mm × 125 mm also listed)
Compression Ratio 17:1
Emission Standard Euro II
Starting System Electric Start
Weight (Net) Approx. 410 kg
Dimensions (L×W×H) ~1084 × 679 × 806 mm

Primary Applications & Equipment

The DEUTZ F6L912 engine is a versatile powerhouse, built to be the driving force behind a wide array of equipment:

  • Power Generation: It is a key power source for diesel generator sets.

  • Agricultural Machinery: This engine is perfectly suited for various agricultural machinery.

  • Construction & Engineering Machinery: Its reliable design makes it suitable for construction and engineering machinery.

Core Technologies & Key Features

  • Efficient Air-Cooling System: The engine utilizes a simple and robust air-cooling system. This design eliminates the need for a complex radiator, water pump, and hoses, making it ideal for operation in remote, dusty, or extreme temperature environments where water availability is limited.

  • Direct Injection Combustion System: The engine employs a direct injection fuel system, which contributes to low fuel consumption and high efficiency. The advanced injection and combustion system ensures optimum performance.

  • Modular Design & High Parts Commonality: Built around a modular system with individual cylinder units, the engine simplifies servicing and repairs. This design allows for a high degree of parts commonality, streamlining inventory and reducing maintenance costs and downtime.

  • High Torque at Low RPM: The engine is designed to deliver high torque at low engine speeds, providing excellent pulling power and responsiveness for demanding tasks.

  • Excellent Cold-Start Capability: Thanks to its robust design, the engine possesses reliable cold-starting capabilities, even under extreme climatic conditions.
