Wheel Loader Diesel Engine Weichai Engine WP6G125E22 for Earth-Moving Equipment

5 0 Reviews
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • WP6G125E22

  • weichai

发动机海报

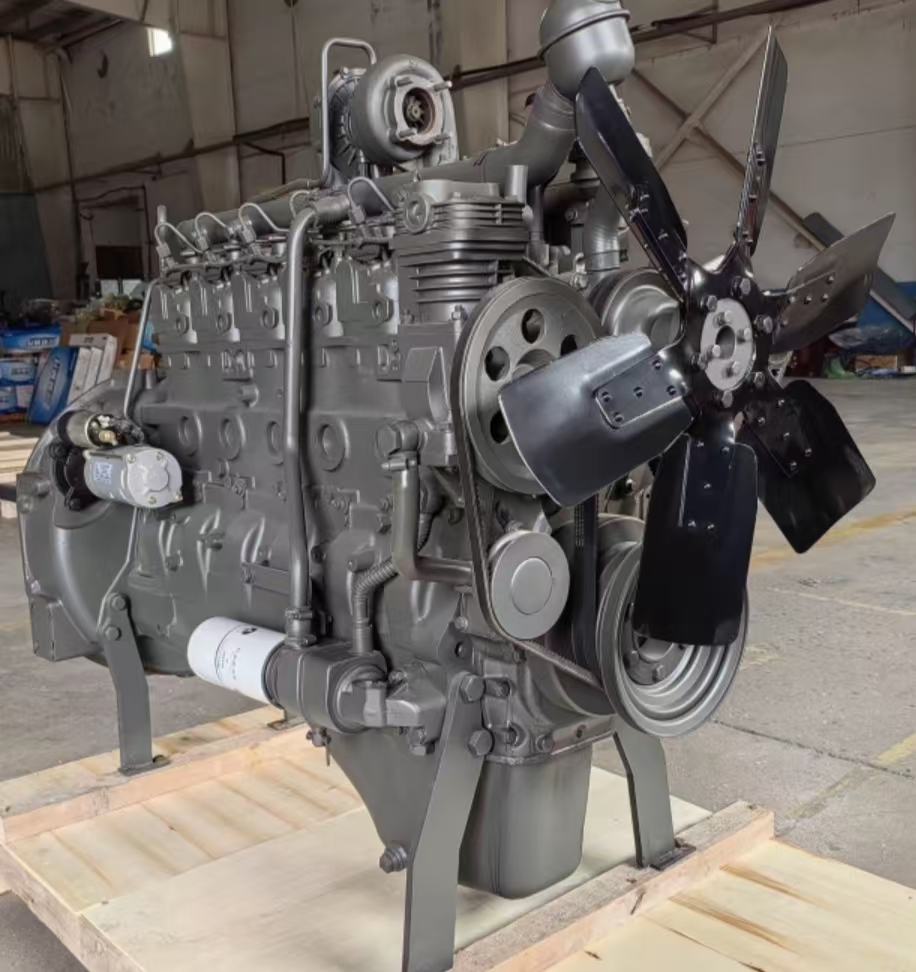

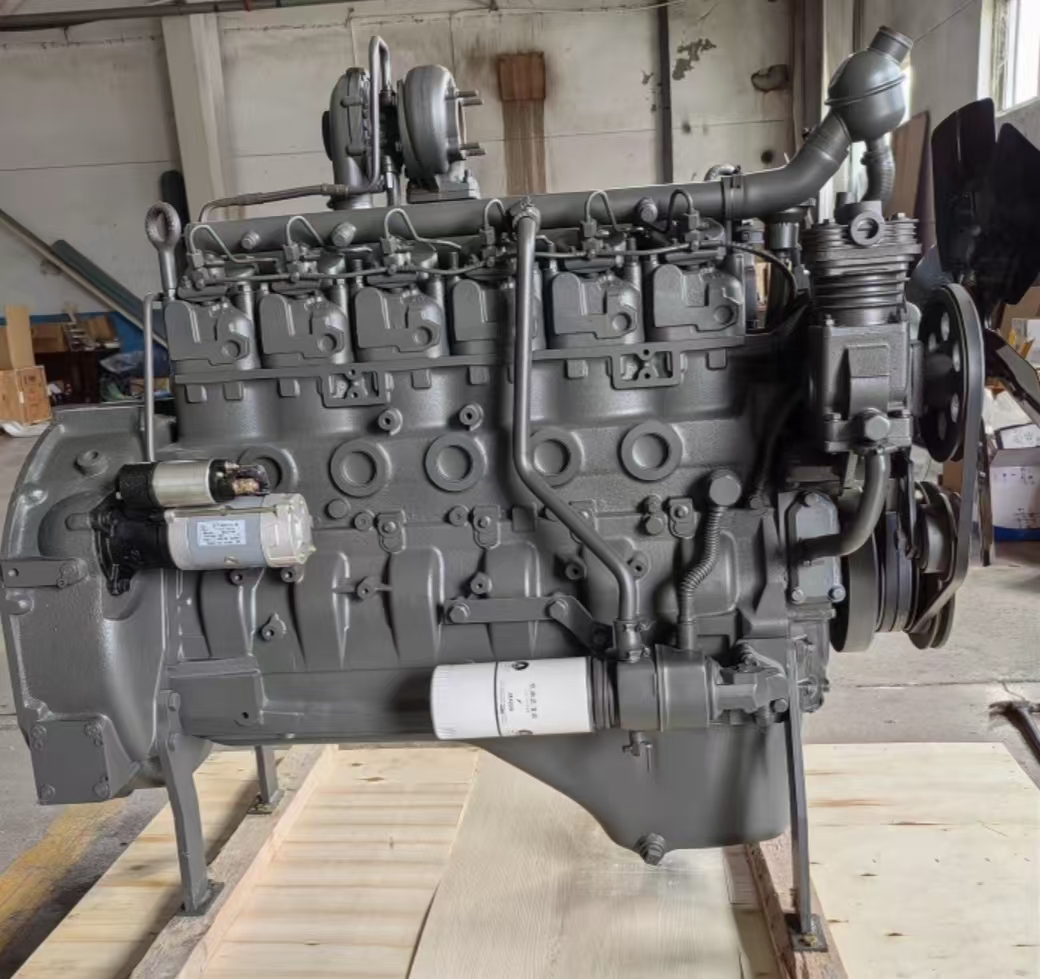

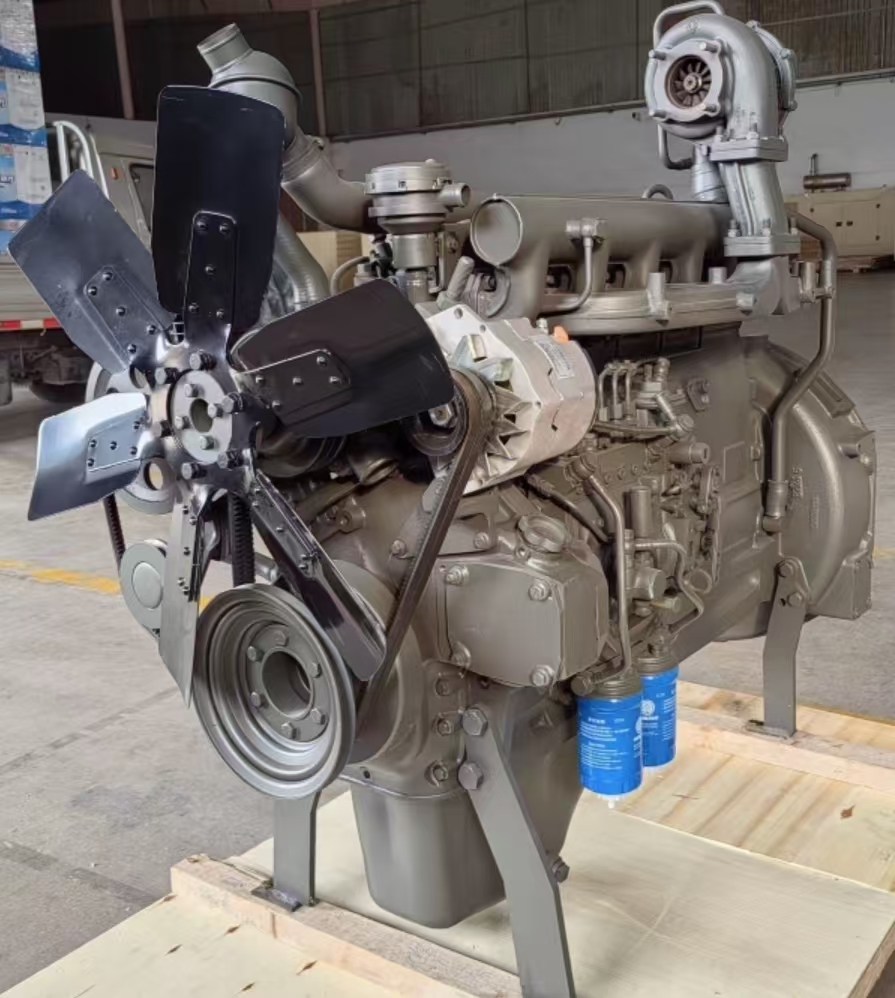

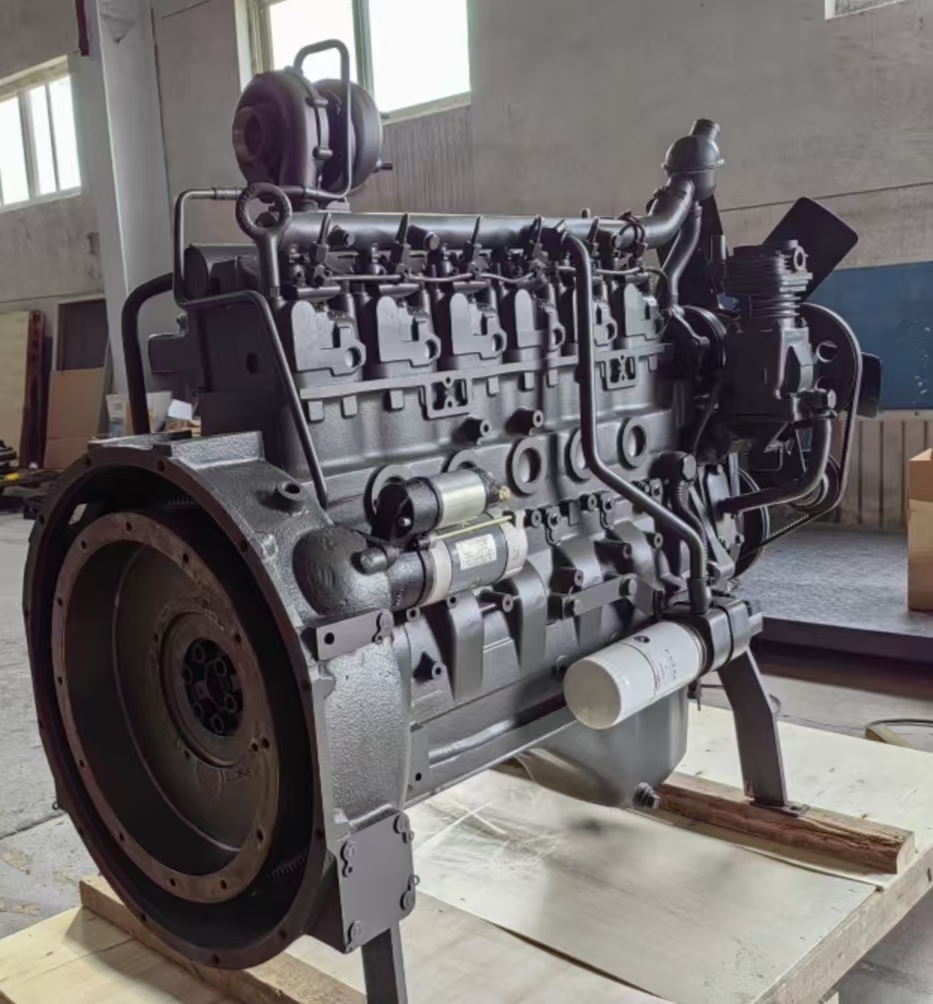

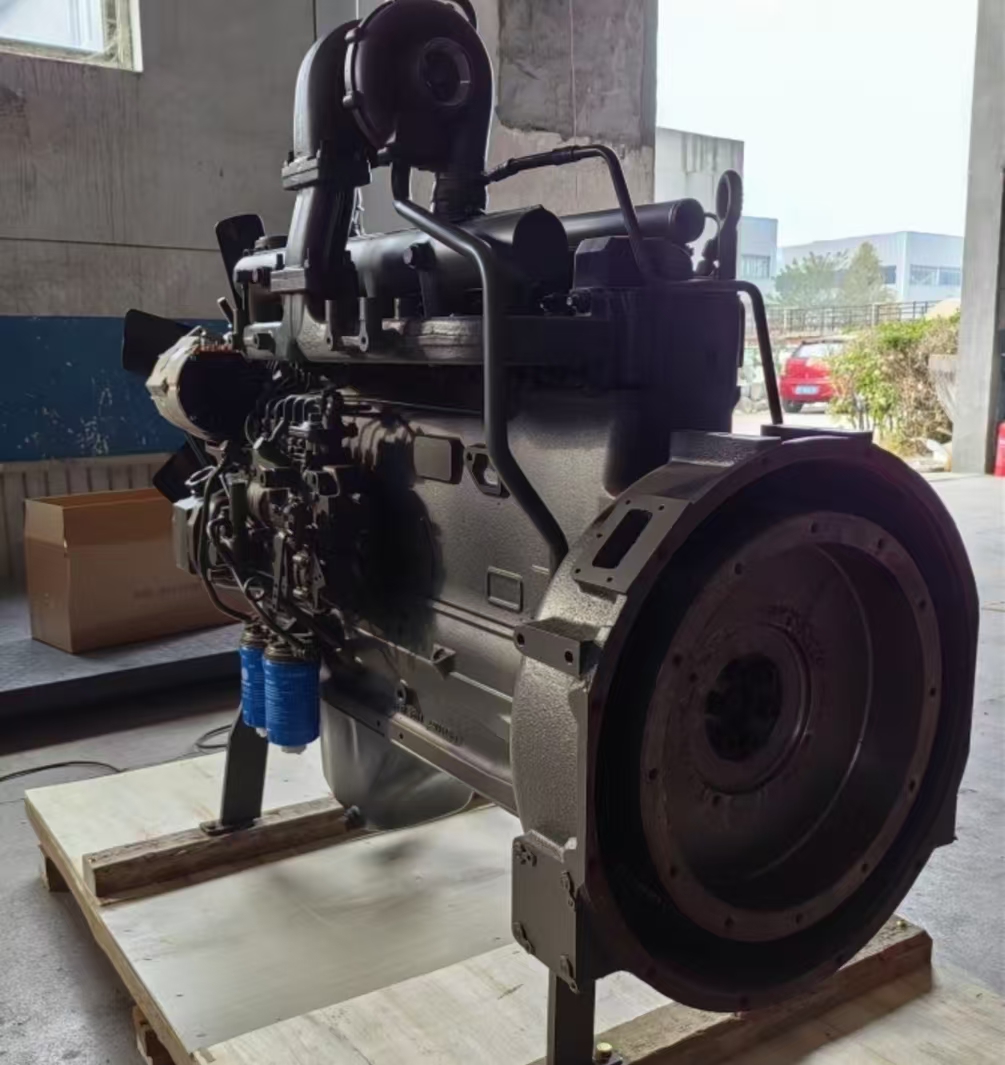

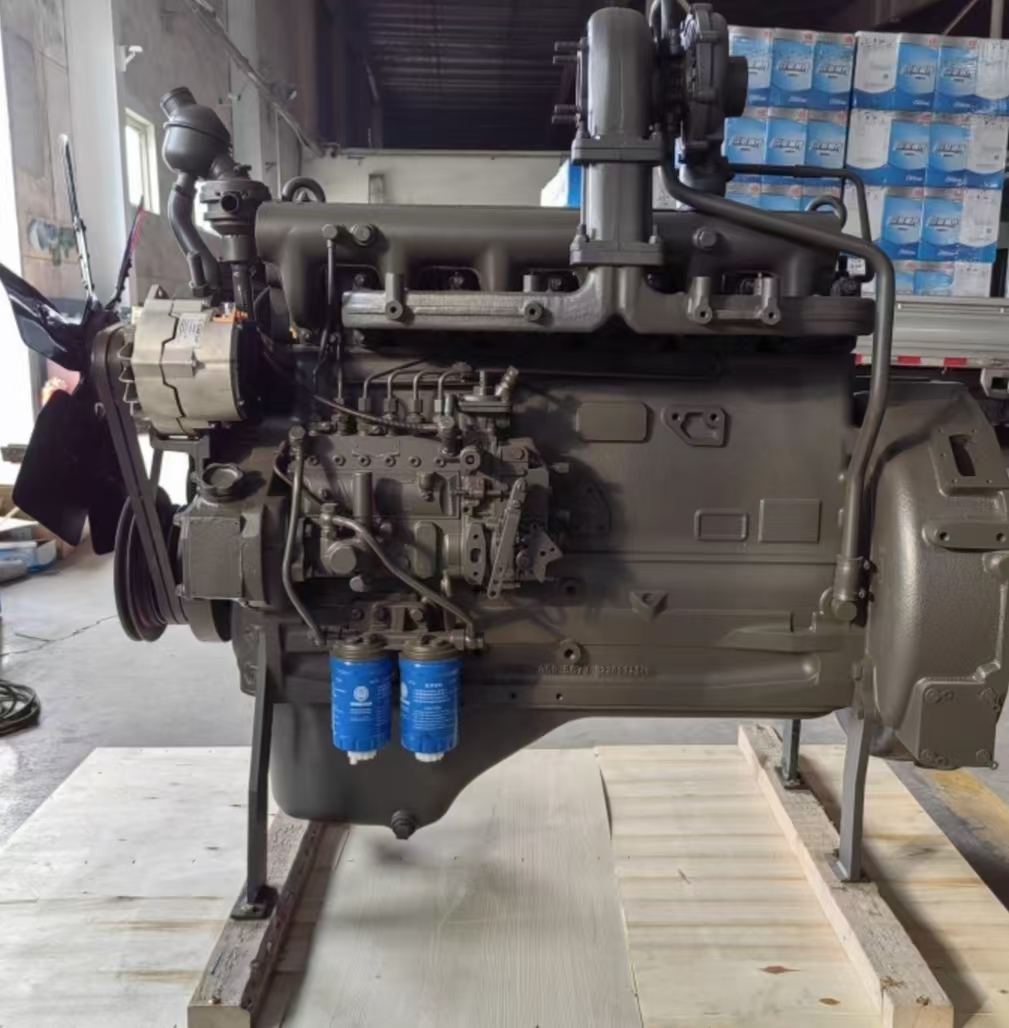

The Weichai WP6G125E22 is a robust and efficient 6-cylinder, in-line, 4-stroke diesel engine renowned for its exceptional durability, reliable power, and superior fuel economy . With a substantial 6.75-liter displacement and featuring turbocharged aspiration and water-cooling , this engine is engineered to deliver consistent performance in the most demanding construction and industrial environments . Its proven technology and robust construction make it a trusted power source for a wide range of heavy machinery .

Key Technical Specifications

For a quick overview, here are the core specifications of the WP6G125E22 engine:

Parameter Specification
Configuration In-line, 6-Cylinder, 4-Stroke
Aspiration Turbocharged
Displacement 6.75 L
Bore × Stroke 105 mm × 130 mm  (Note: 108 mm × 130 mm also listed )
Rated Power/Speed 92 kW (125 HP) @ 2200 rpm
Cooling System Water-Cooled
Emission Standard Euro II / Stage II  (Euro III also available )
Starting System Electric Start
Weight (Net) Approx. 636 kg - 875 kg (varies by configuration)
Note: Specifications like weight and dimensions can vary depending on the specific application configuration  . Refer to official technical data sheets for precise information.

Primary Applications & Equipment

The Weichai WP6G125E22 engine is built to be the powerhouse behind a range of heavy-duty equipment , including:

  • Construction Machinery: It is a key power source for wheel loaders (e.g., 3-ton and 5-ton models) and 30-50 forklifts .

  • Earth-Moving Equipment: This engine is also applied in bulldozers and excavators, providing the necessary torque for demanding tasks .

Core Technologies & Key Features

  • Efficient Turbocharging: The engine utilizes a turbocharger to force more air into the cylinders, significantly boosting power output and torque without increasing engine size, ensuring strong performance for demanding tasks .

  • Effective Water-Cooling System: The water-cooling system maintains optimal operating temperatures under heavy loads, ensuring consistent performance and protecting engine components .

  • Proven Reliability: Designed to withstand the rigors of heavy-duty use, this engine is known for its reliable operation in challenging environments .

Supplier Services

  • Warranty: Typically comes with a 1-year warranty .

  • Customization: Options for custom logos, packaging, and graphics are often available .

  • Shipping: Generally shipped via wooden crates from ports like Shanghai .
