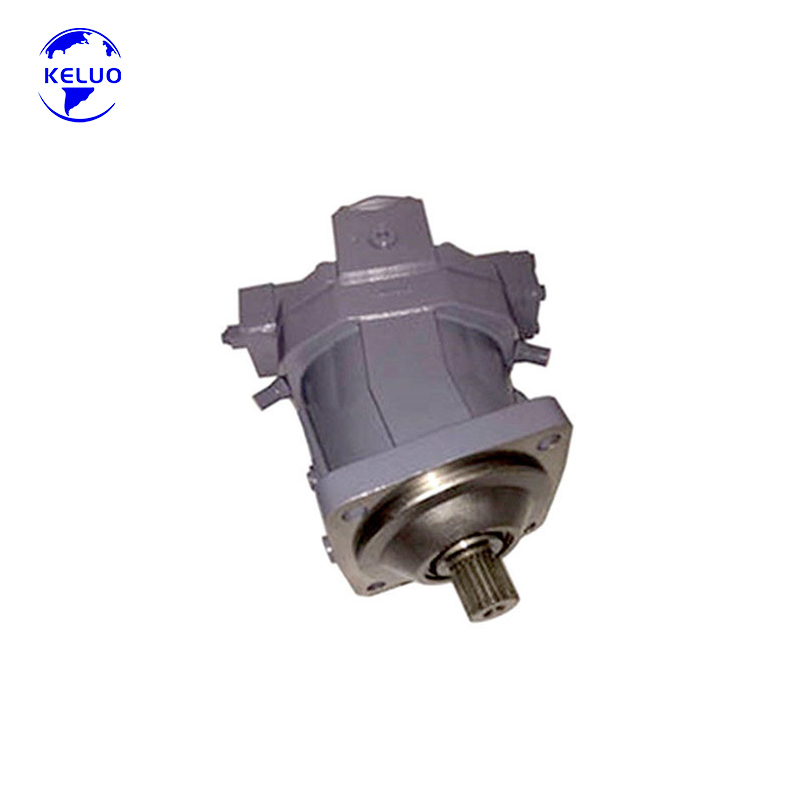

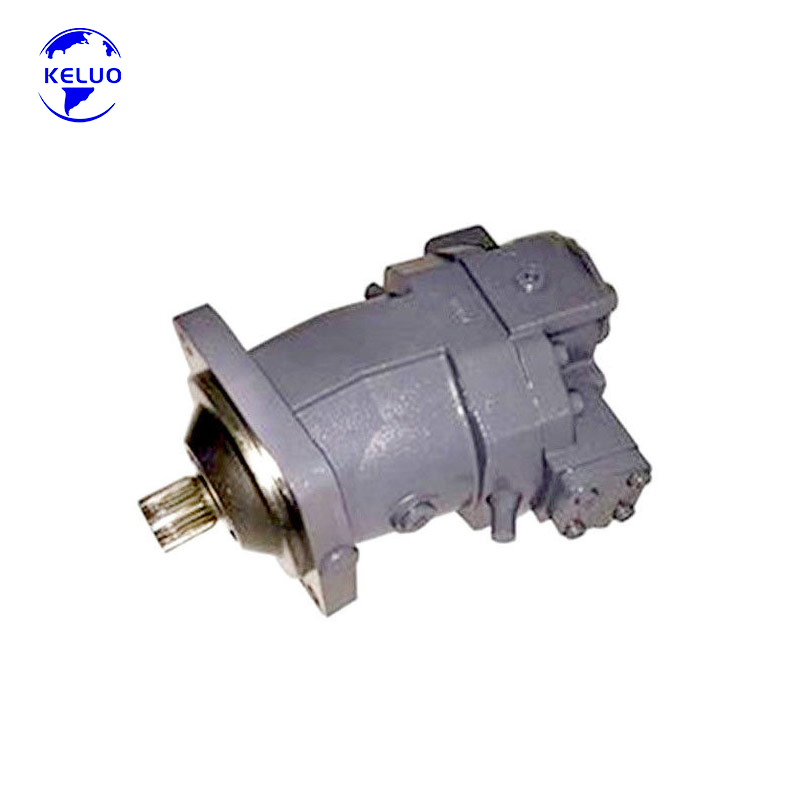

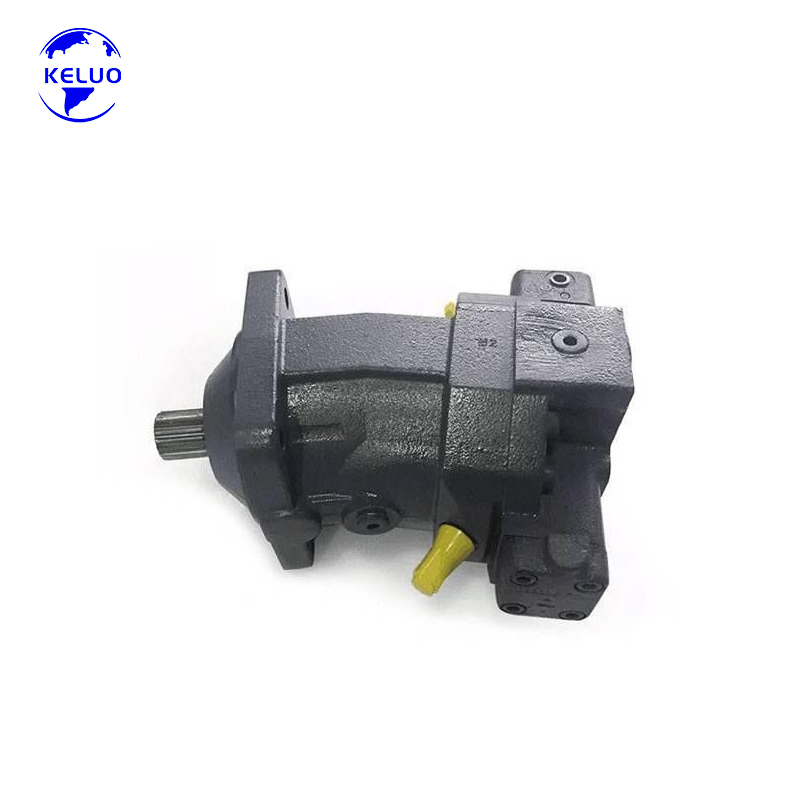

Heavy Duty A6VM200 Series 63 Variable Displacement Motor for Concrete Pump Trucks

Product Overview:
The A6VM200 is a high-performance bent-axis design axial piston motor from the renowned Rexroth A6VM series. Designed for both open and closed hydraulic circuits, this variable motor delivers exceptional power density, reliable starting characteristics, and smooth operation under extreme loads . With a displacement of 200 cc/rev and multiple control options, it provides precise, stepless speed and torque adjustment for demanding mobile and industrial applications. This unit is a direct, high-quality replacement solution for original Rexroth equipment .

Technical Specifications:

• Model: A6VM200

• Type: Bent-axis design, variable axial piston motor

• Displacement: 200 cm³/rev (continuously variable from Vg max to Vg min)

• Nominal Pressure: 350 bar

• Maximum Pressure: 400 - 450 bar (depending on series/version)

• Maximum Speed: Up to 2900 rpm at Vg max; up to 4600 rpm at reduced displacement

• Control Options: HD (hydraulic pilot control), HA (high-pressure automatic control), EP (electro-proportional), DA (speed-related), manual, and more

• Design: Suitable for open and closed circuits

• Mounting: SAE standard flange options available

• Weight: Approximately 80 kg

Core Features:

• Bent-Axis Design: The robust angled shaft and conical piston design ensure high starting torque, excellent efficiency, and resilience against shock loads. The drive shaft can withstand radial loads .

• Wide Control Range: Displacement can be adjusted steplessly from maximum down to Vg min = 0, offering a broad operational speed range without needing a gearbox. The wide control range enables the variable motor to satisfy requirements for both high speed and high torque .

• High Power Density: Compact and lightweight construction delivers maximum power output in a minimal installation space, providing an excellent power-to-weight ratio .

• Multiple Control Options: Large variety of controls available (HD/HA/EL/DA/MO) to suit specific application needs, allowing customization to various system requirements .

• Optional Integrated Valves: Compatible with optional flushing and boost pressure valves, or integrated/attached counterbalance valves for enhanced functionality and load control .

• Durability: Engineered for long service life with robust bearings, good starting characteristics, and low inertia. Features long-life bearing systems and low noise operation .

• High-Speed Capability: Approved for very high-speed continuous operation due to advanced seal design around piston rings and cylinder block .

Main Applications (Suitable Equipment):
The A6VM200 is the ideal drive component for equipment requiring variable speed and constant torque or constant power. It is widely used in:

1. Rotary Drilling Rigs & Foundation Equipment:

• Power head drives for large rotary drilling rigs

• Rotary drives for piling rigs and coal drilling rigs

2. Crane & Heavy Lifting Equipment:

• Winch drives (hoisting and slewing) for medium to large crawler cranes and truck cranes

3. Construction Machinery:

• Travel drives for heavy compactors, rollers, and crawler dozers

• Swing drives for large excavators and cranes

4. Marine & Offshore:

• Marine hydraulic motors for shipboard equipment and winch systems

5. Mining & Tunneling:

• Drives for mining machinery, coal mining equipment, and tunnel boring machines

6. Specialty Applications:

• Hydraulic drives for flatbed vehicles and pavement machinery
