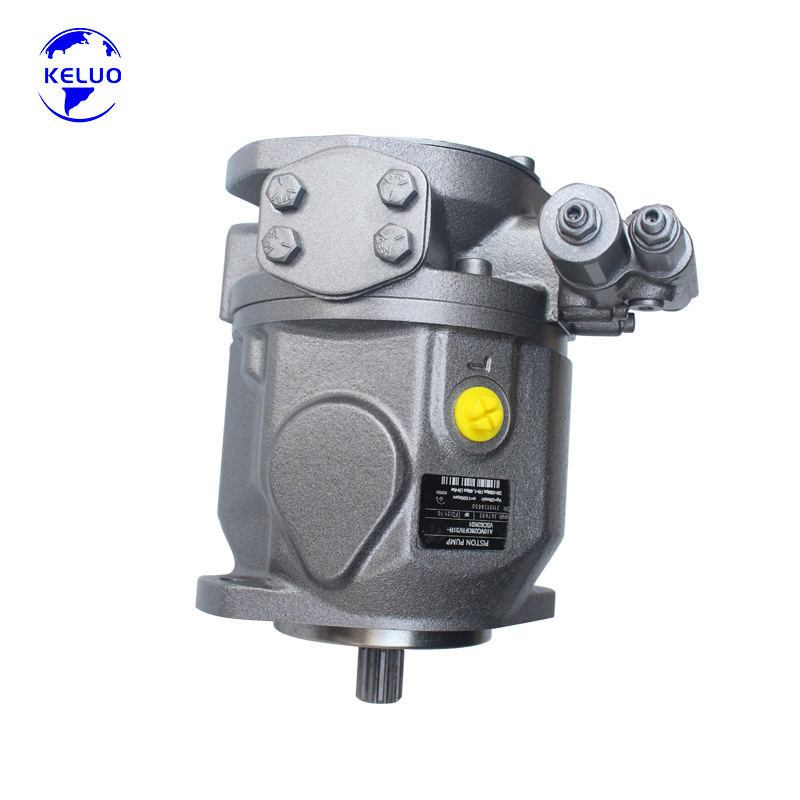

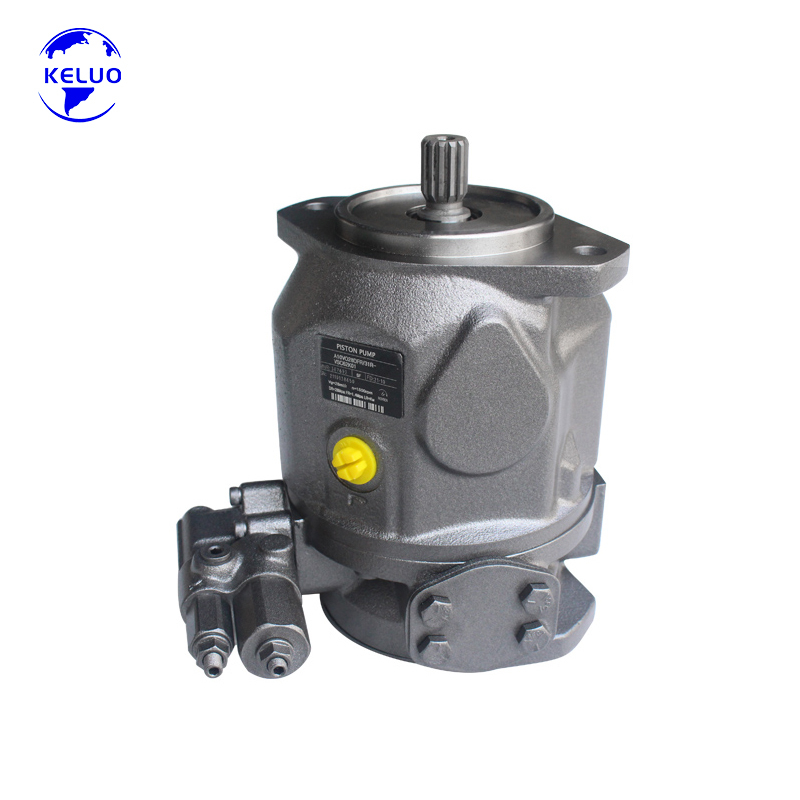

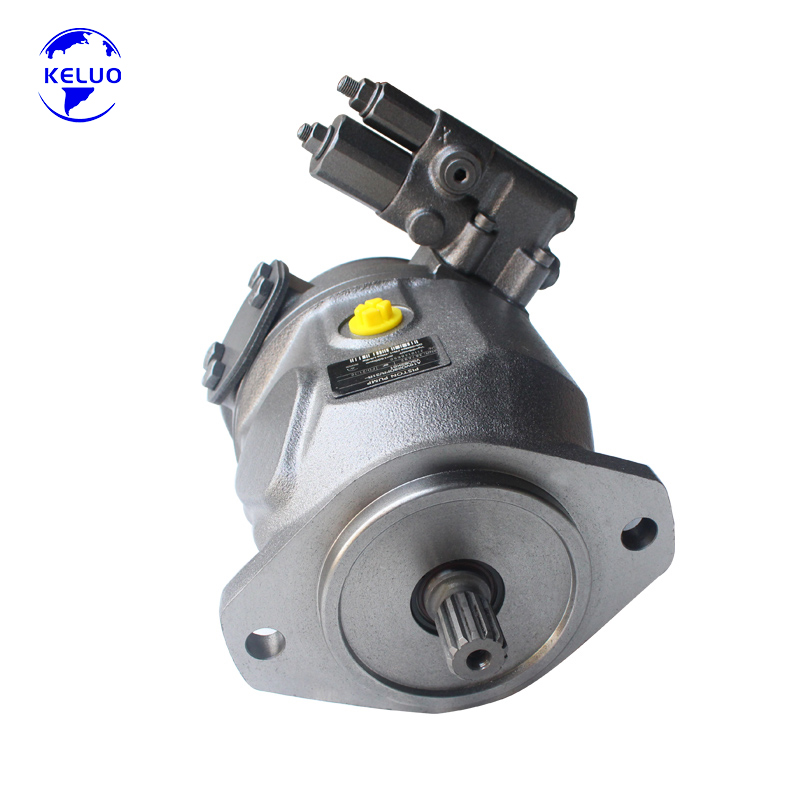

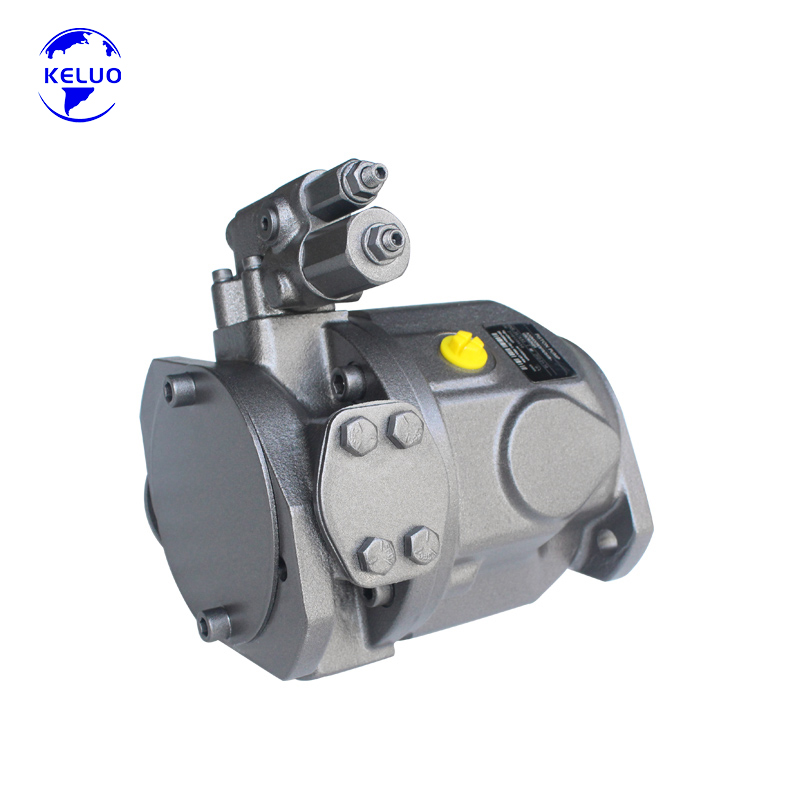

Rexroth Hydraulic Piston Pump A10 A10VO A10VO28 for Die Casting Machine

Product Overview:
The A10VO28 is a high-performance swashplate design axial piston pump from the renowned Rexroth A10V series. Specifically engineered for open circuit hydraulic systems, this variable pump delivers exceptional reliability, efficient operation, and precise control in a compact footprint . With a displacement of 28 cm³/rev and multiple advanced control options, it provides stepless flow adjustment for a wide range of medium-pressure industrial and mobile applications . This unit is a direct, high-quality replacement solution for original Rexroth equipment.

Technical Specifications:

• Model: A10VO28

• Type: Swashplate design, variable axial piston pump

• Displacement: 28 cm³/rev (steplessly variable from Vg max to Vg min)

• Nominal Pressure: 280 bar (continuous operation)

• Maximum Pressure: 350 bar (peak)

• Maximum Speed: Up to 3600 rpm

• Flow Rate: Up to 84 L/min (at max speed)

• Control Options: DR (pressure control), DFR/DFR1 (pressure/flow control - load sensing), DFLR (power control), ED (electro-proportional), and more

• Design: For open circuit hydraulic systems

• Mounting Flange: SAE J744 / ISO 3019-1 standard

• Port Connection: SAE J518 flange ports

• Weight: Approximately 15 kg

• Temperature Range: -20°C to +80°C

Core Features:

• Robust Swashplate Design: The proven swashplate design ensures reliable operation, excellent efficiency, and long service life in open circuit applications .

• Multiple Advanced Control Options: Wide variety of controls available (DR/DFR/DFR1/DFLR/ED) to suit specific application needs, allowing precise customization to various system requirements .

• Stepless Variable Displacement: Flow is proportional to drive speed and displacement, adjustable steplessly from maximum down to zero via the swashplate angle, offering precise flow matching to reduce energy consumption and heat generation .

• Excellent Suction Characteristics: Superior self-priming performance ensures reliable operation even in demanding conditions and at higher speeds .

• Through-Drive Capability: Universal through-drive design allows mounting of additional pumps up to the same nominal size for multi-circuit systems, enabling flexible and space-saving system configurations .

• Low Noise Operation: Optimized design with spherical porting ensures low noise levels during operation, contributing to a more comfortable working environment .

• Short Control Response Times: Controls with rapid response times ensure precise operations and better handling in dynamic system conditions .

• Durability: Robust bearing system and high-quality materials (cast iron construction) ensure long service life in demanding continuous operation . The drive shaft can withstand both axial and radial loads .

• Dual Case Drain Ports: Two case drain ports facilitate maintenance and fluid management within the hydraulic system .

• High Power-to-Weight Ratio: Compact construction delivers impressive power density in a lightweight package .

Main Applications (Suitable Equipment):
The A10VO28 is widely recognized as a versatile and reliable hydraulic power unit for medium-pressure applications. It is extensively used in:

1. Construction Machinery:

• Excavators (small to medium) - auxiliary and main pump functions

• Concrete pump trucks - auxiliary boom control systems

• Road rollers and compaction equipment

• Skid steer loaders and compact loaders

• Crawler dozers - auxiliary functions

2. Material Handling Equipment:

• Forklifts (counterbalance and reach trucks)

• Telehandlers and rough-terrain forklifts

• Aerial work platforms (scissor lifts, boom lifts)

• Mobile cranes - auxiliary functions

3. Industrial Machinery:

• Machine tools (hydraulic feed systems, clamping systems)

• Injection molding machines - auxiliary functions

• Hydraulic presses (C-frame, bench presses)

• General industrial hydraulic power units

4. Agricultural Machinery:

• Tractors (auxiliary hydraulic functions)

• Harvesters and agricultural implements

• Sprayers and fertilizer applicators

5. Metallurgical Industry:

• Steel mill equipment (shearing machines, bending rolls)

• Forging manipulators and handling equipment

6. Mining Machinery:

• Small mining equipment and rock drills - auxiliary systems

7. Marine & Offshore:

• Small ship hydraulic systems (deck machinery, winches)

8. Automotive Industry:

• Car lifts and workshop equipment

• Test benches and manufacturing jigs
