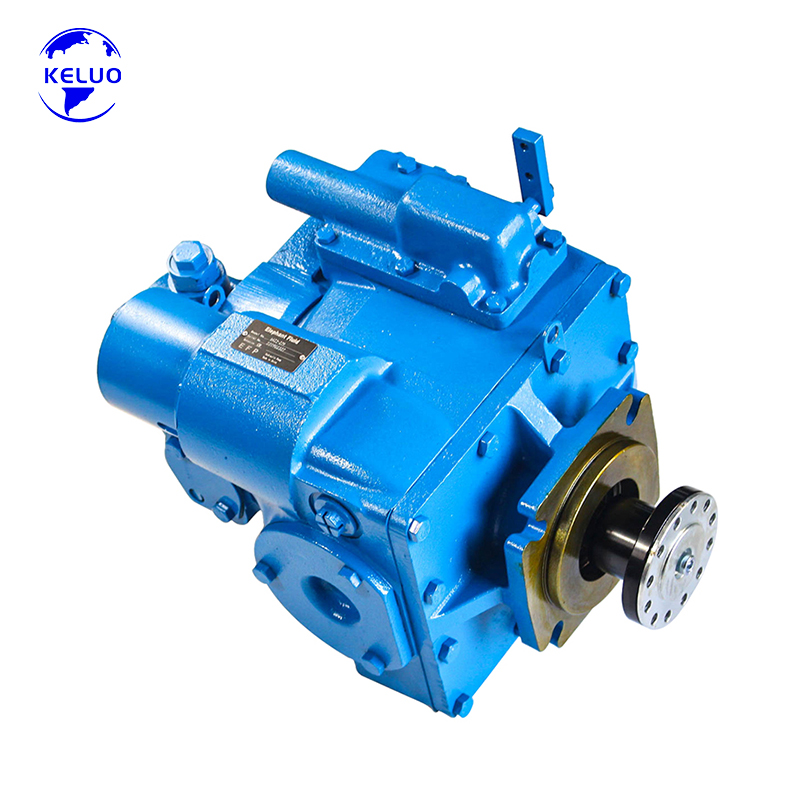

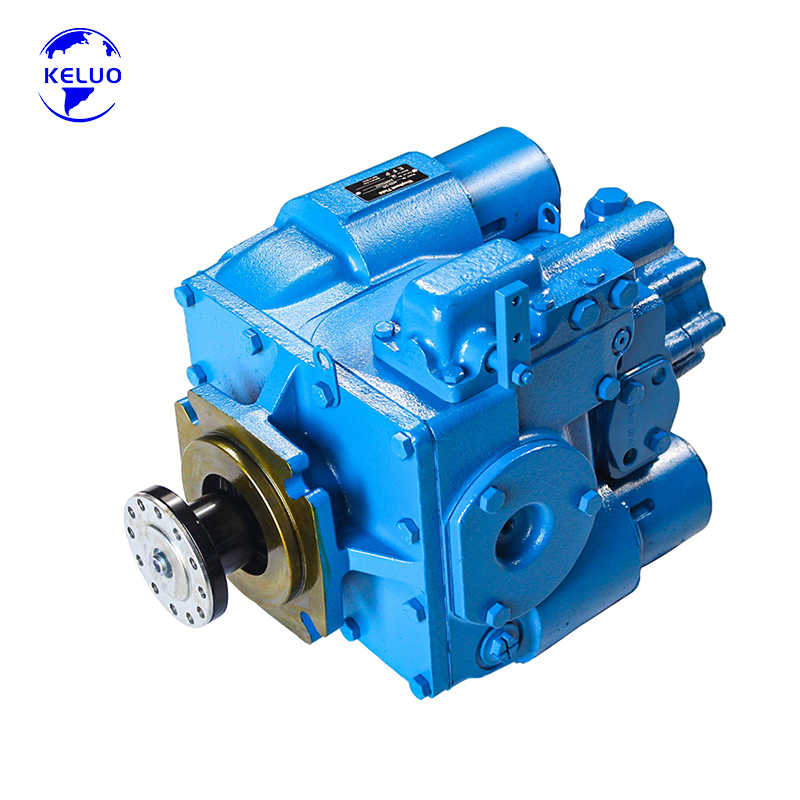

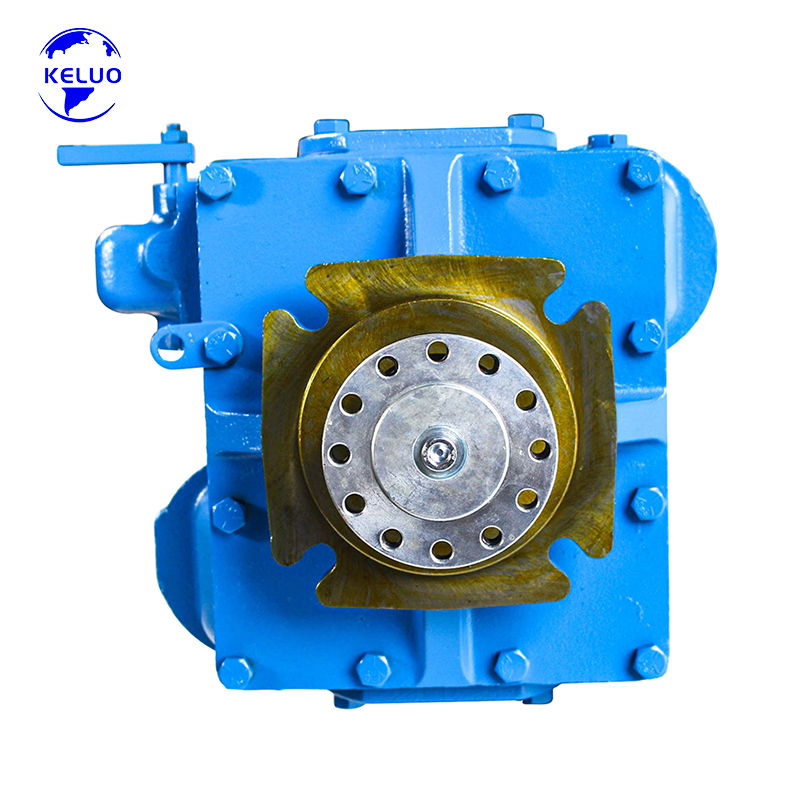

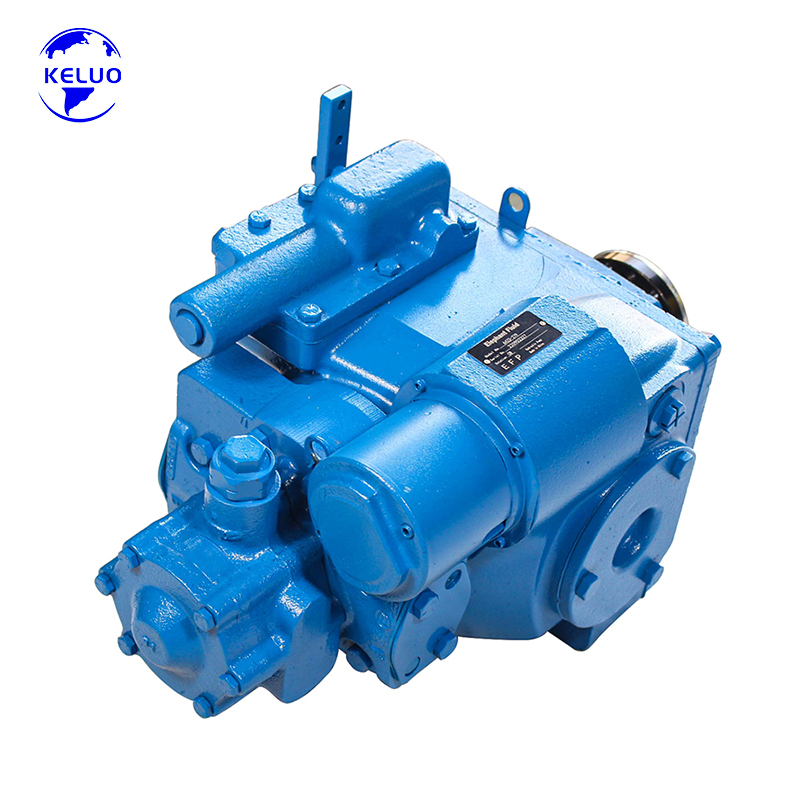

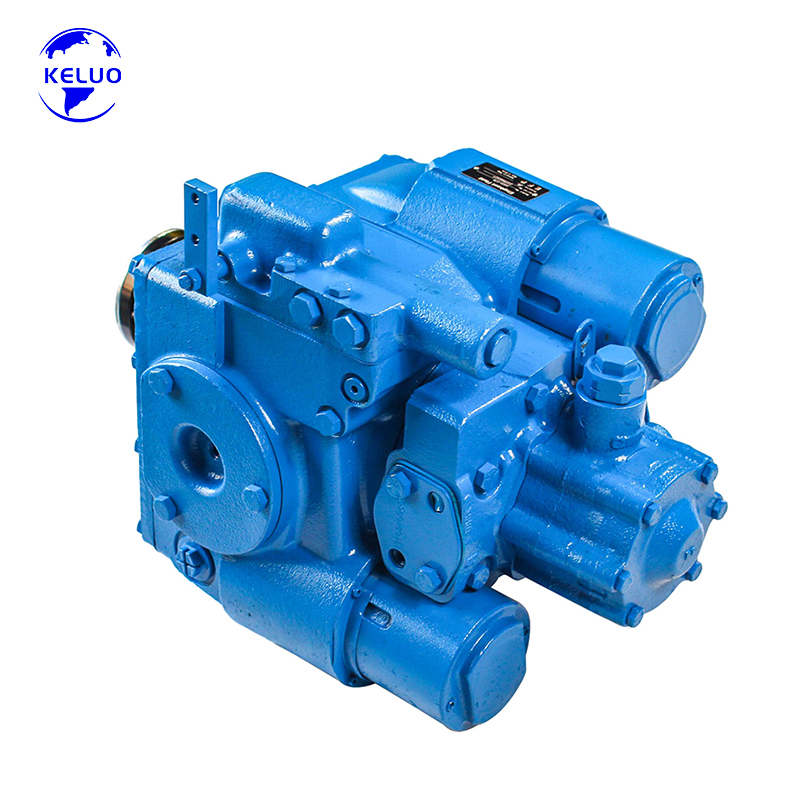

Eaton 6423-279 Heavy-Duty Variable Displacement Piston Pump for Concrete Mixer Trucks

Product Overview:
The 6423-279 is a high-performance heavy-duty variable displacement axial piston pump from the renowned Eaton (now Danfoss) ACA series . Specifically engineered for demanding open and closed circuit hydrostatic systems, this variable pump delivers exceptional reliability, efficient operation, and precise control under extreme loads . With a displacement of 105.4 cm³/rev and robust construction, it provides stepless flow adjustment for mobile and industrial applications requiring consistent power and durability. This unit is a direct, high-quality replacement solution for original Eaton equipment, widely used in concrete mixer trucks and heavy machinery .

Technical Specifications:

• Model Number: 6423-279

• Full Model Code: ACA642337R0B00MAB000000030D00000B

• Product Series: ACA Series - Hydrostatic Heavy-Duty Variable Pump

• Type: Variable displacement axial piston pump

• Displacement: 105.4 cm³/rev [6.431 in³/rev] at 18 degrees

• Charge Pump Displacement: 21.0 cm³/rev [1.28 in³/rev]

• Nominal Pressure: 250 bar (3625 psi)

• Maximum Operating Pressure: Up to 250 bar continuous

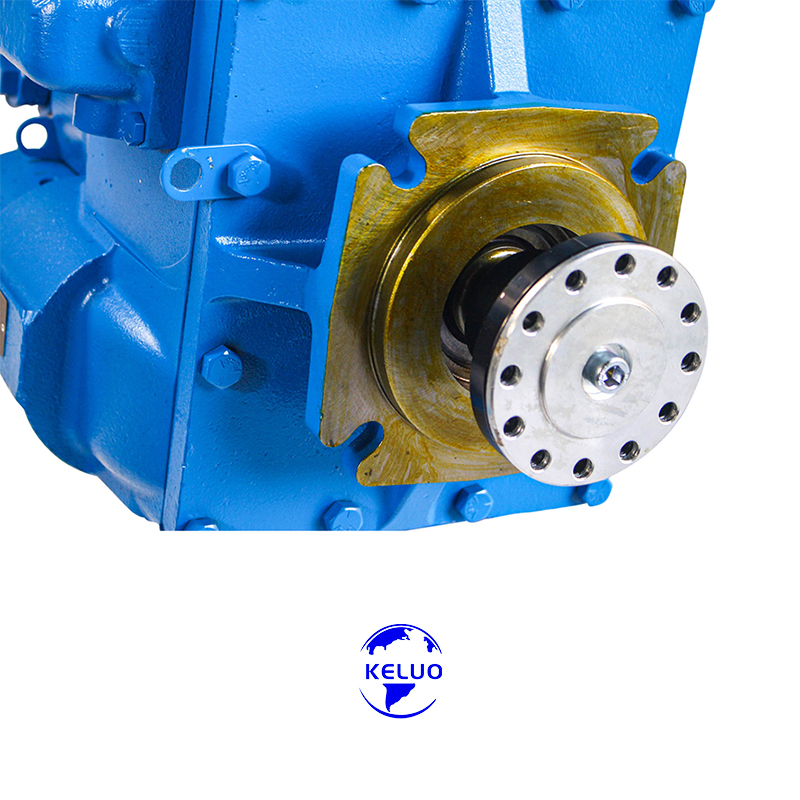

• Input Shaft: 23-tooth 16/32 pitch spline with M10 x 1.5 threaded hole (fits models 33-54)

• Input Rotation: R - Clockwise (Right Hand)

• Control Type: MA - Manual control

• Main Ports: [1.00] - Code 62, SAE J518 standard

• Valve Plate: Standard (V-groove)

• Charge Pressure Relief Valve Setting: 15 bar [220 lbf/in²] - reference

• Material: Robust cast iron construction with hardened steel components

• Weight: Approximately 60-90 kg (depending on configuration)

• Paint: Primer Blue (standard)

Core Features:

• Heavy-Duty Variable Displacement Design: The ACA series pump features a robust swashplate mechanism that converts rotary motion into reciprocating piston motion, enabling precise control over fluid flow rate and pressure while minimizing energy losses .

• Integrated Charge Pump: Includes a built-in 21.0 cm³/rev charge pump with pressure relief valve set at 15 bar, ensuring reliable system charging and cooling for closed-circuit applications .

• High-Pressure Capability: Delivers up to 250 bar (3625 psi) operating pressure, meeting demanding mobile and industrial application requirements for significant force and power .

• Durable Cast Iron Construction: Engineered with a cylinder block and valve plate made of robust cast iron, and pistons constructed from hardened steel or wear-resistant alloys, providing excellent durability and resistance to wear in challenging environments .

• Manual Control (MA): Features straightforward manual control for reliable, repeatable operation in applications where simple, direct pump adjustment is required .

• Standardized Mounting: SAE J518 code 62 main ports and SAE spline shaft ensure compatibility with industry-standard hydraulic systems and easy integration .

• Wide Fluid Compatibility: Capable of operating with various hydraulic fluids, including mineral oils, synthetic oils, and biodegradable fluids, offering flexibility for different application requirements and environmental considerations .

• Proven Reliability: Designed for long service life with reduced maintenance requirements and downtime, making it ideal for continuous-duty applications .

Main Applications (Suitable Equipment):
The 6423-279 is widely recognized as the specialized hydraulic power unit for concrete transport and heavy industrial machinery. It is extensively used in:

1. Concrete Mixer Trucks (Primary Application):

• Main hydraulic pump for concrete mixer trucks (6-18 m³ capacity) - drives the mixer drum rotation

• Replacement pump for Eaton 6423 series in concrete transport applications

• Concrete mixing drum hydraulic systems - pairs with motors such as 6433-042

• Square concrete truck mixer parts and hydraulic systems

2. Construction Machinery:

• Heavy-duty mobile equipment requiring reliable hydraulic power

• Industrial lifting equipment and material handlers

• Crawler drills and foundation equipment

3. Industrial Applications:

• Hydraulic presses requiring constant, high-pressure flow

• Industrial machinery and heavy equipment drives

• Hydraulic power units for continuous industrial operations

4. Specialty Applications:

• Marine and offshore hydraulic systems

• Mining equipment and heavy industrial machinery

• Oil and gas field equipment

• Wastewater treatment and industrial processing equipment
