A6VM107
Product Overview:

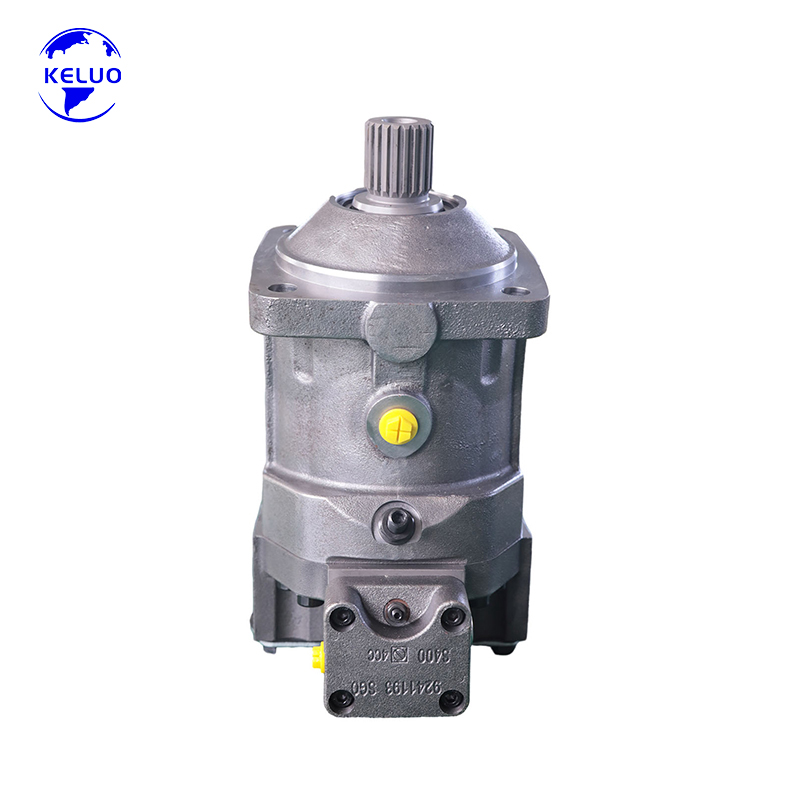

The A6VM107 is a high-performance bent-axis design axial piston motor from the renowned Rexroth A6VM series. Designed for both open and closed circuit hydrostatic drives, this variable motor delivers exceptional power density, reliable starting characteristics, and smooth operation under extreme loads . With a displacement of 107 cm³/rev and multiple advanced control options, it provides stepless, precise speed and torque adjustment for demanding mobile and industrial applications . This unit is a direct, high-quality replacement solution for original Rexroth equipment.
Technical Specifications:
| Parameter | Value |
|---|---|
| Model | A6VM107 |
| Type | Bent-axis design, variable axial piston motor |
| Displacement | 107 cm³/rev (steplessly variable from Vg max to Vg min) |
| Nominal Pressure | 400 bar (5800 psi) |
| Maximum Pressure | 450 bar (6500 psi) |
| Maximum Speed (Vg max) | 3500 rpm |
| Maximum Speed (Reduced displacement) | Up to 5600 rpm |
| Control Options | HD (hydraulic pilot), HA (high-pressure automatic), EP (electro-proportional), DA (speed-related), manual |
| Design | Suitable for open and closed circuits |
| Mounting Flange | SAE / ISO 3019-1 standard |
| Port Connection | SAE flange ports |
| Weight | Approximately 48 kg |
| Material | Robust cast iron construction with tapered piston design |
Core Features:
Bent-Axis Design: The robust angled shaft and conical piston design ensure high starting torque, excellent efficiency (up to 92% volumetric efficiency), and resilience against shock loads. The drive shaft can withstand radial loads .
Wide Control Range: Displacement can be adjusted steplessly from maximum down to Vg min = 0, offering a broad operational speed range without needing a gearbox. This enables the motor to satisfy requirements for both high speed and high torque .
Multiple Control Options: Large variety of controls available (HD/HA/EL/DA/MO) to suit specific application needs, allowing customization to various system requirements .
High Power Density: Compact and lightweight construction delivers maximum power output in a minimal installation space, providing an excellent power-to-weight ratio .
Optional Integrated Valves: Compatible with optional flushing and boost pressure valves, or integrated/attached counterbalance valves for enhanced functionality and load control .
Durability: Engineered for long service life with robust bearings, good starting characteristics, and low inertia. Features a ball-contact distribution plate that automatically centers during rotation for high efficiency and low noise .
High-Speed Capability: Approved for very high-speed continuous operation due to advanced seal design around piston rings and cylinder block .
Main Applications (Suitable Equipment):
The A6VM107 is the ideal drive component for equipment requiring variable speed and constant torque or constant power. It is widely used in:
Rotary Drilling Rigs & Foundation Equipment:
Power head drives for core drilling rigs and rotary drilling rigs
Rotary drives for piling rigs
Construction Machinery:
Travel drives for compactors, rollers, and crawler dozers
Swing drives for medium-sized excavators and cranes
Track drives for drilling rigs and rotary drills
Crane & Material Handling:
Winch drives (hoisting and slewing) for mobile cranes (e.g., Zoomlion, XCMG, Sany truck cranes)
Hoisting and slewing drives for mobile cranes and material handlers
Marine & Offshore:
Marine hydraulic motors for shipboard equipment, winch systems
Mobile Machinery:
Propulsion drives for wheeled excavators and mobile equipment
Industrial Applications:
Drives for conveyors and heavy feeders requiring variable speed control
Mining & Tunneling:
Drives for mining machinery and tunnel boring equipment
